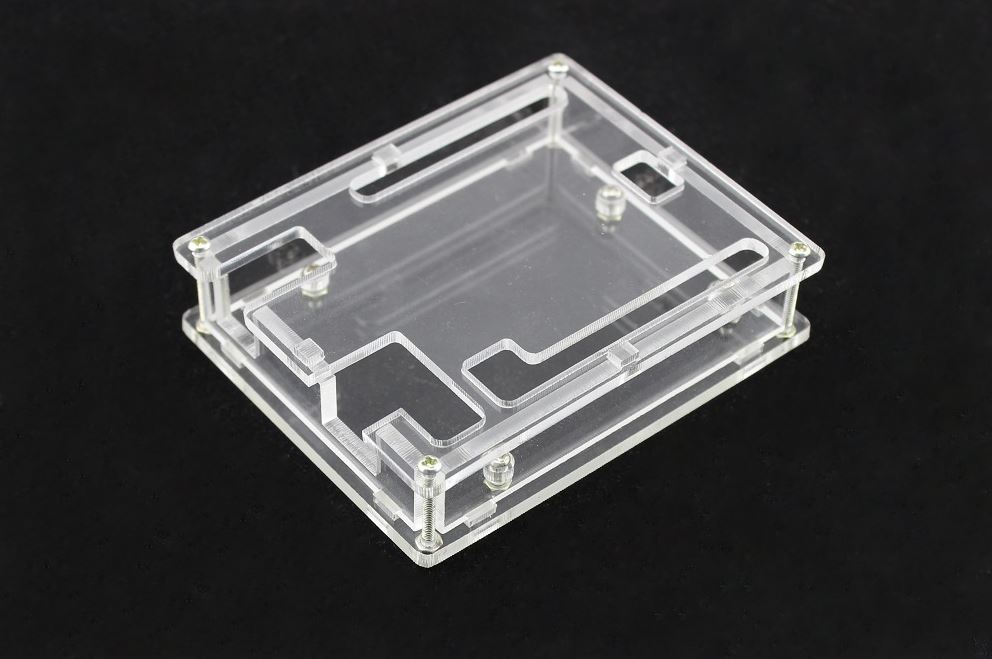

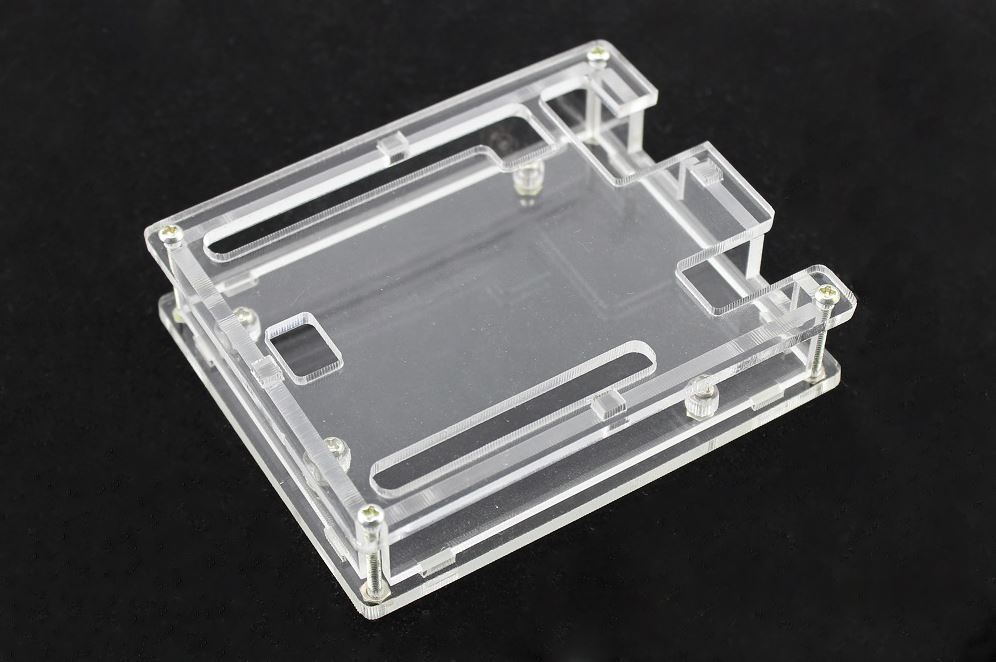

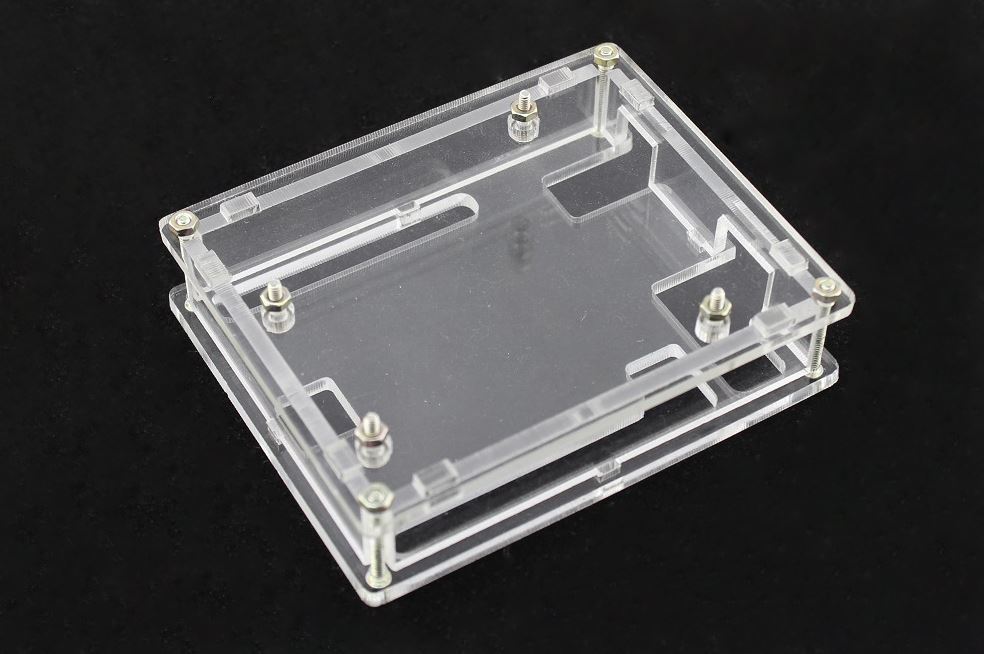

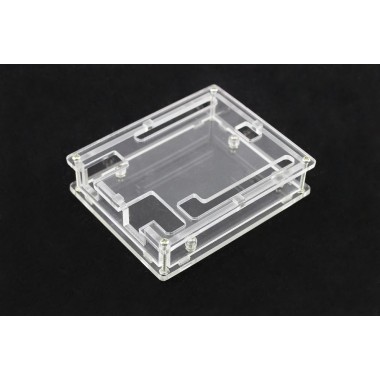

Acrylic Enclosure for Arduino UNO R3 - Transparent
Gabinete acrílico transparente para Arduino UNO R3.
COD: EASC01038A
Peso: 0.045 Kg
Disponibilidad: Sin Stock
ARS 5278.00
El producto no está disponible para la venta en este momento
Características
This product is protective case of Arduino UNO R3, fastened by screws. It is made by high grade acryl, which provides excellent protection, with fashion appearance. This is unique design provides easy connection to other components.
Installation Drawing of Arduino UNO R3 Demoboard Shell

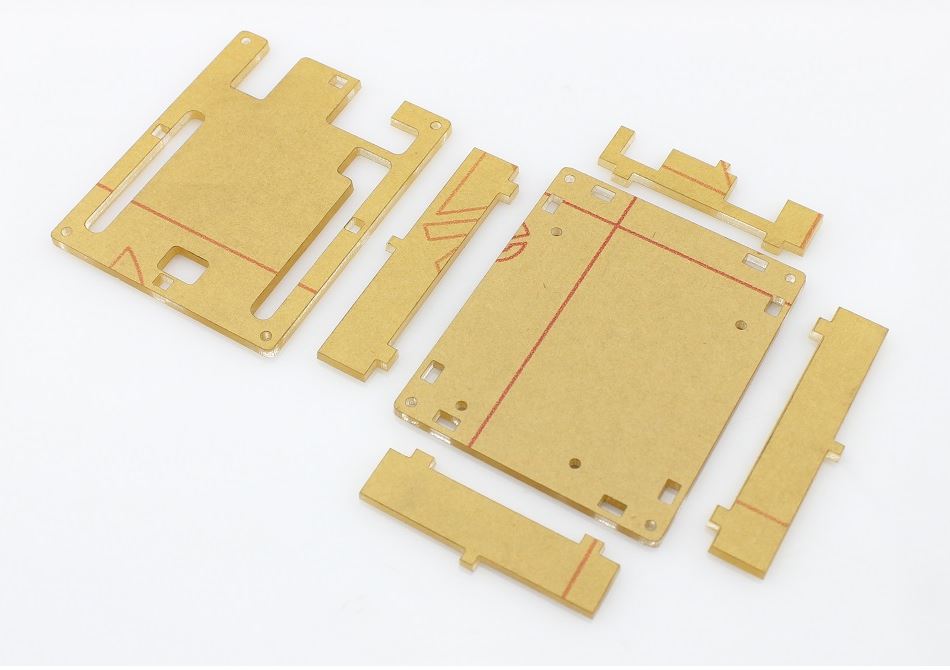

1. Tear off the protective film on the shell surface.
2. Install board 2 on board 1.
3. Install the demoboard to 1 with four prices of M2*10 screws and fix the middle parts with transparent washers.
4. Then, install board 3 ,4, 5 accordingly.
5. Lastly, install board 6, and fix it with M2*20 screws.
6. Attention: Shall not fix the crews with excessive strength to avoid damages.
