HDMI Interface 5 Inch 800x480 TFT Display

HDMI Interface 5 Inch 800x480 TFT Display

Display Táctil TFT de 5" HDMI, diseñado para Raspberry Pi.

COD: ERPA05010R

Peso: 0.200 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 93483.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

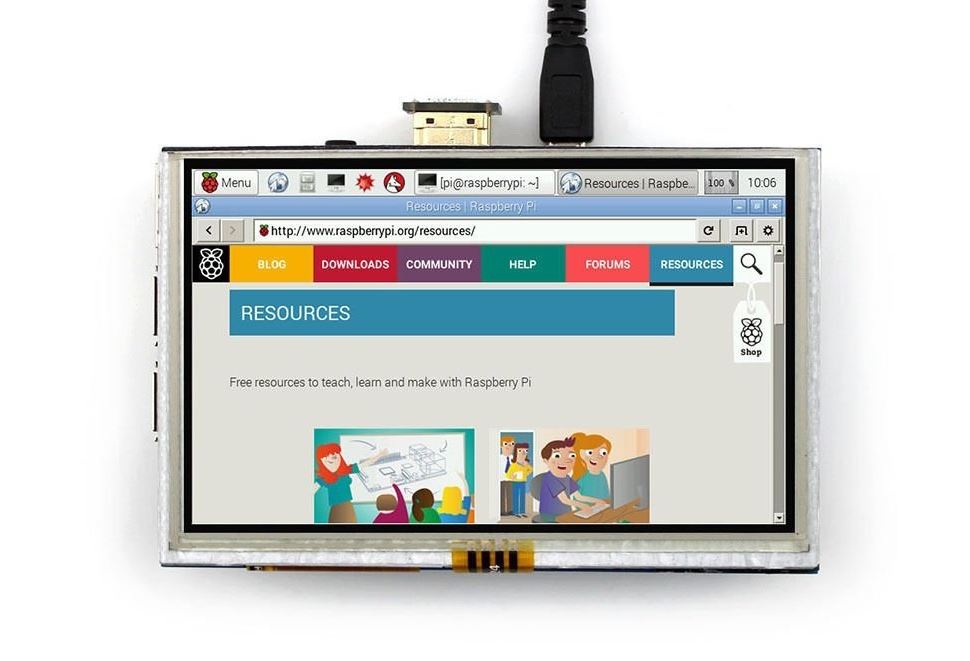

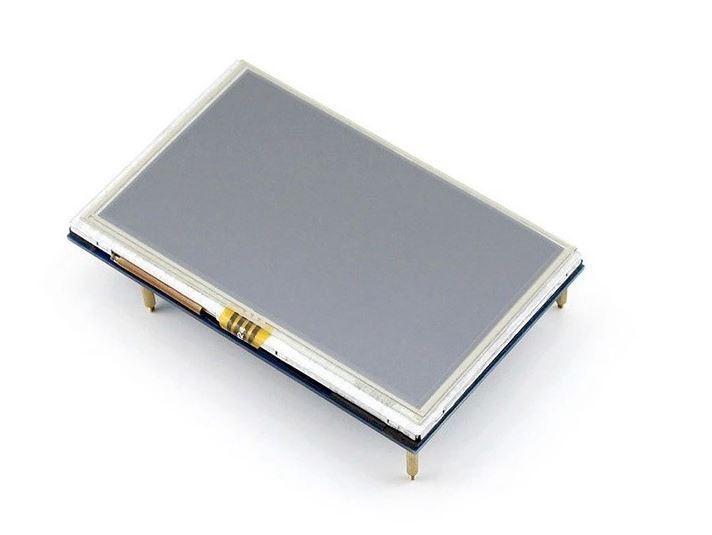

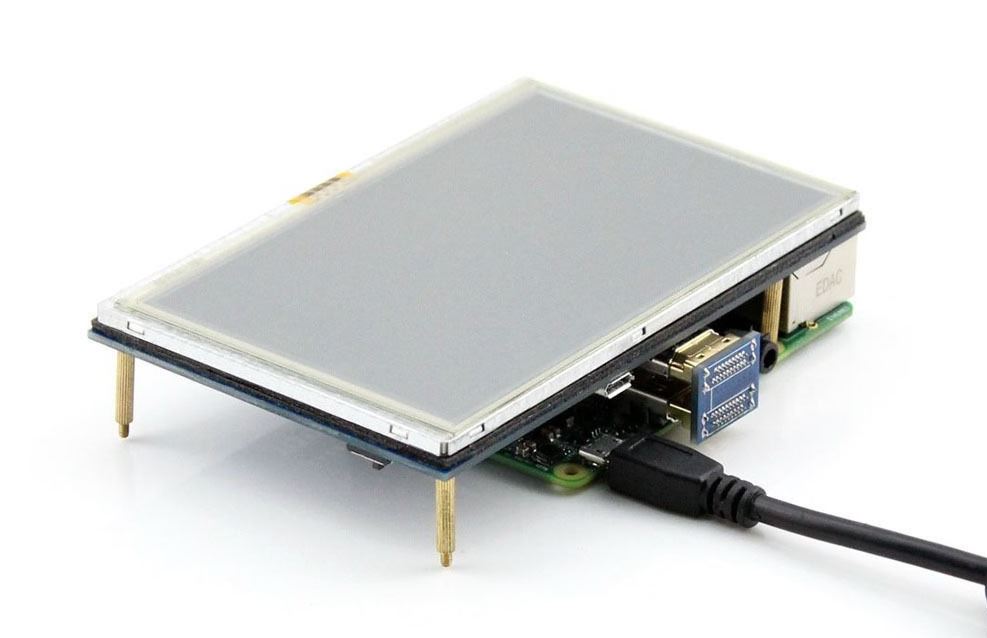

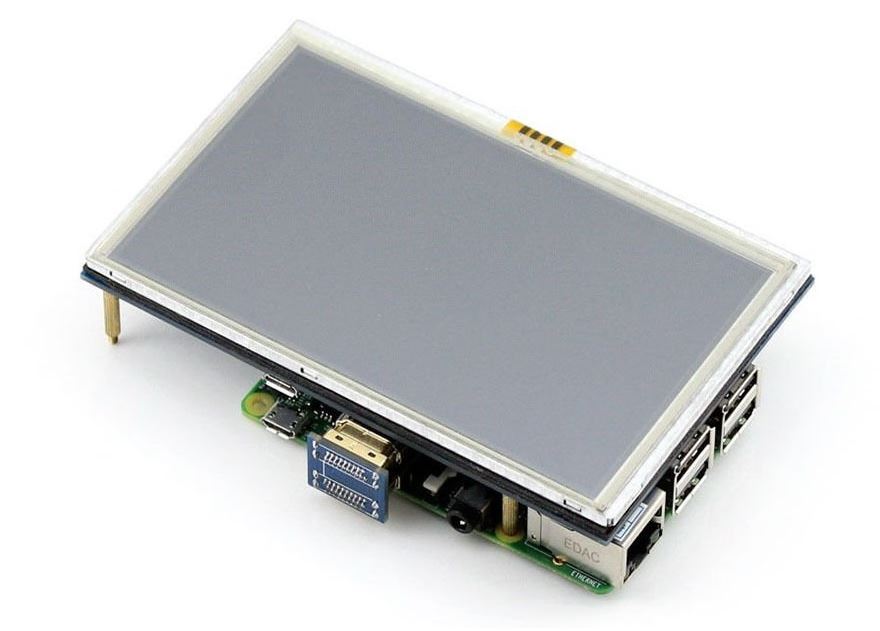

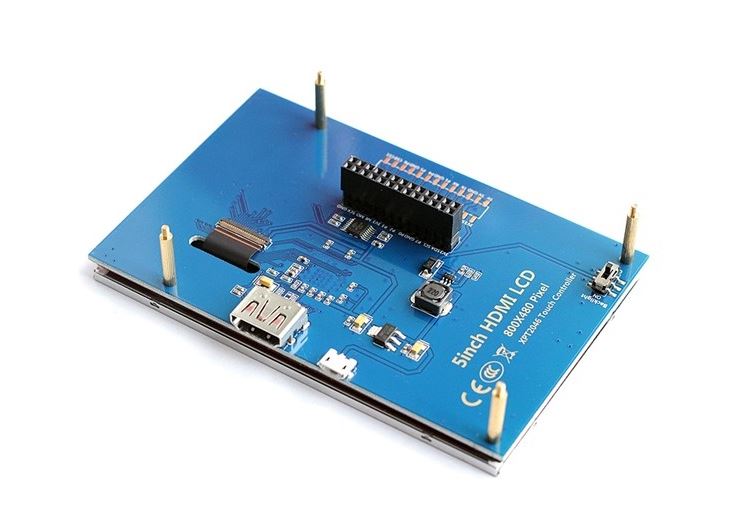

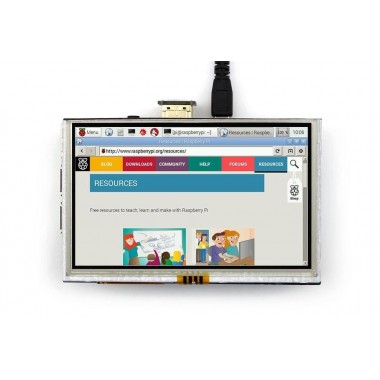

This 5 inch TFT Display with Touch Screen is a mini panel-mountable HDMI monitor. So small and simple, but you can use this display with any computer that has HDMI output, and the shape makes it easy to attach to a electronic product. Although the 800x480 common HDMI display is made for Raspberry Pi, we can use it other where not only for Raspberry Pi.


Features

  • A good solution for those seeking for a bigger resolution display
  • Good touch response
  • Large viewing angle
  • Fast response time
  • Not only for Raspberry Pi
  • Not only for mini-PCs, it can work as a computer monitor
  • With detail user guide and image

Specifications

  • 5 inch TFT Resistive touch screen display, 800x480 Resolution
  • HDMI input
  • Usb touch and power, 5V@1A
  • Lcd driver IC: ILI9486L
  • Refresh rate:60HZ
  • Lcd Size :143mm*83mm

Package list

  • 5 inch Touch LCD Display x1
  • HDMI connector x1
  • Touch pen x1

Wiki & External links

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (22/07/2016 - 11:34)

Hola Gabriel, aún no hemos tenido oportunidad de utilizarlo con RPi3 y Windows. Te recomendamos que busques esa información en foros sobre el tema. Saludos!

Gabriel (21/07/2016 - 09:20)

se puede usar en una Rberry 3 con windows 10 IoT? Funciona tanto el display como el touch?
