Productos

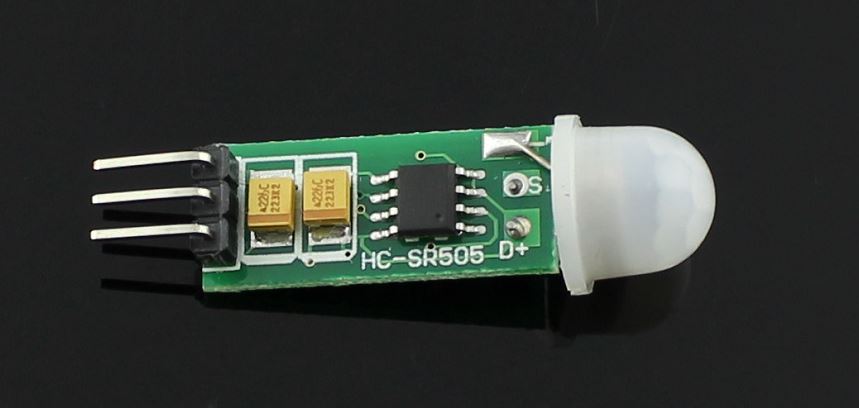

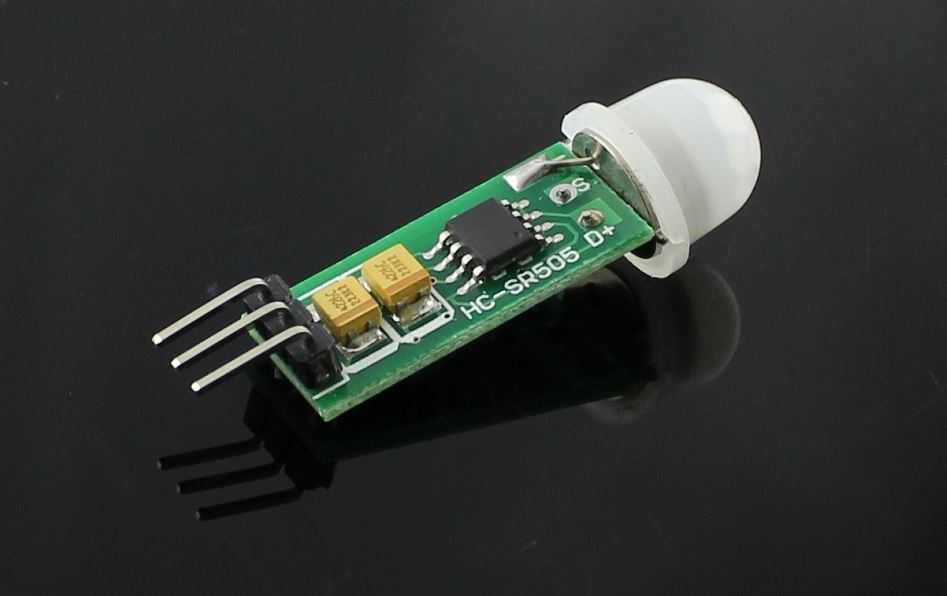

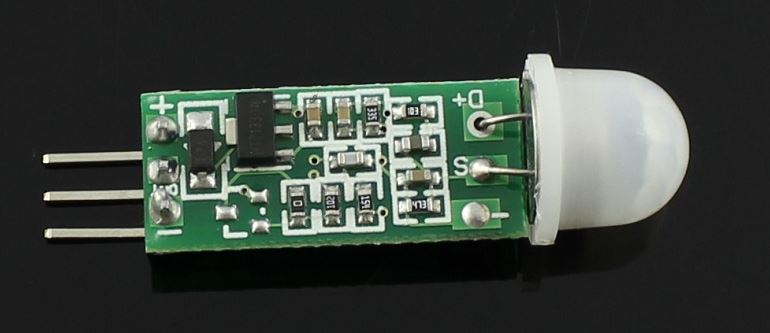

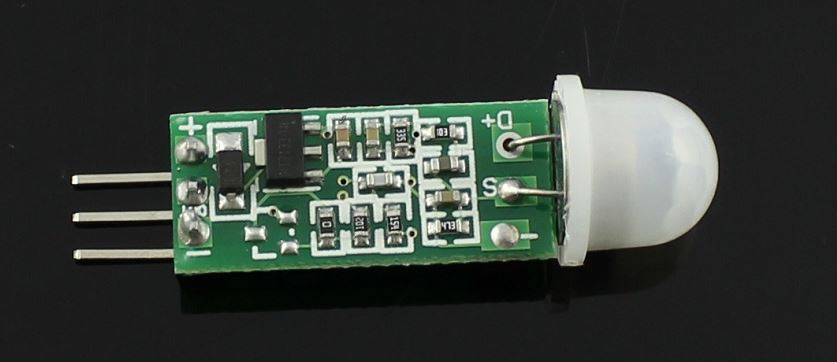

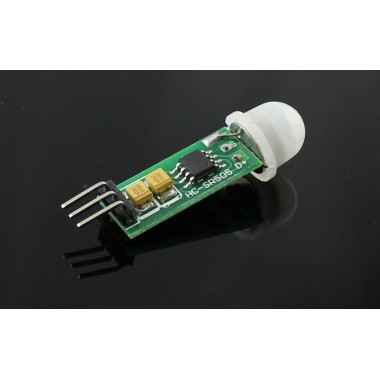

HC-SR505 Mini PIR Motion Sensor
Mini sensor de movimiento PIR.
COD: ESPS50506S
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 9358.00
El producto no está disponible para la venta en este momento
Características
HC-SR505 Mini PIR Motion Sensor is based on infrared technology and it can automatic control by itself with high sensitivity and high reliability. Because of the minimum size and low-power operation mode, it widely used in various of automatic electronic equipment, especially battery-powered automatic products.
Features
- Automatic Control
- Minimum size
- Repeatable Trigger
- Wide range of operating voltage
- Low-power
- Output high signal
Applications
- Body induction lamps
- Body induction toys
- Security Products
- Industrial automation and control
- Auto-sensing of electrical equipment
- Battery-powered automatic control
Specification
- Operating voltage range: DC4.5-20V
- Quiescent Current: <60uA
- Level output: Gao 3.3V / Low 0V
- Trigger: reusable trigger (default)
- Delay Time: The default 8S + -30%
- Board Dimensions: 10 * 23mm
- Induction angle:
- Sensing distance: 3 meters
- Working temperature: -20 to +80 degrees
- Sensor Lens Dimensions: Diameter: 10mm
Package list
- HC-SR505 Mini PIR Motion Sensor x1
