GPS/GLONASS vehicle tracker development board
Tracker para vehículos 100% compatible con Arduino, equipado con un potente 32-bit ARM Cortex-M3.
COD: RTOT2
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 273114.99
El producto no está disponible para la venta en este momento
Características

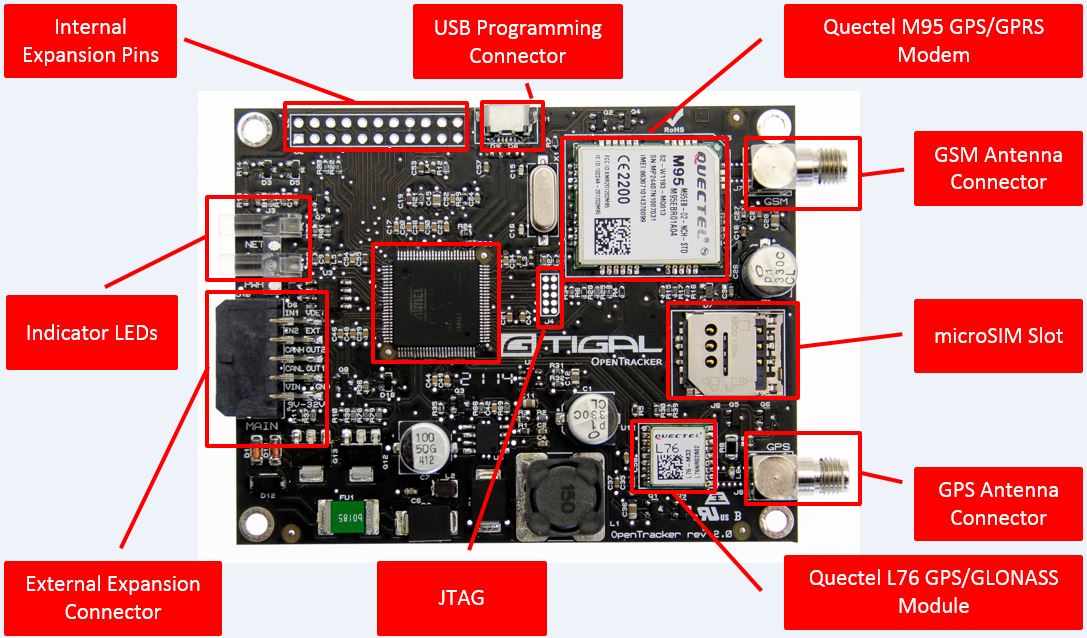

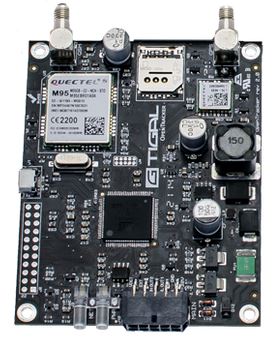

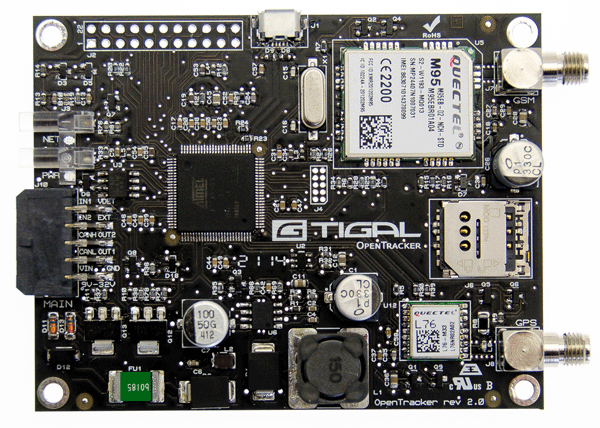

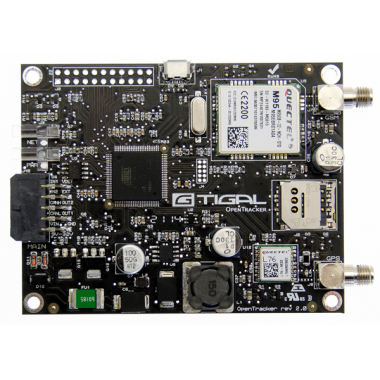

The first commercial grade, fully open source and 100% Arduino compatible GPS/GLONASS vehicle tracker with a powerful 32-bit ARM Cortex-M3 CPU.
Official website: https://www.geolink.io
The new IDE integration files are available at: https://github.com/geolink/opentracker-arduino-board
All PCB files are available at: https://github.com/geolink/opentracker-hardware
OpenTracker Wiki: https://github.com/geolink/opentracker/wiki
- ATMEL SAM3 ARM Cortex-M3 CPU (84Mhz)
- Quectel M95 Quad-band GSM modem
- Quectel L76 GPS/Glonass module
- -40C to +85C Operating temperature
- USB Interface
- JTAG Interface
- 1 x SPI
- 2 x UART
- 1 x I2C
- 1x CAN BUS Interface
- Analog, PWM, GPIO
OpenTracker Manual (1440 Kb)
