12864 Smart LCD Controller With Adapter For RepRap Ramps 1.4
Controlador para Ramps. Contiene lector de tarjetas SD, perilla selectora con encoder y display LCD gráfico 128x64.
COD: EP3D12864DK
Peso: 0.140 Kg
Disponibilidad: Sin Stock
ARS 27133.00
El producto no está disponible para la venta en este momento
Características

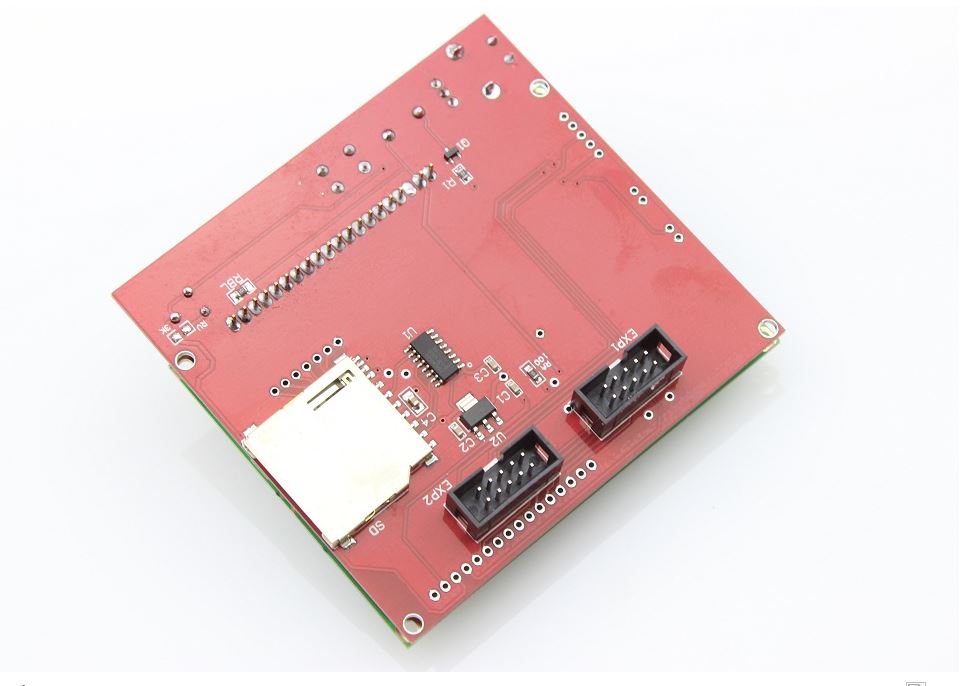

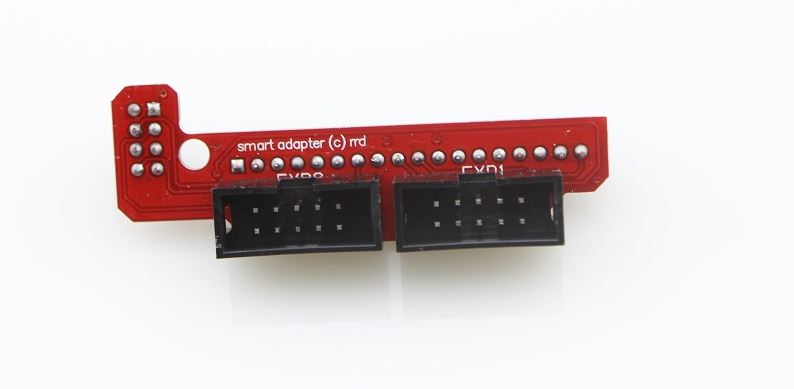

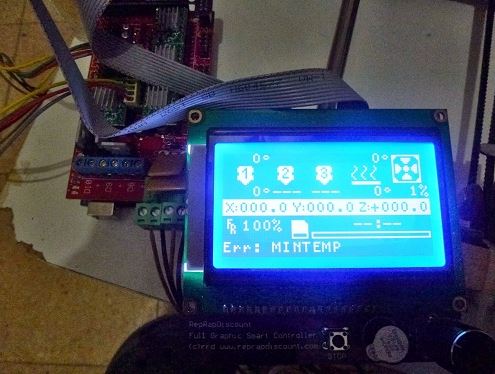

This Smart Controller contains a SD-Card reader, an rotary encoder and a 128x64 LCD display. You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more, all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.
Compares to the 2004 Smart LCD Controller With Adapter, this 128x64 screen can display much more information, which would help for you run the 3D printer without a computer.
Compares to the 2004 Smart LCD Controller With Adapter, this 128x64 screen can display much more information, which would help for you run the 3D printer without a computer.
Partlist

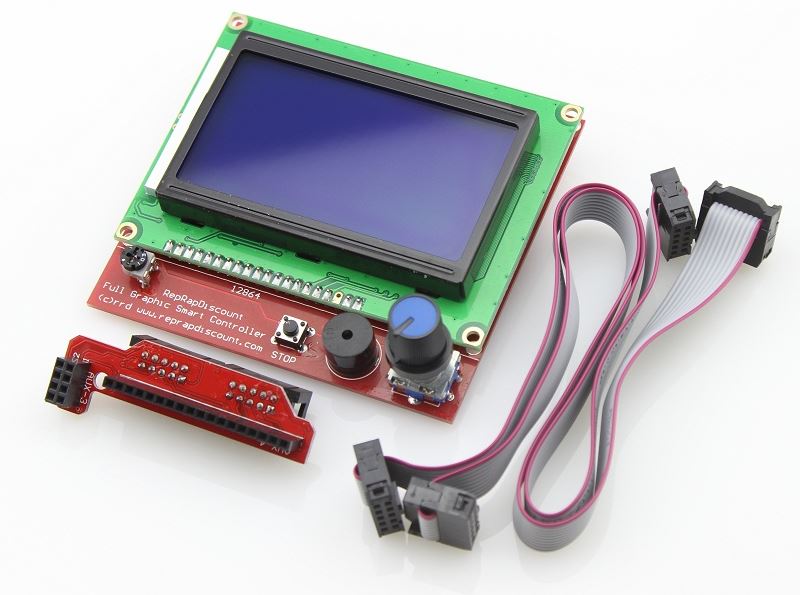

- 1 x 3D ramps 12864LCD controller
- 1 x Connector
- 2 x 20 cm cable
Features
- SainSmart RAMPS1.4 LCD12864 intelligent controller
- LED background light control circuit
- This controller is 100% compaitble with original design.
- LED background light control circuit, a small function of intelligent controller, With pin short time to decide on all LED turn or steering 30 seconds
- You can turn on the light time to do long or short form of the adjustment TRIMM R4100K from 10 seconds to 2 minutes If you use a print job at night and parts department, which means that the new modifications LCD backlight would be suitable for you
