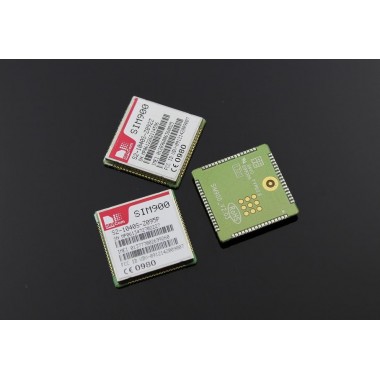

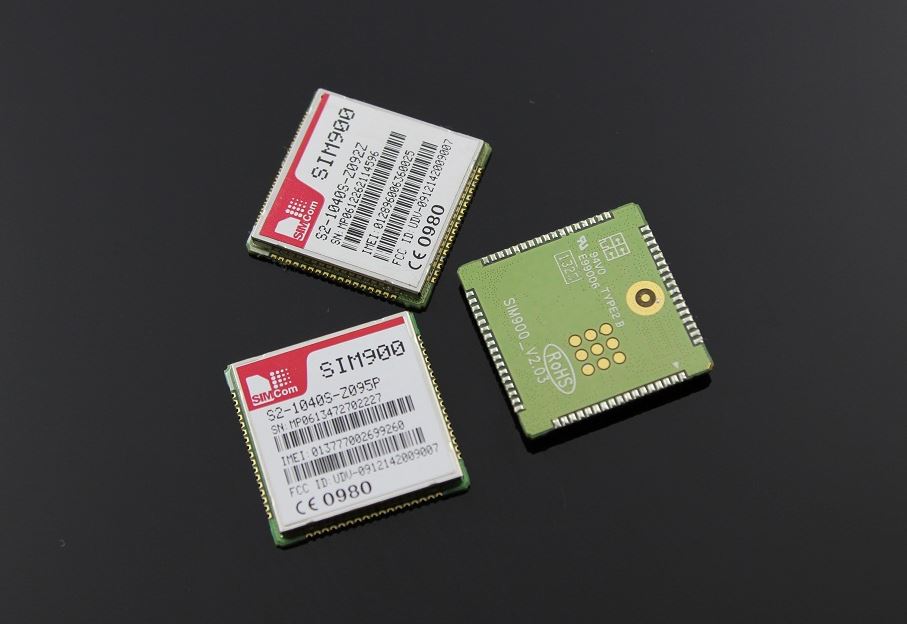

SIM900 Module - 4 Frequency

SIM900 Module - 4 Frequency

El SIM900 es un módulo ultra compacto GSM&GPRS (SMT), que integra el procesador AMR926EJ-S, logrando en pequeñas dimensiones una alta relación calidad-costo.

COD: EWGS49001G

Peso: 0.008 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 47190.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

SIM900 is an ultra compact and reliable GSM&GPRS modulein SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.

    Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.

General features

  • Quad-Band 850/ 900/ 1800/ 1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+:
    1. Class 4 (2 W @850/ 900 MHz)
    2. Class 1 (1 W @ 1800/1900MHz)
  • Dimensions: 24*24*3mm
  • Weight: 3.4g
  • Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
  • SIM application toolkit
  • Supply voltage range : 3.1 ... 4.8V
  • Low power consumption: 1.5mA(sleep mode)
  • Operation temperature: -40°C to +85 °C

Specifications for Fax

  • Group 3, class 1

Specifications for Data

  • GPRS class 10: max. 85.6 kbps (downlink)
  • PBCCH support
  • Coding schemes CS 1, 2, 3, 4
  • CSD up to 14.4 kbps
  • USSD
  • Non transparent mode
  • PPP-stack

Specifications for SMS via GSM/GPRS

  • Point to point MO and MT
  • SMS cell broadcast
  • Text and PDU mode

Software features

  • 0710 MUX protocol
  • embedded TCP/UDP protocol
  • FTP/HTTP( available at late July ,2010)
  • FOTA ( available at July ,2010)
  • MMS (available at July ,2010)
  • Embedded AT (available at Q3,2010)

Specifications for Voice

  • Tricodec:
    1. Half rate (HR)
    2. Full rate (FR)
    3. Enhanced Full rate (EFR)
  • Hands-free operation (Echo suppression)
  • AMR
    1. Half rate (HR)
    2. Full rate (FR)

Interfaces

  • Interface to external SIM 3V/ 1.8V
  • analog audio interface
  • RTC backup
  • SPI interface (option)
  • Serial interface
  • Antenna pad
  • I2C
  • GPIO
  • PWM
  • ADC

Compatibility

  • AT cellular command interface

Certificates:

  • CE
  • FCC
  • ROHS
  • PTCRB
  • GCF
  • IC
  • ICASA
  • TA
  • REACH
  • AT&T

Package list

  • SIM900 Module x1
