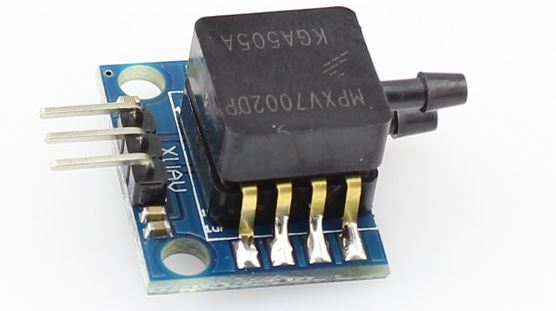

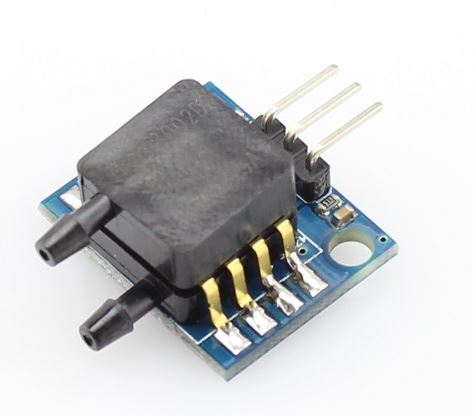

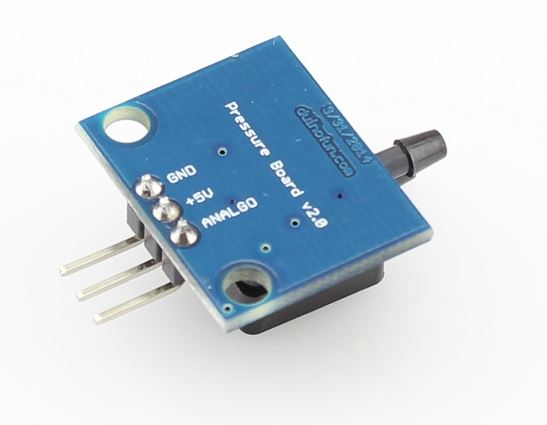

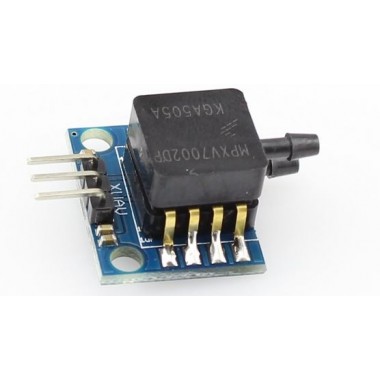

APM2.5 Airspeed Breakout Board MPXV7002DP
Sensor de presión de aire diferencial, con un rango de - 2 a 2 kPa (-0.3 a 0.3 psi). Con una instalación adecuada, puede utilizarse en un tubo Pitot para medir velocidad del aire.
COD: ESLF0025APM
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 53510.00
El producto no está disponible para la venta en este momento
Características
The MPXV7002 series piezoresistive transducer in the small outline package (SOP) is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
The MPXV7002 is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure up to 7kPa through each port for pressure sensing but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information).
Features
- -2 to 2 kPa (-0.3 to 0.3 psi)
- 0.5 to 4.5 V Output
- Size:22x18x11mm
Wiki & External links
Galería de Imágenes
Archivos
mpxv7002.pdf (177 Kb)Comentarios
Escribir ComentarioOpenHacks (07/06/2016 - 11:46)
Hola Gustavo, podes ver un ejemplo en el Wiki link presente en la descripción del producto. Saludos!
Gustavo (05/06/2016 - 08:11)
Juan Pablo ¿tenes algún ejemplo de código para arduino? saludos
