Laser Engraver Upgrade Pack for XY-Plotter Robot Kit V2.0

Grabador laser. No incluye el XY-Plotter Robot Kit.

COD: SE114990139

Peso: 0.300 Kg

Disponibilidad: En Stock

ARS 304720.01

El producto no está disponible para la venta en este momento

Características

Introduction:

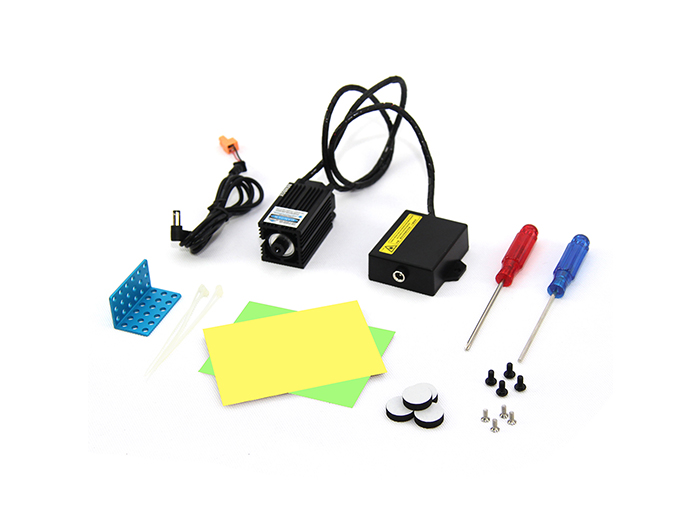

Laser Engraver Upgrade Pack is for XY Plotter Robot Kit V2.0, it can engrave by laser.

Note: The higher output power of the laser, the better processing capacity it is.

The 500mW laser engraver can do better engraving and cutting ability, it takes less time and more efficient than the 250mW laser engraving.

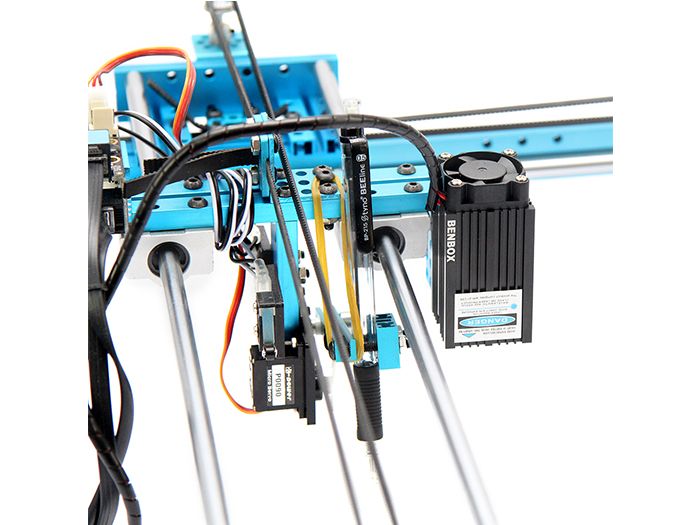

Follow the instruction, assembly the lasers elements to the assembled XY Plotter Robot Kit V2.0 and upload the firmware to the Me Baseboard. You can use Benbox Laser Engraver to control the laser engraver robot to engrave fabulous artworks.

For reference video as below: (https://www.youtube.com/watch?v=Y2Hj5XXX_hc).

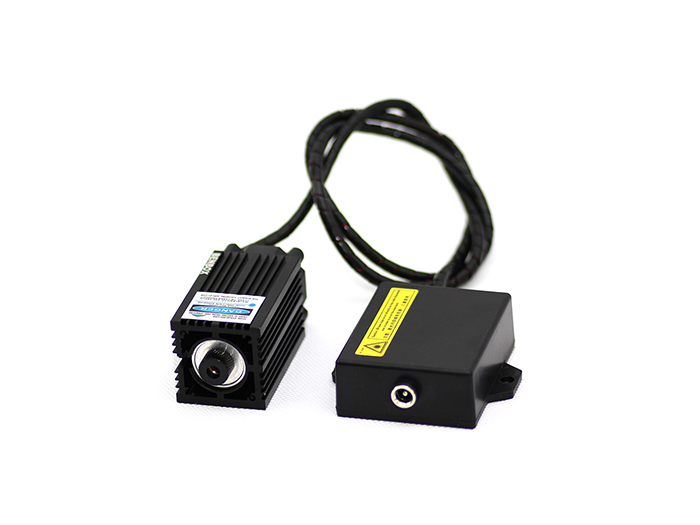

Wavelength γ= 405nm Blue-Violet Laser 450~500mW semiconductor diode lasers elements

Working area: 300mm×350mm

Engrave accuracy:0.1mm

Suggested material:

(1) suggested engrave material: wood board, colorful paper cards, dark opaque acrylic, etc.

(2) suggested cutter material: colorful paper cards, foam papers, etc.

Usage:

For the places required engraving or cutter such as families, hacker spaces, schools, companies, etc.

Minimum age: 18 years. Under the age of 18, please use under the care of their parents

Security:

Pay attention when you’re operating the blue-violet laser MAKE SURE you’re wearing the goggles to avoid the dangers.

Specification:

Frame: Anodized aluminum
Physical Dimensions(L×W×H): 620mm × 620mm×140mm
Engrave materials: Wood boards, colorful paper cards, dark opaque acrylic, foam papers, etc.
Cutting materials: Colorful paper cards, foam papers, etc.
Working area (X×Y): 300mm×350mm
XY Resolution: 0.1mm
Max Speed: 50mm/s
Power: 100-240 V~50/60Hz AC/DC Power adapter, 12V/2.0A
Software: Benbox Laser Engraver
Supports file type: JPG, PNG, BMP, GIF, DXF
Connections: USB
