PhoBot
Shield para control de motores, diseñado para Spark Core y Photon.
COD: SE114990229
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 38170.00
El producto no está disponible para la venta en este momento
Características

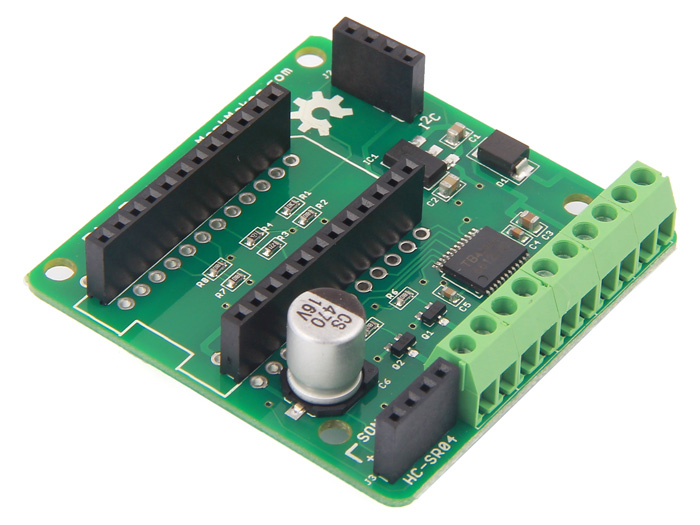

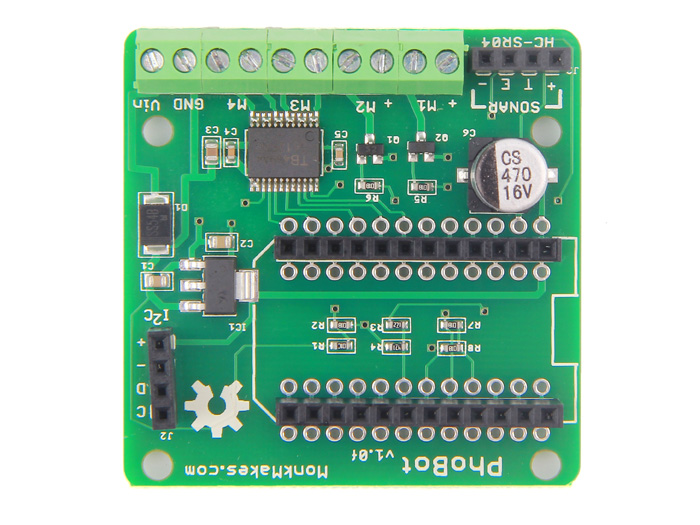

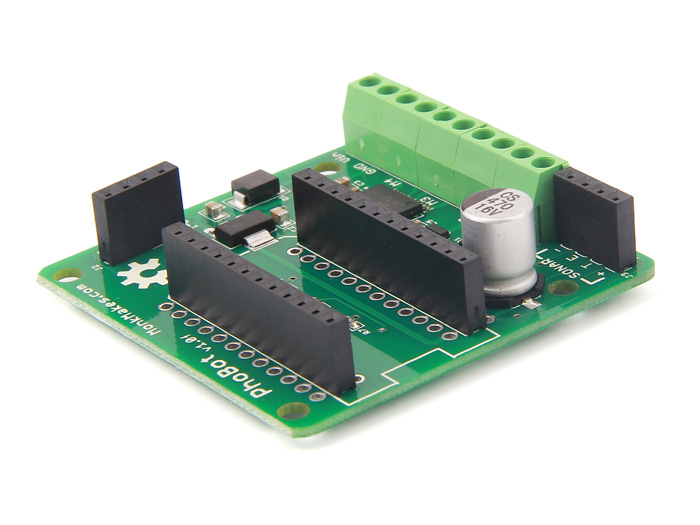

A simple to use motor shield for the Spark Core and Photon. This board is designed to simplify the process of making small roving robots using a Photon or Spark Core. The shield is designed to be used with low cost robot chassis to make simple autonomous robots.
Features:
- Dual bi-directional motor control using TB6612FMG dual H-bridge
- Dual open drain 2A MOSFET outputs
- Socket for HC-SRo4
- Socket for 5V I2C Interface
- Provides 5V regulated power to Photon or Core
Specification:
- Max. Input voltage: 12V
- Min. Input voltage: 6V
- Max. Current M1 and M2: 2A
- Max. current I2C 5V supply: 80mA
Part List:
1 x PhoBot v1.0
The board has an accompanying C library that can be found on GitHub here.
