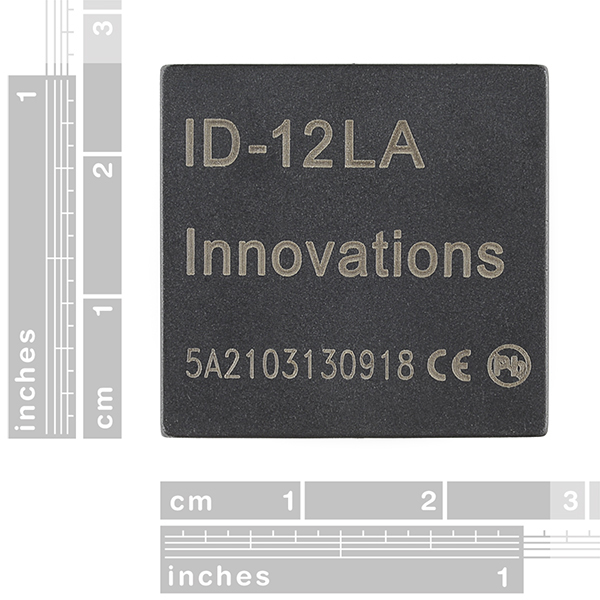

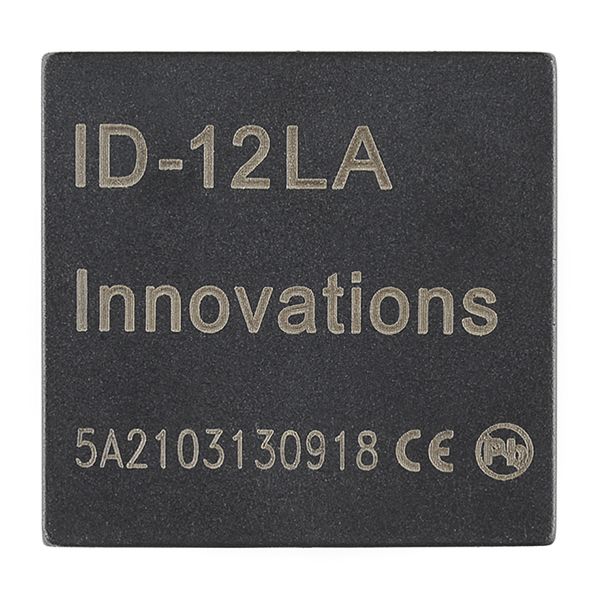

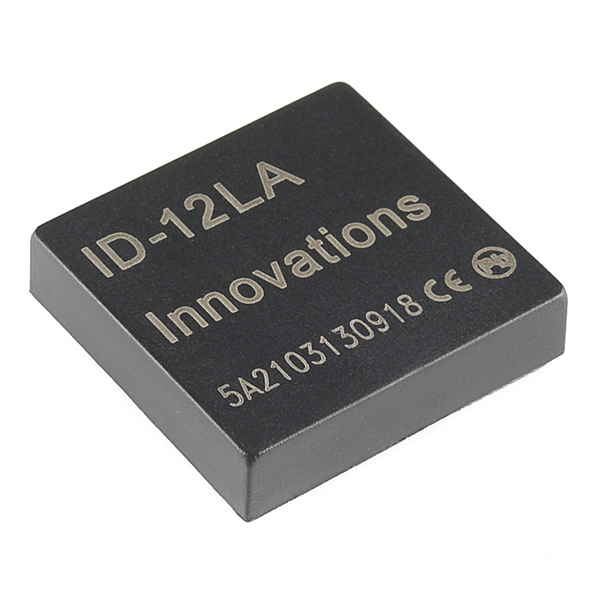

RFID Reader ID-12LA (125 kHz)
Lector de tarjetas RFID de 125kHz, 25x26mm.
COD: SFSEN11827
Peso: 0.008 Kg
Disponibilidad: En Stock
ARS 63619.00
El producto no está disponible para la venta en este momento
Características

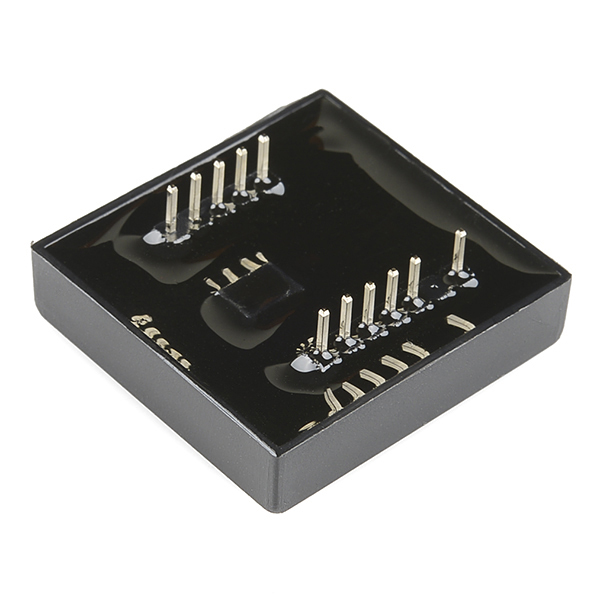

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-12LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.
Note: The new ID-12LA is essentially the same as the ID-12, but has a lower voltage input.
Features:
- 2.8 - 5V supply
- 125kHz read frequency
- EM4001 64-bit RFID tag compatible
- 9600bps TTL and RS232 output
- Magnetic stripe emulation output
- 120mm read range
Dimensions: 25x26mm
Documents:
id-2la__id-12la__id-20la2013-4-10.pdf (638 Kb)
