SparkFun Barometric Pressure Sensor Breakout - BMP180

SparkFun Barometric Pressure Sensor Breakout - BMP180

Sensor de presión barométrica - 300 a 1100 hPa -

COD: SFSEN11824

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 18541.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

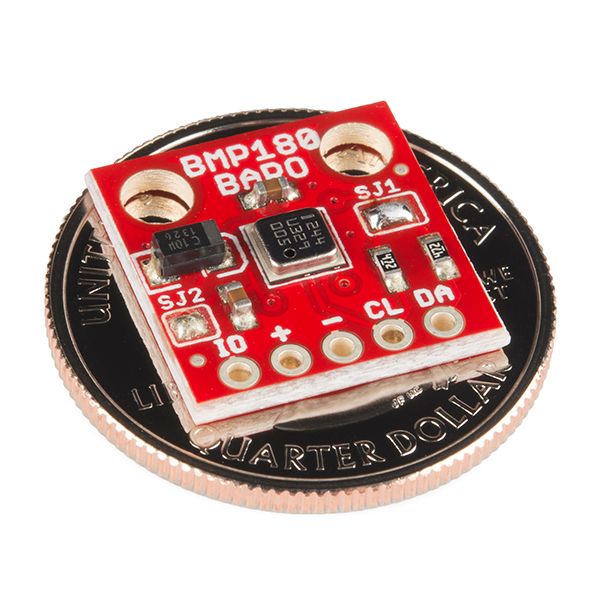

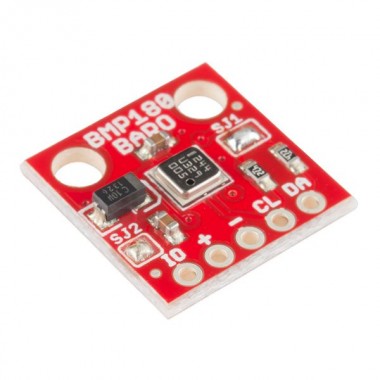

Description: This is a breakout board for the Bosch BMP180 high-precision, low-power digital barometer. The BMP180 offers a pressure measuring range of 300 to 1100 hPa with an accuracy down to 0.02 hPa in advanced resolution mode. It’s based on piezo-resistive technology for high accuracy, ruggedness and long term stability. These come factory-calibrated, with the calibration coefficients already stored in ROM. What makes this sensor great is that it is nearly identical to its former rev, the BMP085!

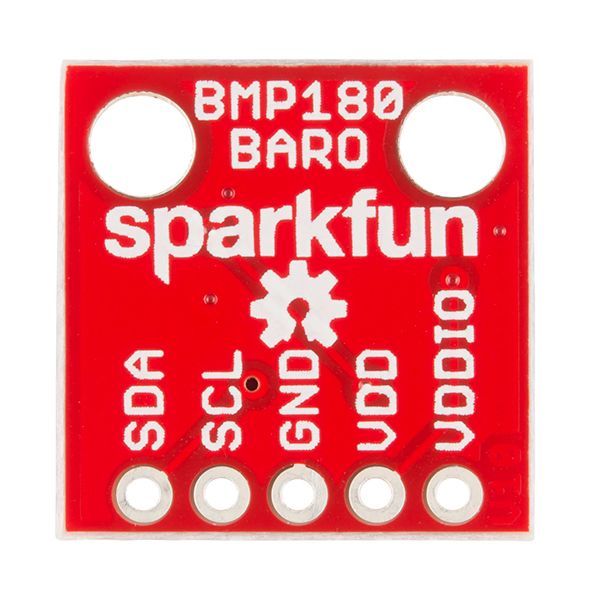

This breadboard-friendly board breaks out every pin to a 5-pin 0.1" pitch header. VCC can be from 1.8V to 3.6V and is I/O lines are 5V tolerant; we typically run it on a clean, regulated 3.3V supply. The analog and digital supplies (VDDD and VDDA) are tied to a single header pin, but are separately decoupled. It connects to a microcontroller via I²C bus (also known as TWI, or on the Arduino, the “Wire” library).

Features:

  • Digital two wire (I²C, TWI, “Wire”) interface
  • Wide barometric pressure range
  • Flexible supply voltage range (1.8V to 3.6V)
  • Ultra-low power consumption
  • Low noise measurements
  • Factory-calibrated
  • Includes temperature sensor
  • Low-profile with a small footprint

Documents:
