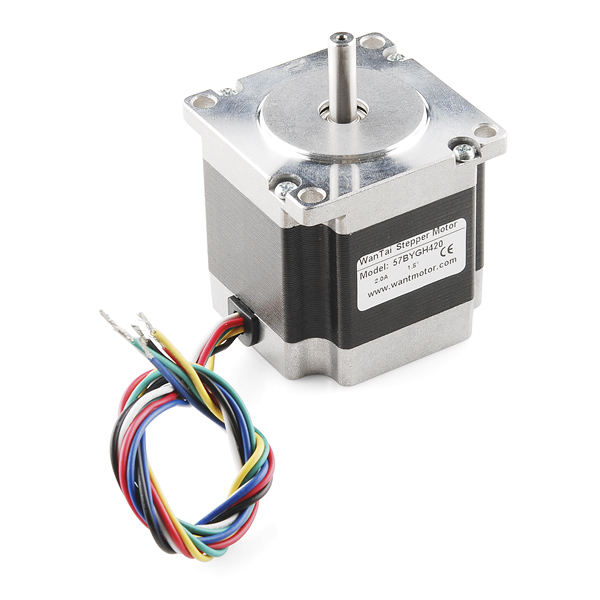

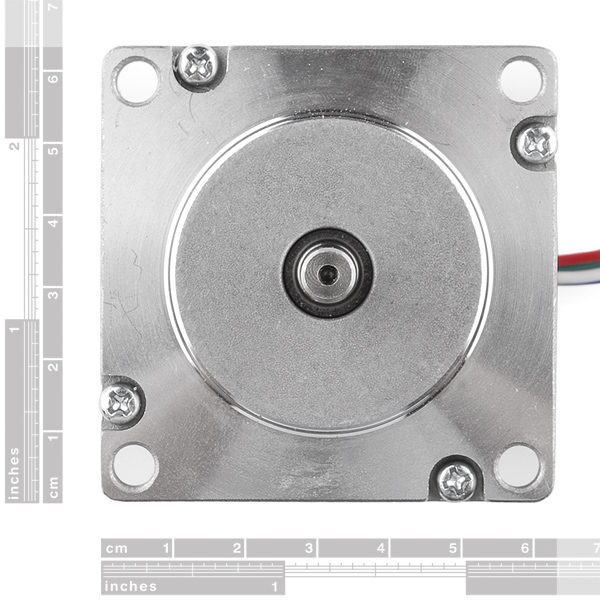

Stepper Motor - 125 oz.in (200 steps/rev)

Stepper Motor - 125 oz.in (200 steps/rev)

Motor Paso a Paso Unipolar NEMA 23 de 90Ncm

COD: SFROB10847

Peso: 0.692 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 74617.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

These steppers are a great way to get things moving, especially when positioning and repeatability is a concern.

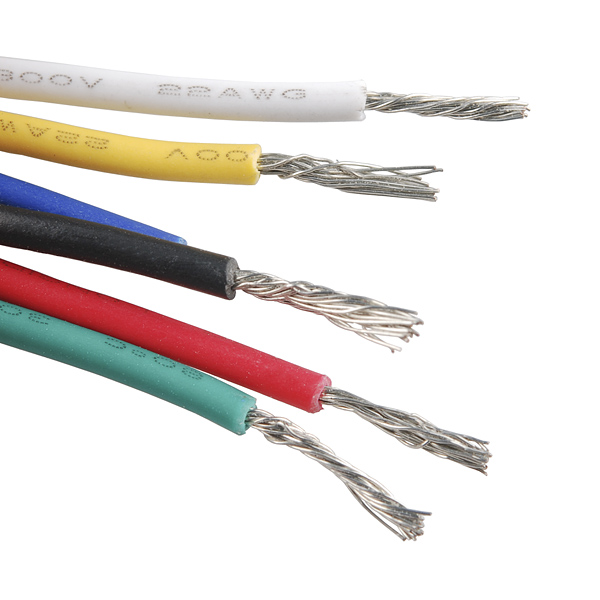

Note: This is a Unipolar stepper, meaning that if you are going to drive it with a bipolar stepper driver, you can ignore the yellow and white leads and drive it using the remaining four.



Features:

  • Step Angle (degrees) : 1.8
  • 4-Phase
  • Rated Voltage: 3V
  • Rated Current: 2A/Phase
  • ¼" Diameter Drive Shaft
  • Holding Torque: 90N.cm
  • NEMA 23 form factor
