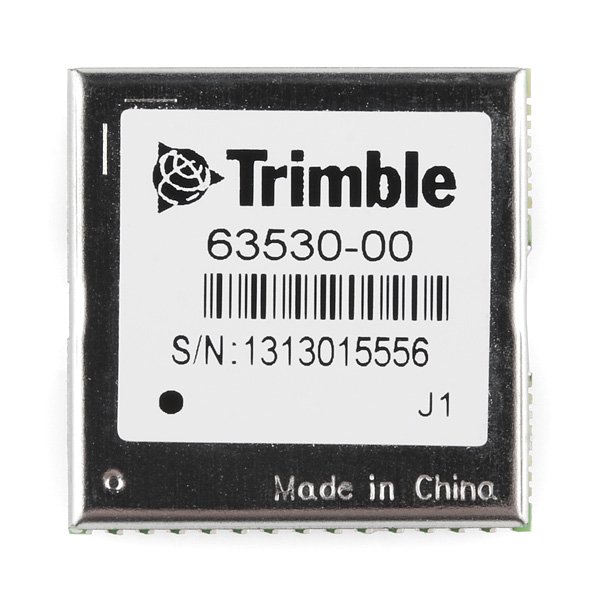

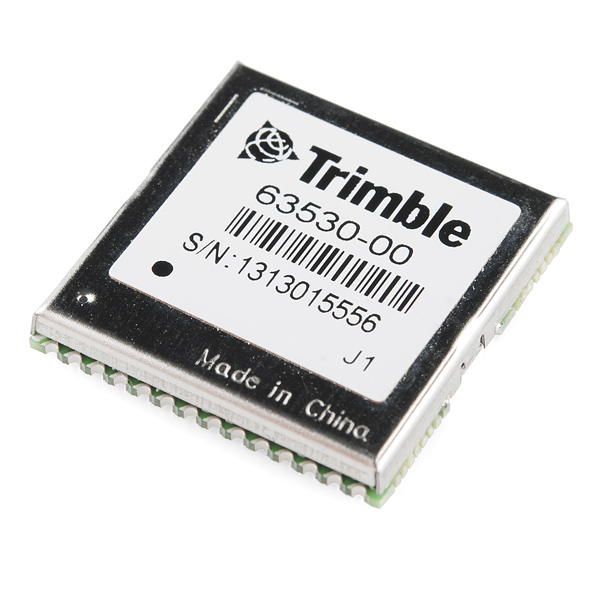

GPS Module - Copernicus II (12 Channel)
Módulo receptor GPS (12 canales).
COD: SFGPS10922
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 103484.00
El producto no está disponible para la venta en este momento
Características
Description: Copernicus II is the latest iteration of the popular Copernicus GPS module from Trimble. The Trimble Copernicus II delivers proven performance and Trimble quality for a new generation of position-enabled products. It features the TrimCore™ navigation software for extremely fast startup times and high performance in foliage canopy and urban canyon environments. Also, the Copernicus II is compatible with all applications using the previous generation of Copernicus module.
Not sure which GPS module is right for you? Check out our GPS Buying Guide!
Dimensions: 19x19x2.54mm
Features:

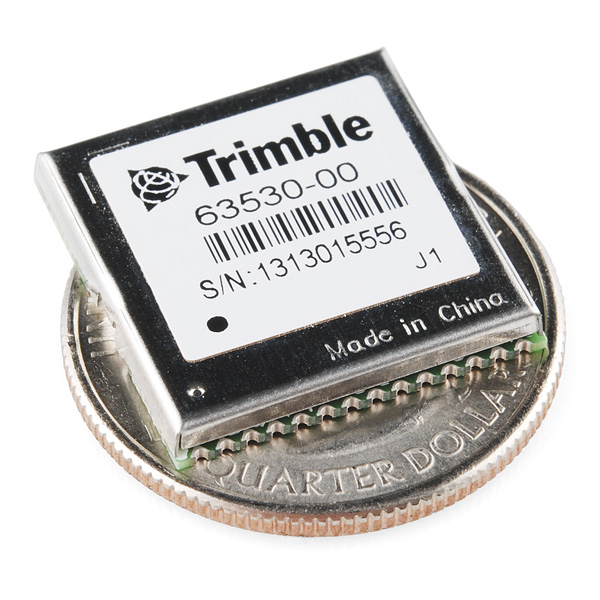

- Tiny size : 19x19x2.54mm
- High sensitivity : -160dBm
- Time to First Lock (cold start) : 38 sec
- Dual serial ports with reconfigurable UART rates
- NMEA, TSIP, and TAIP protocols

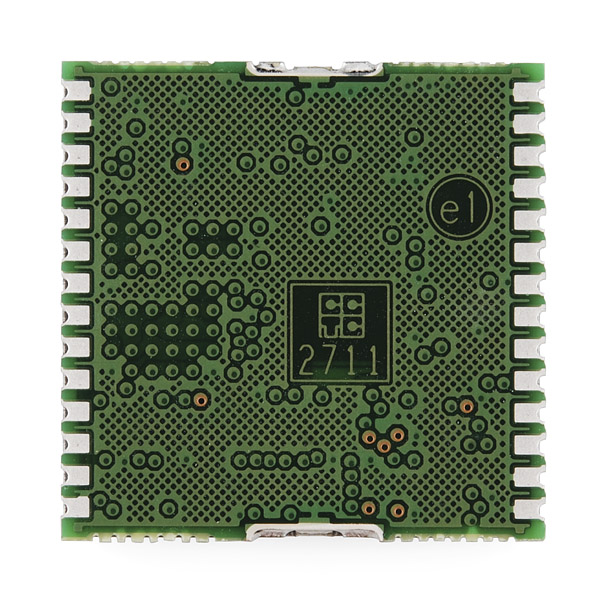

- SMD castellation leads can be hand soldered
- RoHS Compliant
Documents:
- SparkFun GPS Tutorial
- GPS Tutorial by Michael Simpson
- Trimble Studio
- Trimble Support Tools
63530-10_rev-b_manual_copernicus-ii.pdf (3013 Kb)
