Productos

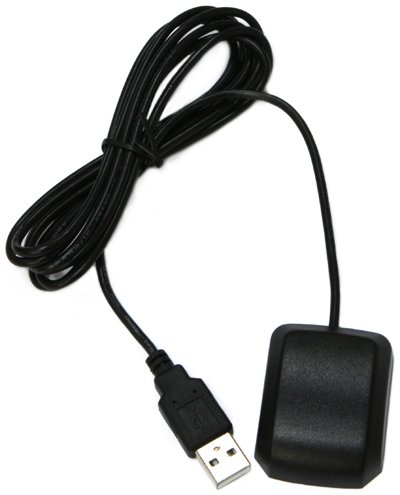

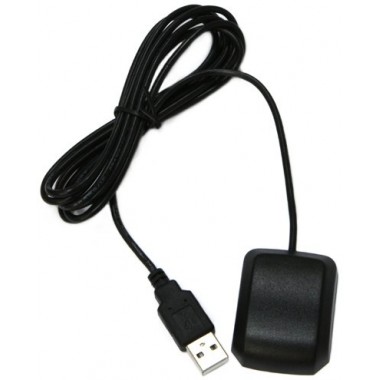

USB GPS Module
Módulo GPS para ODROID basado en Ublox 6010 de 50 canales. Compatible con Linux y Android.
COD: OD0095
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 111622.00
El producto no está disponible para la venta en este momento
Características
Add GPS Capability to your ODROID or other SBC running Linux or Android!
KEY FEATURES

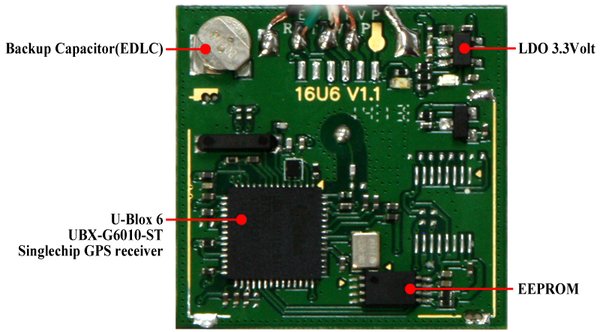

Ublox 6010 chipset with patch antenna
- 50 channel u-blox 6 engine
- GPS L1 C/A code
- SBAS: WAAS. EGNOS, MSAS
USB Interface ( /dev/ttyACM0 )
- GPS Protocol: NMEA 0183 position, velocity, altitude, status and control
- Consumed Power: 5V/100mA
Receiver Performance Data
- Tracking sensitivity: -160dBm
- Acquisition sensitivity: -146dBm
- Cold start: 32 sec. (average)
- Warm start: 32 sec. (average)
- Hot start: 1 sec. (average)
- Recapture: 0.1 sec. (average)
Mechanical Data
- Dimensions: 50 x 38 x 16 mm
- USB Cable Length: 2m (~6ft.)
- Mounting: Magnet
- Weight: 70g (~2.5oz.)
LINKS
- Quick start guide for Linux -http://odroid.com/dokuwiki/doku.php?id=en:c1_usb_gps
