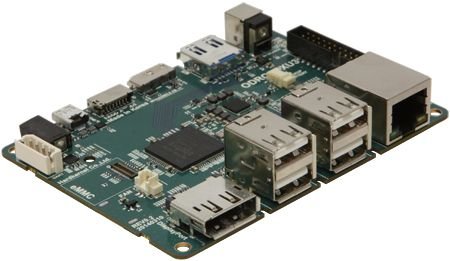

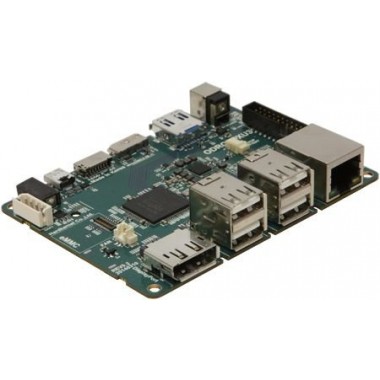

ODROID-XU3
Potente board ARM con un total de 8 núcleos, especial para aplicaciones que requieren gráficos 3D.
COD: OD0003
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 561105.02
El producto no está disponible para la venta en este momento
Características

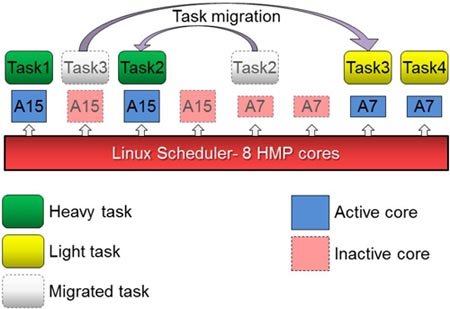

Powered by ARM® big.LITTLE™ technology -- a Heterogeneous Multi-Processing (HMP) solution allowing all eight cores to process simultaneously.
The ODROID-XU3 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor. Supporting open source, the board can run various flavours of Linux, including the latest Ubuntu and Android versions. Through the e-MMC 5.0 and USB 3.0 interfaces, the ODROID-XU3 boasts fast data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices. This supports faster booting, web browsing and 3D gaming.
KEY FEATURES
- Samsung Exynos5422 Cortex™-A15 2.0Ghz quad core and Cortex™-A7 quad core CPUs
- Mali-T628 MP6(OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)
- 2Gbyte LPDDR3 RAM at 933MHz (14.9GB/s memory bandwidth) PoP stacked
- eMMC5.0 HS400 Flash Storage
- USB 3.0 Host x 1, USB 3.0 OTG x 1, USB 2.0 Host x 4
- HDMI 1.4a and DisplayPort1.1 for display
- Integrated power consumption monitoring tool
INCLUDES
- XU3
- XU3 Case
- Active Heatsink and Cooling Fan
- HDMI Cable (Micro, Type D)
REQUIRED ACCESSORIES
- eMMC or microSD card with operating system image
- Display device for setup and use (HDMI-capable monitor, or appropriate adapter) unless running XU3 as a "headless" server
LINKS
- Hardkernel's XU3 Feature page: http://www.hardkernel.com/main/products/prdt_info.php?g_code=G140448267127
- Hardkernel's XU3 Board Detail page: http://www.hardkernel.com/main/products/prdt_info.php?g_code=G140448267127&tab_idx=2
- Hardkernel's XU3 Wiki page (useful info on expansion connector, boot process and more): http://www.hardkernel.com/main/products/prdt_info.php?g_code=G140448267127&tab_idx=2
- Hardkernel's XU3 Schematics page: http://dn.odroid.com/5422/ODROID-XU3/Schematics/XU3_MAIN_REV0.2.PDF
- (2014-11-16) Digital Car System with XU3 and 1080p HDMI LCD - http://www.youtube.com/watch?v=Kq8_bnPy_jM
- (2014-11-12) Cyanogenmod 11 on XU3 - https://plus.google.com/u/0/+%EC%9A%A9%EC%98%A4codewalker%EA%B9%80/posts/Pm6jiZXdKhY?pid=6080930862772839746&oid=109401098973333873246
- (2014-10-30) XU3 Android in portrait mode on 42" touchscreen - http://www.youtube.com/watch?v=87KhA6qh2KM

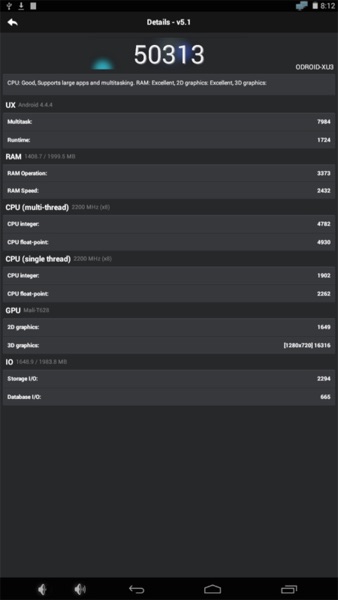

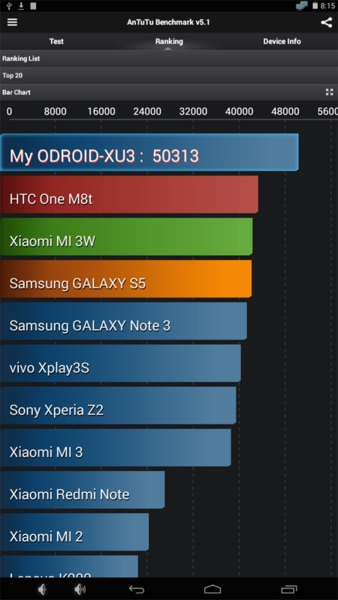

- (2014-10-23) XU3 Performance - http://www.youtube.com/watch?v=7JBynyJ3iDs
- (2014-10-23) XU3 OpenNI2 and OpenCV tests - http://www.youtube.com/watch?v=MbuYwf2-pOE
- (2014-10-21) XU3 first look (in Spanish) - http://www.youtube.com/watch?v=2D2RdtzDtmk
- (2014-10-17) XU3 with Android (in Russian) - http://www.youtube.com/watch?v=wWFW3B8a9S0
- (2014-09-29) Installing Ubuntu on XU3 (in German) - http://www.youtube.com/watch?v=g3kZj_LwYTM
- (2014-09-20) XU3 Booting Ubuntu 14.04LTS - http://www.youtube.com/watch?v=GeCcNN5NncM
- (2014-09-18) XU3 Unboxing (in Spanish) - http://www.youtube.com/watch?v=oEfHxObbWVA
- (2014-09-03) Installing Android on XU3 (in German) - http://www.youtube.com/watch?v=7Ie_4Ypyz7s
- (2014-07-08) Ubuntu 14.04 on XU3 - http://www.youtube.com/watch?v=tE5wJzItppU
