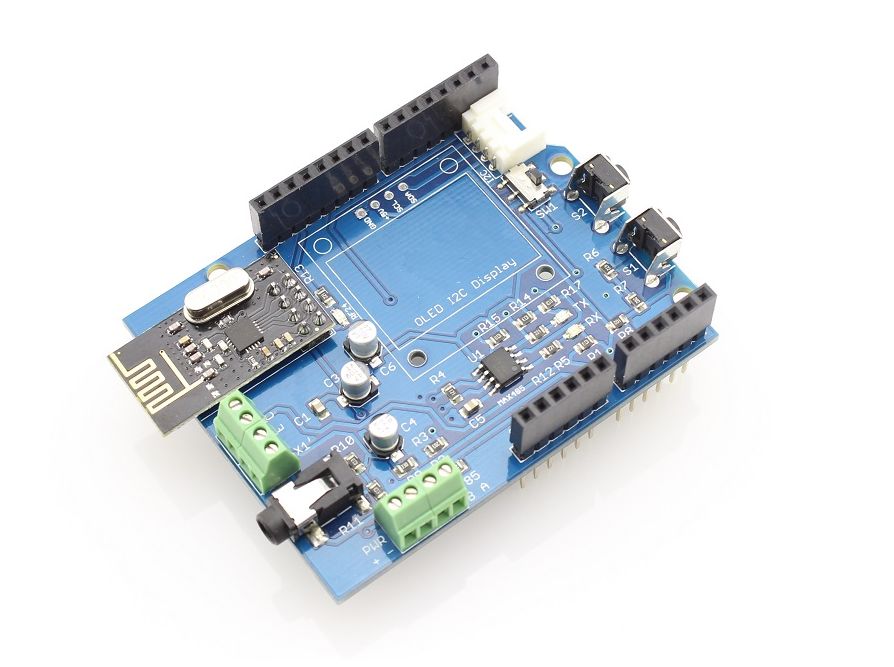

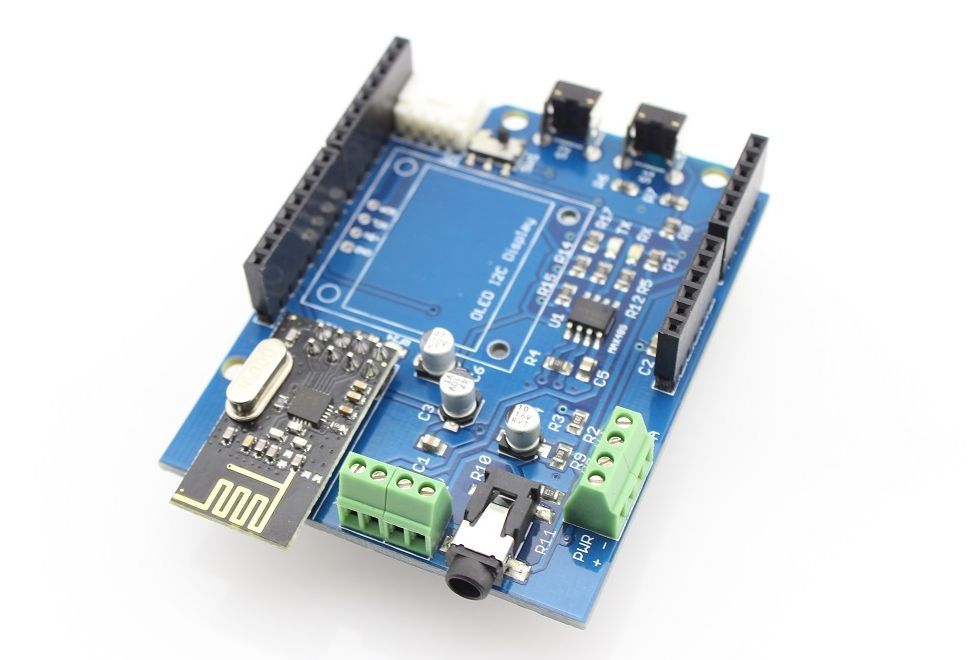

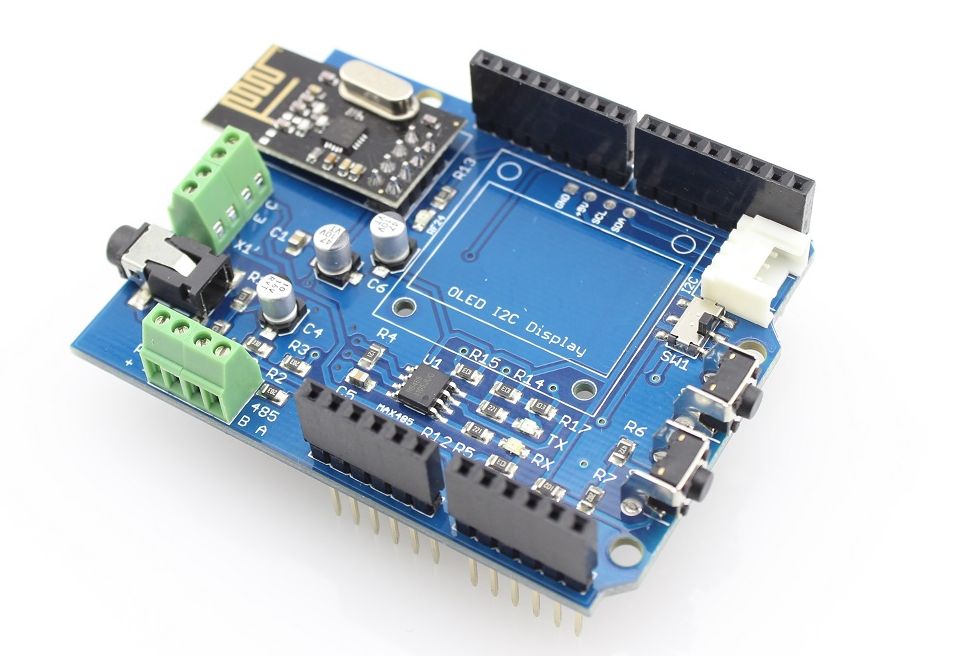

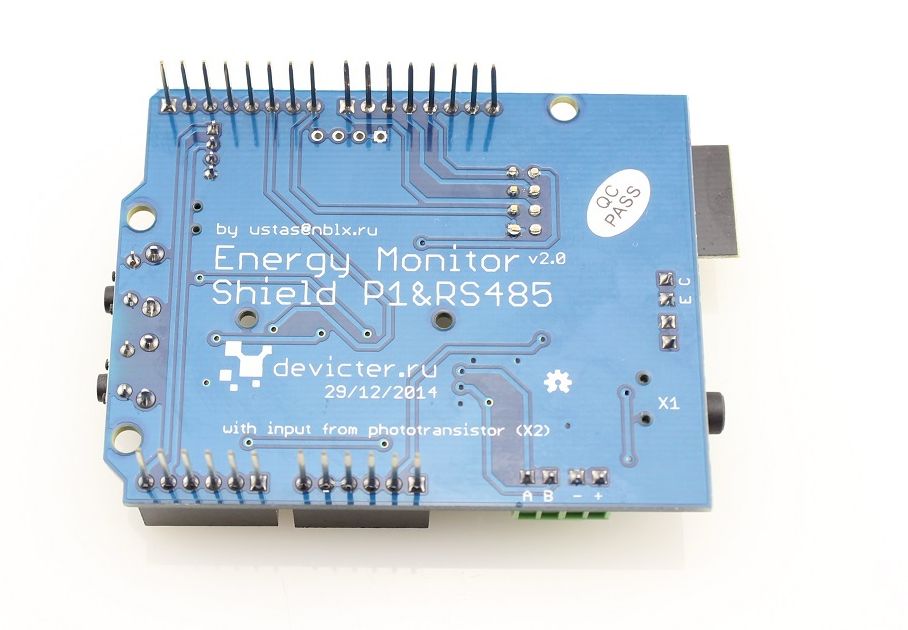

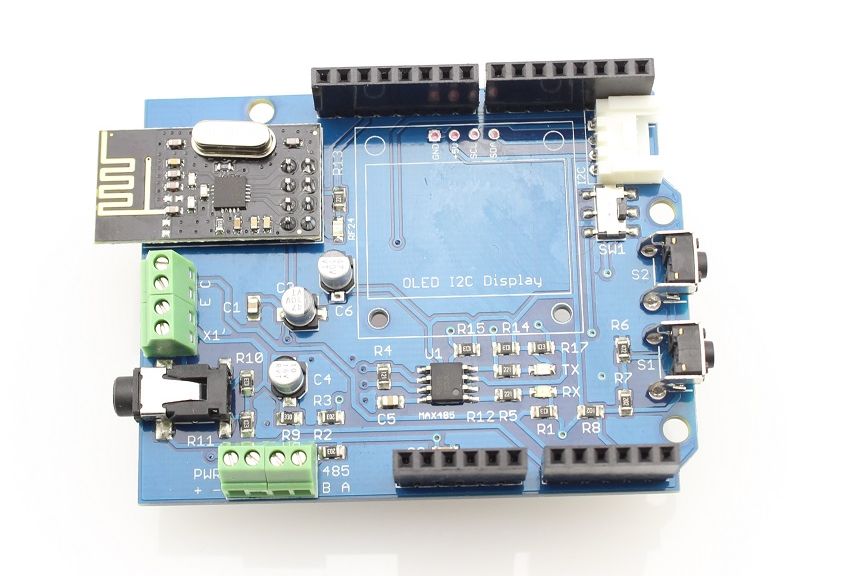

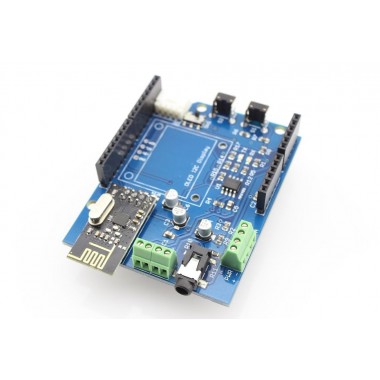

Energy Monitor Shield V2
Shield compatible con Arduino diseñado para crear sistemas de monitoreo energético. Incluye transceptor nRF24L01. Posee capacidad de conectar display OLED (no incluido).
COD: ECOP77013DE
Peso: 0.025 Kg
Disponibilidad: Sin Stock
ARS 51552.00
El producto no está disponible para la venta en este momento
Características
Energy Monitor Shield V2 is Arduino-compatible expansion card designed for building energy monitoring system with the ability to connect I2C OLED-display and built-in wireless transceiver nRF24L01 +. Unlike version 1, has on-board interface phototransistor to read data from the built-in LEDs of different counters and interface RS485.
Features
- Connecting one sensors AC (30-100A)
- Support I2C OLED-display
- Terminal for connecting the phototransistor VTT7122H
- Interface RS485
- Two buttons to control (enabled one analog pin)
- Transceiver for 2.4G nRF24L01 + soldered on the motherboard
- GROVE-compatible connector: I2C
- Fully compatible with Ethernet Shield (Wiznet 5200 + SD)
Packing List
- Energy Monitor Shield V2 P1 X 1
