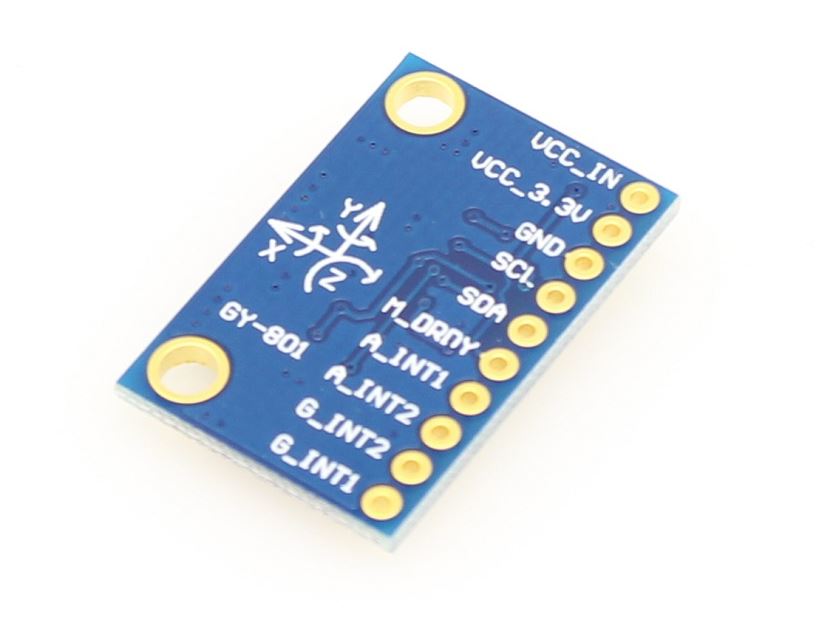

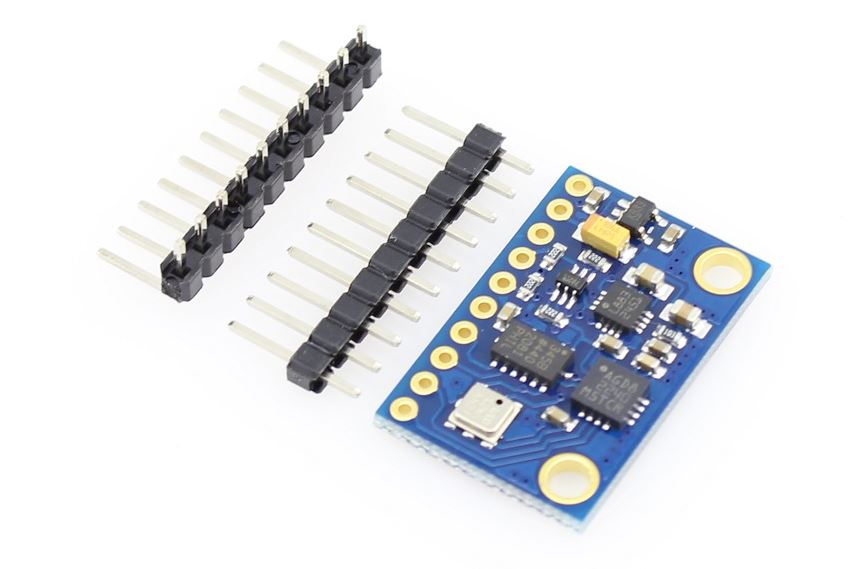

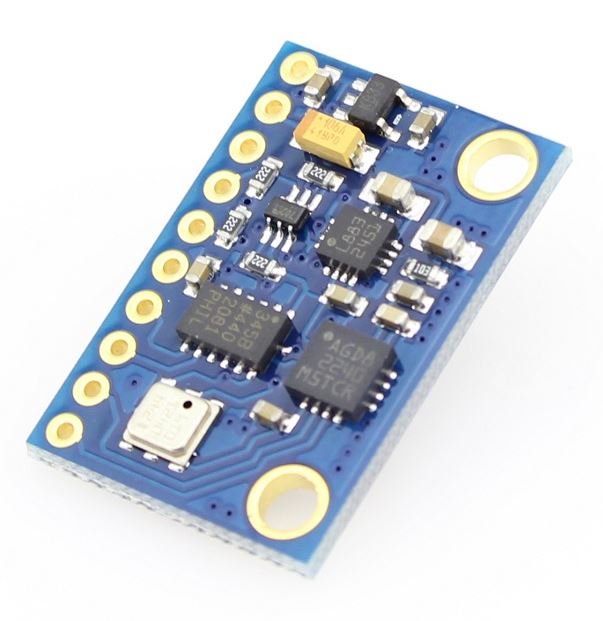

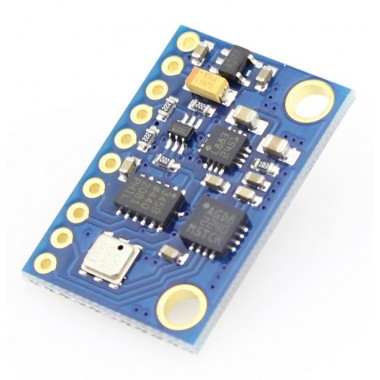

IMU 10DOF L3G4200D+ADXL345+HMC5883L+BMP180
Módulo basado en los sensores L3G4200D, ADXL345, HMC5883L and BMP180. Sensor angular, lineal y acelerómetro de 3 ejes mas sensor de presión de alta precisión.
COD: ESM080110DOF
Peso: 0.002 Kg
Disponibilidad: Sin Stock
ARS 34790.00
El producto no está disponible para la venta en este momento
Características
This IMU 1DOF is based on the sensor L3G4200D, ADXL345, HMC5883L and BMP180.
The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stablility of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).
The ADXL345 is a small, thin, low power, three-axis accelerometer with high resolution (13-bit) measurement up to 16 g. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg/LSB) enables resolution of inclination changes of as little as 0.25°. The Honeywell HMC5883L is designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry
The HMC5883L includes high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
The BMP180 is the function compatible successor of the BMP085, a new generation of high precision digital pressure sensors for consumer applications. The ultra-low power, low voltage electronics of the BMP180 is optimized for use in mobile phones, PDAs, GPS navigation devices and outdoor equipment.
The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stablility of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).
The ADXL345 is a small, thin, low power, three-axis accelerometer with high resolution (13-bit) measurement up to 16 g. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg/LSB) enables resolution of inclination changes of as little as 0.25°. The Honeywell HMC5883L is designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry
The HMC5883L includes high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
The BMP180 is the function compatible successor of the BMP085, a new generation of high precision digital pressure sensors for consumer applications. The ultra-low power, low voltage electronics of the BMP180 is optimized for use in mobile phones, PDAs, GPS navigation devices and outdoor equipment.
Features
- Three selectable full scales (250/500/2000dps)
- Factor in all g-ranges, up to 13-bit resolution at ±16 g
- 12-Bit ADC Coupled with Low Noise ARM Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields
- Pressure range:300 to1100hPa (+9000m to -500m above sea level)
- I2C interfaces
- Power supply: 3-5v
Applications
- Gaming and virtual reality input devices
- Vibration monitoring and compensation
- GPS navigation systems
- Appliances and robotics
- Weather forecast
