CC3000 WiFi Shield
Shield Arduino basado en el módulo CC3000, que simplifica la implementación de conectividad a internet usando tecnologia Simple Link Wi-Fi.
COD: LSCC3000X40
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 30959.00
El producto no está disponible para la venta en este momento
Características
Product Description
Texas Instrument's CC3000 module is a self-contained wireless network processor that simplifies the implementation of Internet connectivity using simple Link Wi-Fi technology. CC3000's Simple Link Wi-Fi solution minimized the software requirements of the host microcontroller (MCU) and is thus an ideal solution for embedded applications using any low-cost and low-power MCU.

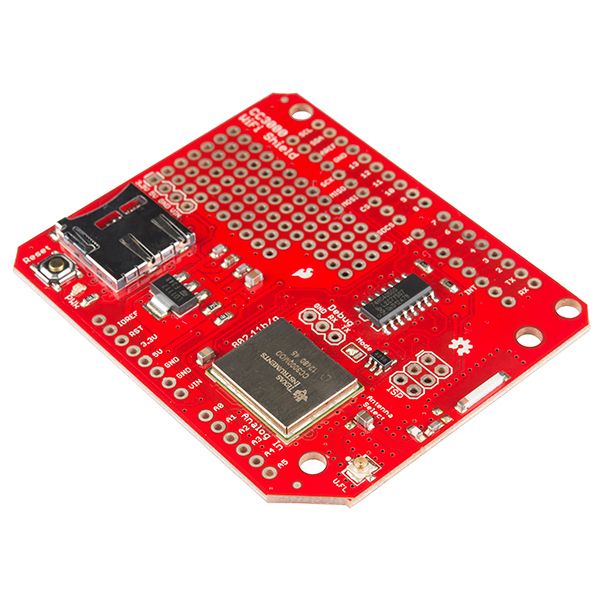

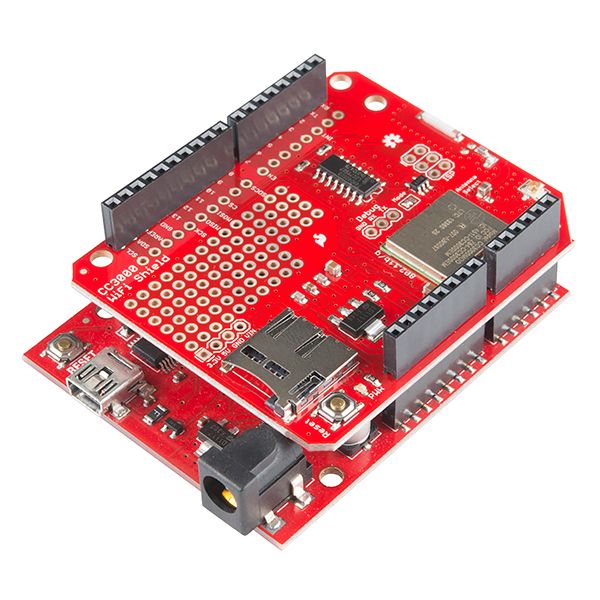

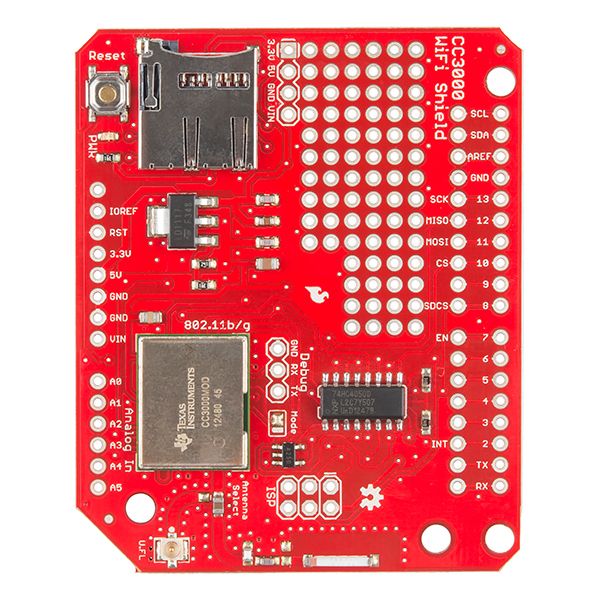

This CC3000 Arduino shield Integrated a onboard LDO, a chip Antenna, and a level logic shifter. It works fine with Arduino or Arduino compatible main board. It uses SPI for communication so you can push data as fast as you want or as slow as you want. It has a proper interrupt system with IRQ pin so you can have asynchronous connections. It supports 802.11b/g, open/WEP/WPA/WPA2 security, TKIP & AES. A built in TCP/IP stack with a "BSD socket" interface supports TCP and UDP in both client and server mode, with up to 4 concurrent socket connections.
Download:
cc3000_4d.pdf (1088 Kb)
cc3000_library.zip (104 Kb)
