SmartMatrix Shield for Teensy 3.1
SmartMatrix Shield para Teensy 3.1. Permite adicionar gráficos a tu matriz LED.
COD: D001902
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 43363.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION

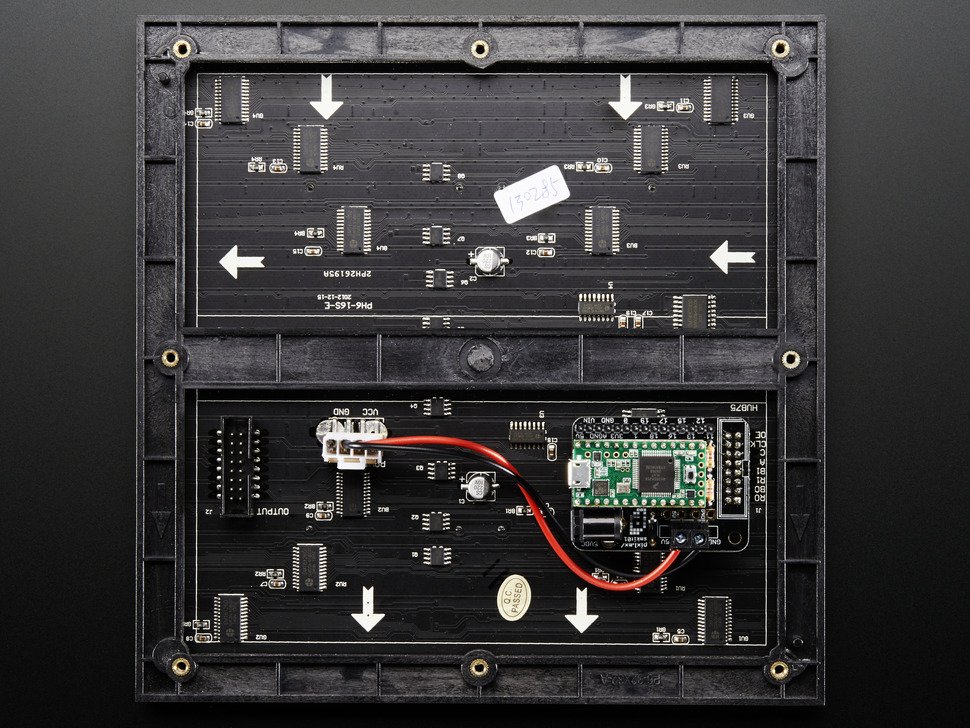

So you have a Teensy 3.1 and a Medium 16x32 RGB LED matrix panel or Medium 32x32 RGB LED matrix panel and you want an easy way to add graphics to your matrix without having to toss aside your Teensy or do too much soldering. Enter the SmartMatrix Shield for Teensy 3.1.
The SmartMatrix shield has 13 I/O pins that larger matrices need to drive the display. It also adds a place to drive an external power supply and conveniently brings out the Teensy's free signals to a header.

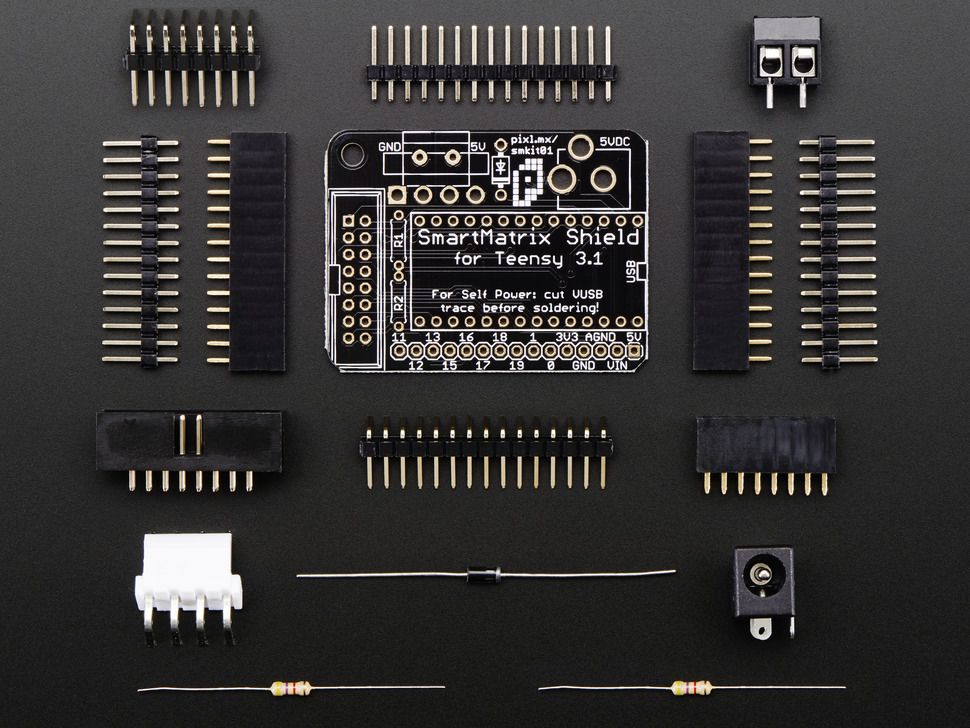

It's a great board for easily expanding your Teensy's capabilities. Comes as a kit of components, but all fairly easy to solder, as it uses all through-hole components. You'll also need to program in your Teensy with the SmartMatrix code available on the project website.
TECHNICAL DETAILS
Check out PixelMatix's ShieldMatrix kit assembly guide
The Teensy 3.1 specs are the best source for general info on the capabilities of the Teensy 3.1 when used in the shield.

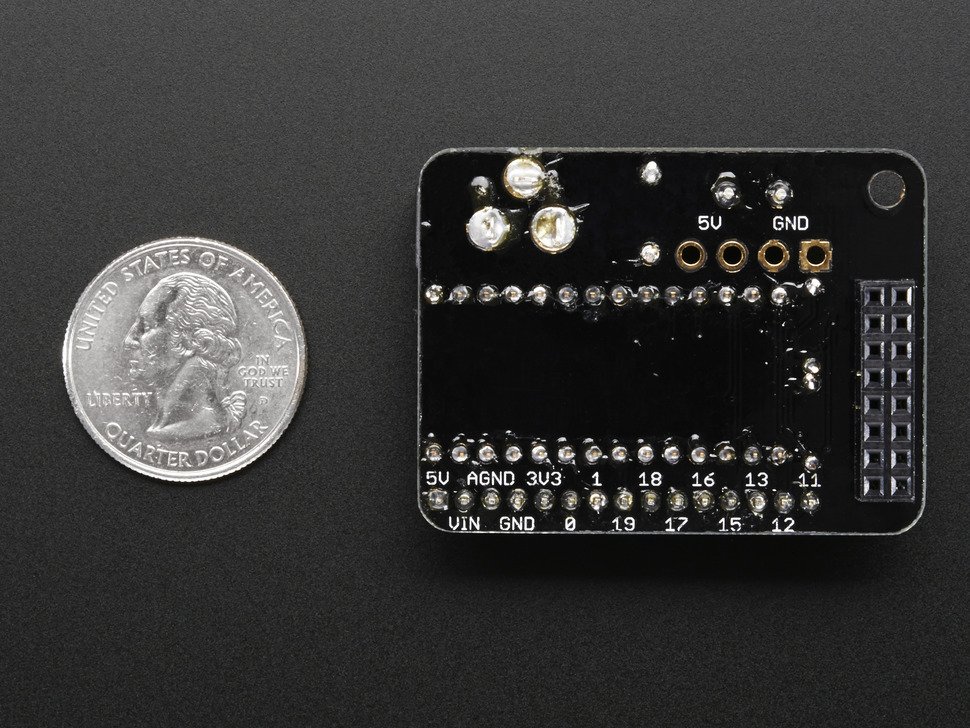

- Dimensions: 49mm x 37mm x 2mm / 1.9" x 1.5" x 0.08"
- Height w/ Components: 15mm / 0.6"
- Weight: 21.5g
Revision History:
- As of 11/24/2014, we are shipping a SmartMatrix shield that includes a 15-pin male R/A header and a 2x8-pin male R/A Header.
