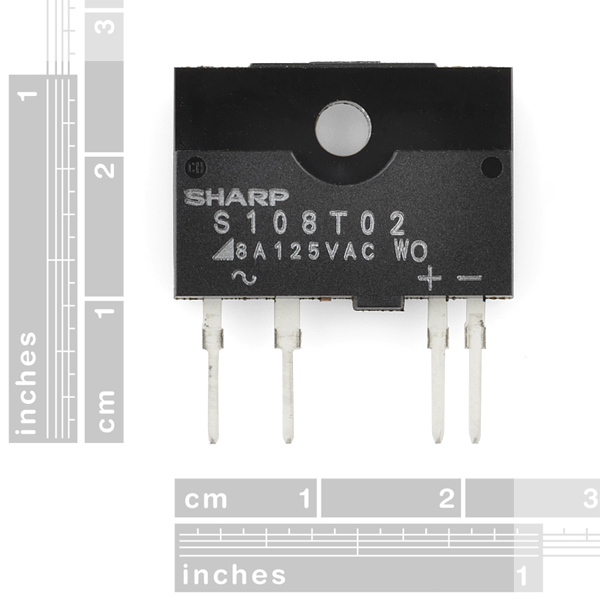

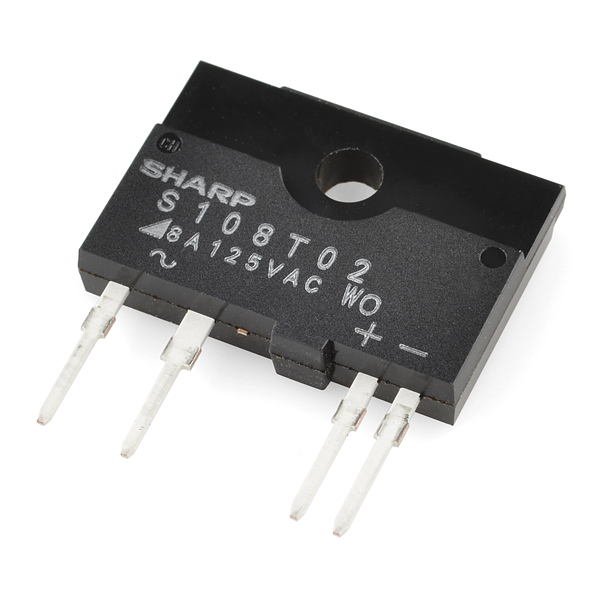

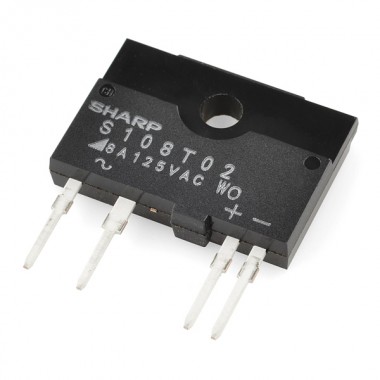

Solid State Relay - 8A
Relé de estado solido - 8A, recomendado para tensiones de hasta 125VAC.
COD: SFCOM10636
Peso: 0.003 Kg
Disponibilidad: En Stock
ARS 12861.00
El producto no está disponible para la venta en este momento
Características
A solid state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage AC loads from lower voltage DC control circuitry. Solid state relays, have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there’s no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.
They accomplish this by using infrared light as the ‘contact,’ a solid-state relay is really just an IR LED and a phototriac sealed up into a little box. Thanks to the fact that the two sides of the relay are photo-coupled, you can rely on the same type of electrical isolation as in mechanical relays. These particular solid state relays can switch 400V and 8A.
Documents:
- Datasheet
- Example Layout
s108_208t02_series.pdf (240 Kb)
ssr-board-v10.zip (91 Kb)
