USB to UART Bridge - FT232RL
Puente USB a UART - FT232RL
COD: SFCOM00650
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 9560.00
El producto no está disponible para la venta en este momento
Características

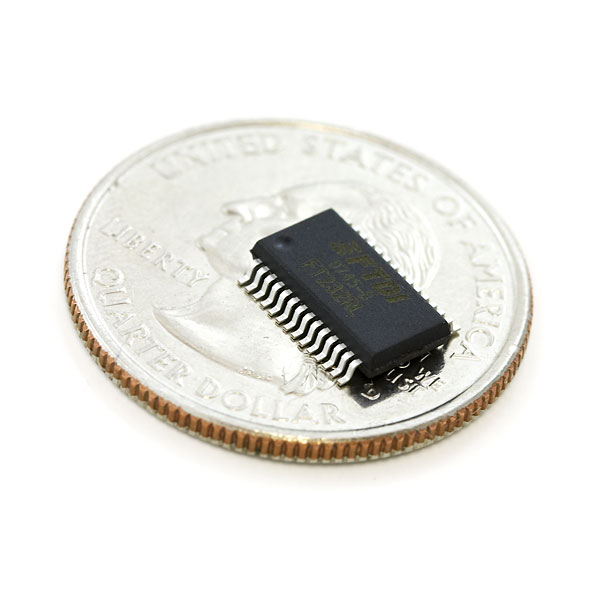

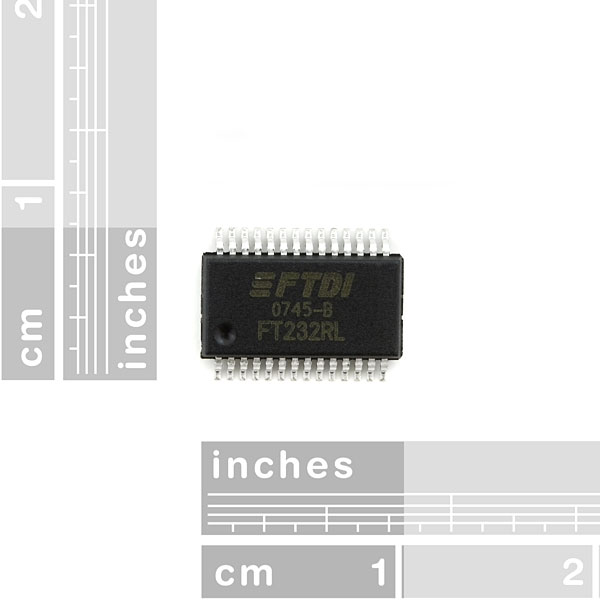

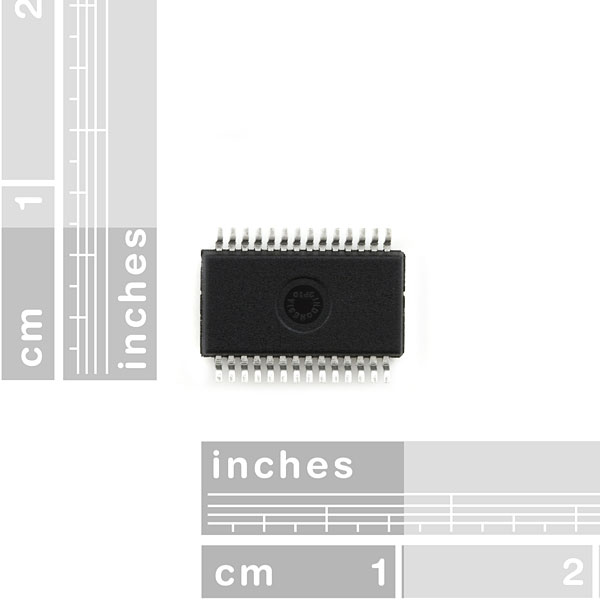

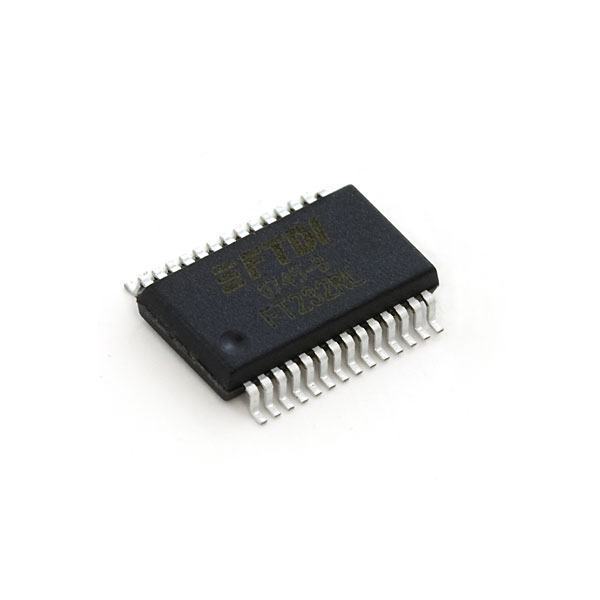

The ever popular FTDI USB to UART IC now comes with built-in EEPROM and built-in oscillator! This IC comes in a 28-pin SSOP package and can be soldered by hand. The FT232R is the latest IC from FTDI requiring very few external components for operation!
Breakout board now available below.
Features:
- Implements full v2.0 USB protocol
- Needs no external crystal
- Requires only decoupling caps
- Internal EEPROM for device ID and Product Description strings
- Royalty-Free Driver support for Windows, Linux, and Mac OSX
Documents:
- FTDI website
- FT232R Datasheet v1.04
- FTClean (for removing extraneous/old ports)
- FTDI Driver Page
ft232r_v104.pdf (796 Kb)
