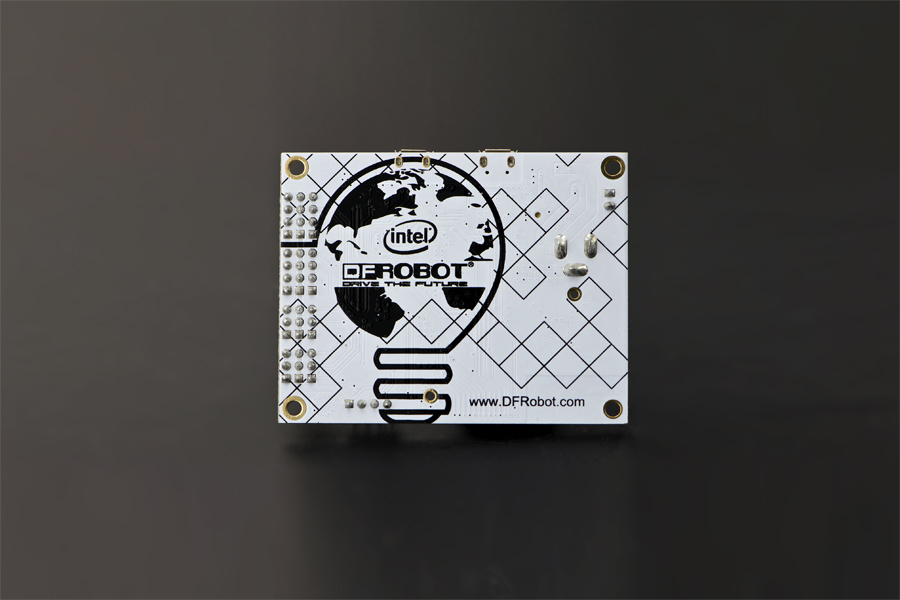

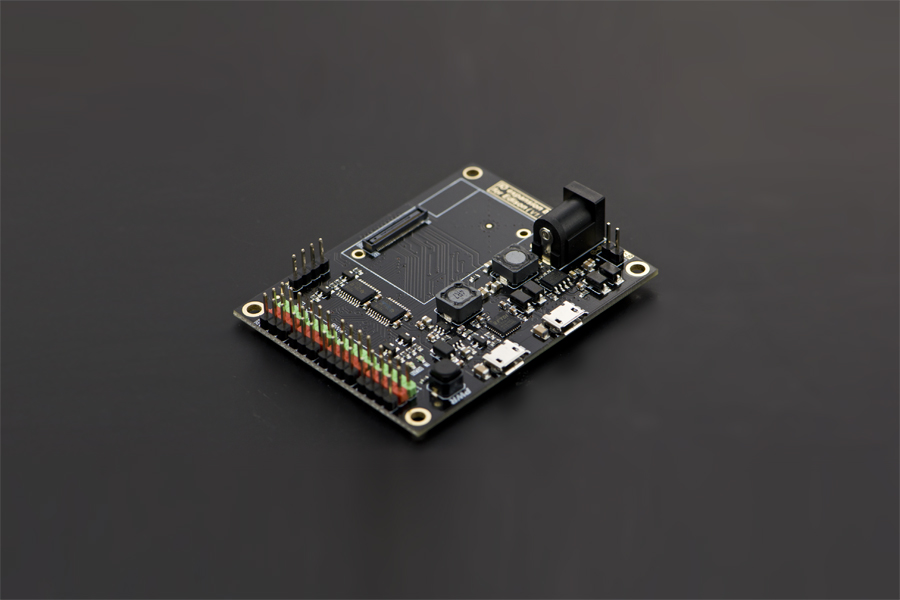

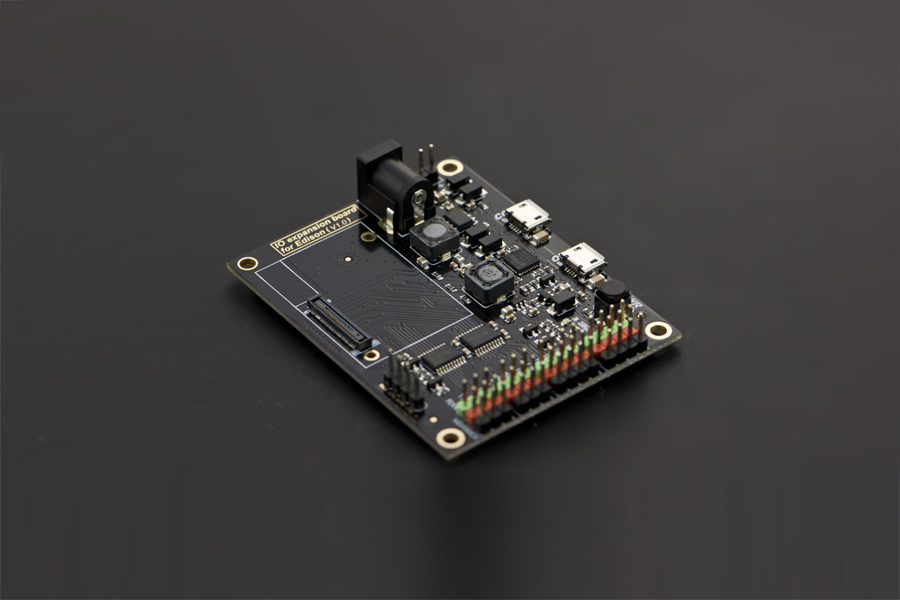

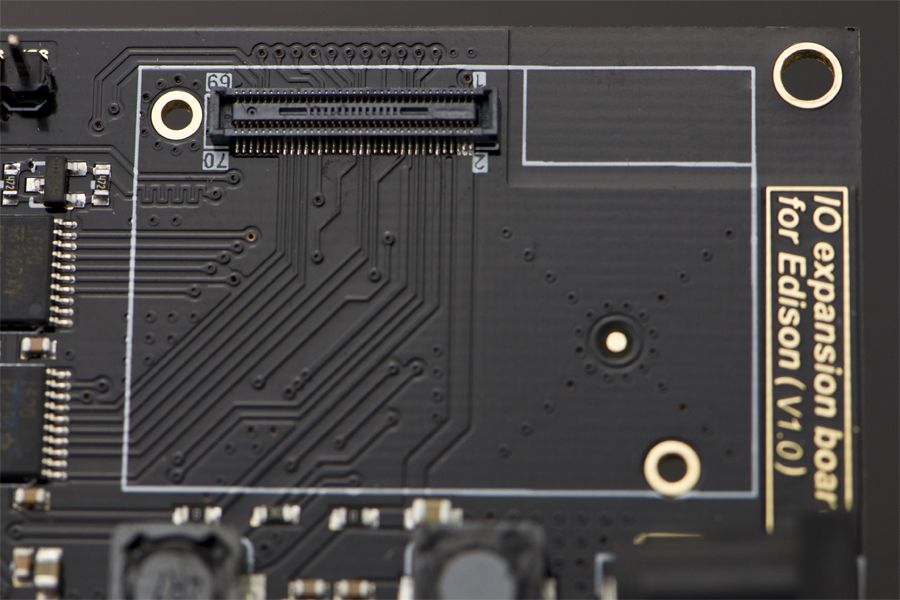

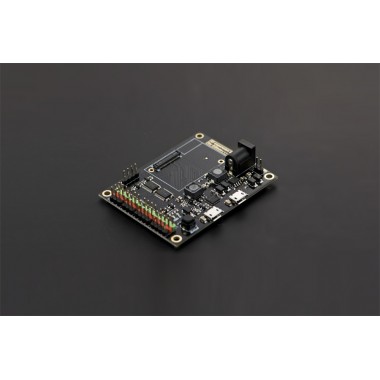

IO Expansion Shield for Intel Edison (without Edison)
Extiende el alcance del Edison al sensado del mundo físico, y la prepara para interactuar a través de comunicación inalámbrica. Compatible con plataforma Arduino y Linux, soporta entornos de desarrollo Java y C.
COD: DFR0338
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 33410.00
El producto no está disponible para la venta en este momento
Características
INTRODUCTION
IO Expansion Shield is one of the market favourites. Fast robotics prototyping made affordable and simple thanks to this design. Soldering and wiring often becomes a problem when a bridged connection happens and components break sometimes, increasing time and cost. The IO Expansion Shield for Edison extends Edison's powerful scope into sensing the physical world, and prepares it ready for interaction through wireless communication. This IO expansion board for Edison is compatible with Arduino open source platform and Linux, and supports Java and C development environment. It can also be used as a standalone communication platform for software like flash, processing, Max/MSP and VVVV.
The IO Expansion Shield for Edison adopts DFRobot's classic color code for sensors/actuators input/output. The 3 pin format for Signal, Voltage and Ground is extremely intuitive, especially if used altogether with our increasingly large range of modules, sensors and devices that just fit.
The IO Expansion Shield for Edison adopts DFRobot's classic color code for sensors/actuators input/output. The 3 pin format for Signal, Voltage and Ground is extremely intuitive, especially if used altogether with our increasingly large range of modules, sensors and devices that just fit.
SPECIFICATION
- Operating Voltage: 5V
- Output Voltage: 5V/3.3V
- Input Voltage(limits): 6-20V
- Digital I/O pins: 14
- DC Current per I/O Pin: 10mA

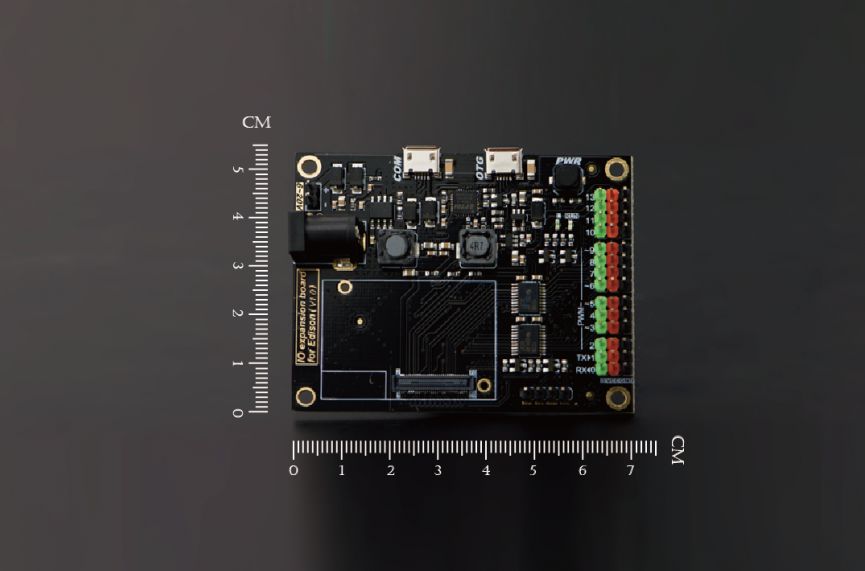

- Size: 70x55x15mm
- Weight: 30g
- Digital I/O pins: D0-D13
- PWM Output interface: 4 (Digital pins D3, D5, D7 and D9)
- Support USB power and external power supply switch
- Support 1 x I2C interface
- Support Broadcom 43340 802.11 a/b/g/n dual band (2.4G and 5GHz) WiFi
- Support Bluetooth 4.0
SHIPPING LIST
- IO Expansion Shield for Edison (without Edison) x1
io_expansion_board_for_edison_schematic.pdf (79 Kb)
