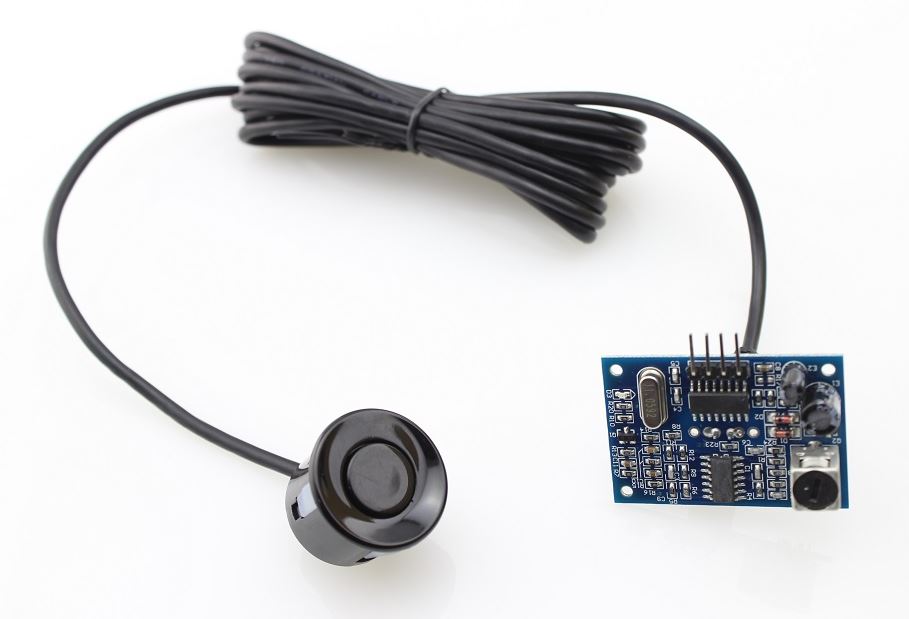

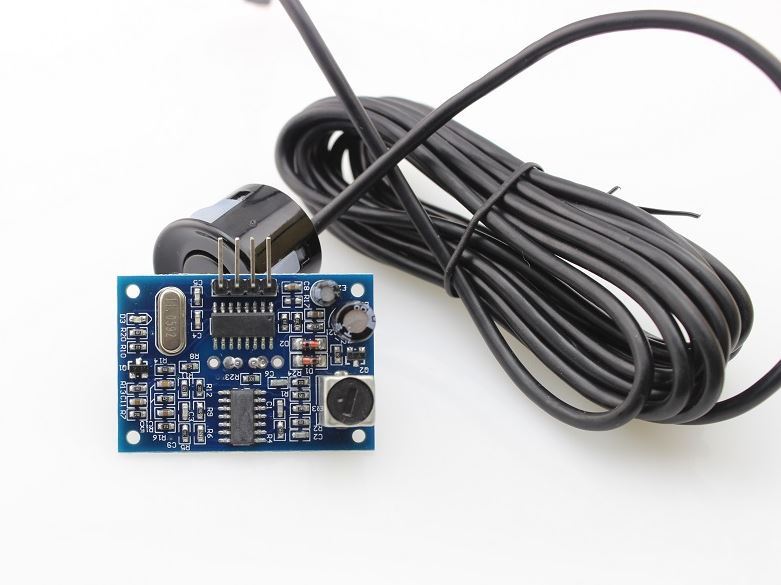

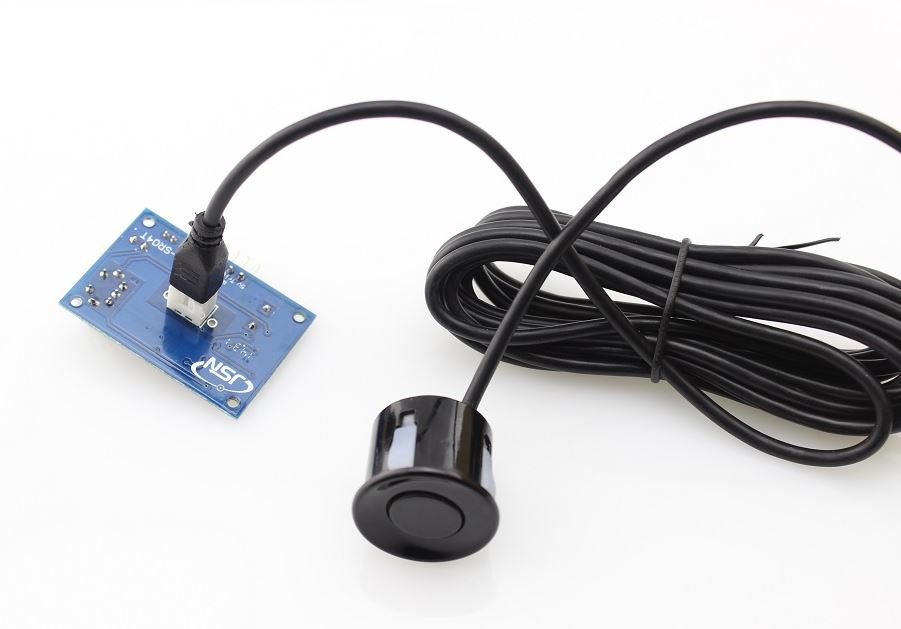

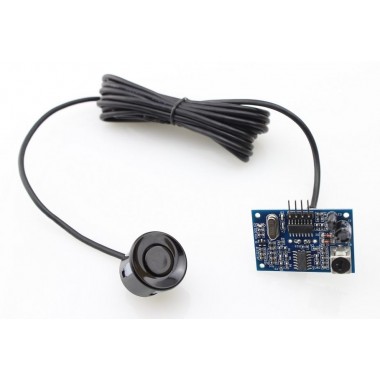

Water proof Integrated Ultrasonic Ranging Module- JSN-SR04T
Sensor de distancia ultrasónico, con cable, para trabajar en entornos húmedos (admite condensación, pero no es sumergible). Long cable ~ 240cm.
COD: ESP0433B02
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 26455.00
El producto no está disponible para la venta en este momento
Características
There are many ultrasonic ranger module on the market, but sometimes, these kind of sensor needs to work in conditions more than the Lab. This water proof ultrasonic sensor meets this requirement. It has a good performance and almost the same usage of HC-S04 module.
compares to the SR04T module, this module is more easy to install anf waterproofing.
Features
- small size, easy to use
- low voltage, low power consumption
- high accuracy
- strong anti-jamming
- integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
Specification
- Working voltage: DC 5V
- Static working current: 5mA
- Working current: 30mA
- Acoustic emission frequency:40KHz
- Wiring:+5V (positive); Trig (control); Echo (receive); GND (negative);
- Long cable ~ 240cm (2m 40cm)
Application
- Horizontal distance messurement
- Obstacle avoidance, automatic control
- Traffic control
- Security, industrial control

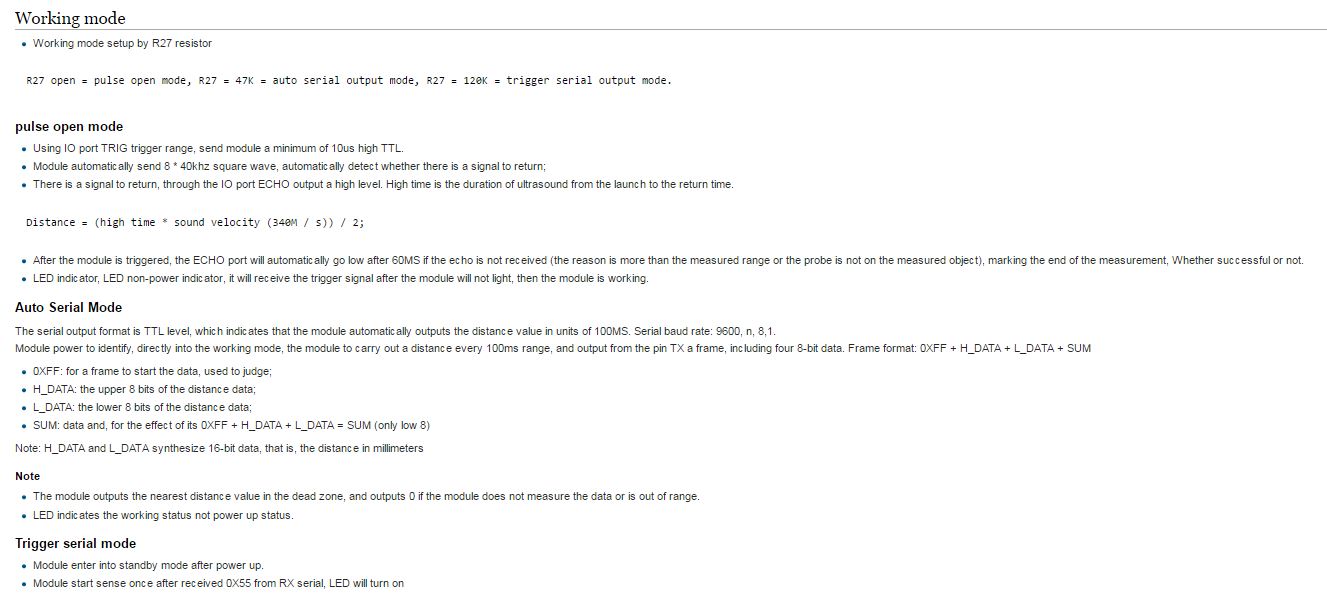

Usage
Funciona con la librería del HC-SR04, disponible para ser descargada.
Comentarios
Escribir ComentarioOpenHacks (07/12/2016 - 11:37)
Hola Joel, tenemos stock. Funciona con la librería del HC SR04, disponible para descargar en esta publicación. Saludos!
Guerrero (06/12/2016 - 03:13)
Hola, me confirmas que tenes stock de este producto? funciona con la libreria del HC SR04?. Saludos.
