Mini Rboard
Placa Arduino compatible, equipada con un relé, una interfaz nRF24L01 y una interfaz receptora de 433M RF.
COD: IM140704001
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 26554.00
El producto no está disponible para la venta en este momento
Características
Overview

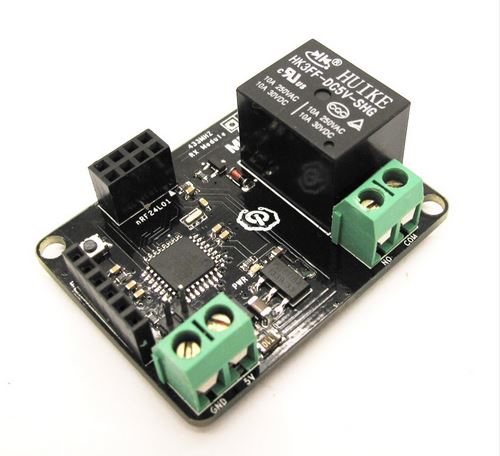

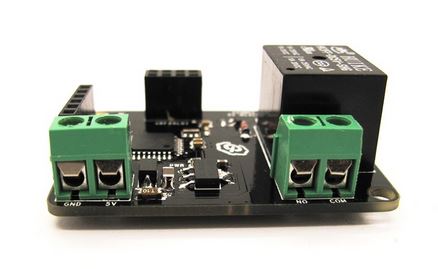

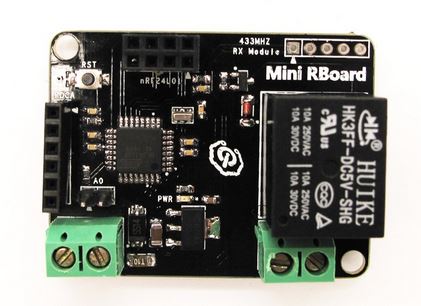

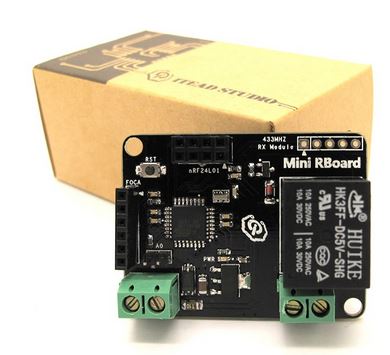

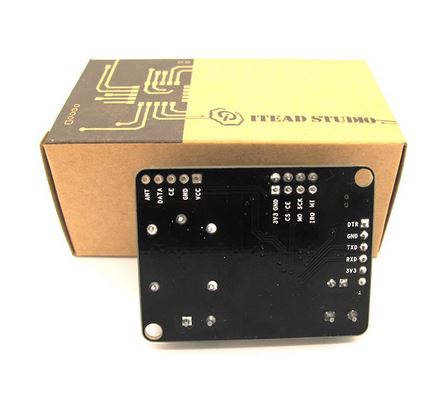

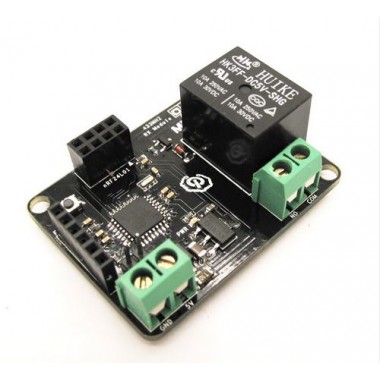

Mini RBoard is an Arduino compatible mainboard, which is equipped with a relay, a nRF24L01 interface and a 433M RF Receiver interface. It can be used in remote control switches. With a small size, it can be installed in some power strips to work as a switch for an intelligent power strip.
| Microcontroller | ATMega328P |
|---|---|
| Max Frequency | 16MHz |
| RAM Capacity | 2K |
| FLASH Capacity | 32K |
| External Resources | Onboard Debugger |
| Power Supply | External 5V |
| I/O Operation Level | 3.3V |
| Board Size | 37.34mm X 49mm X 1.6mm |
| Model | IM140704001 |
| Version | 1.0 |
| Weight | 21.00g |
| Accessories | No |
