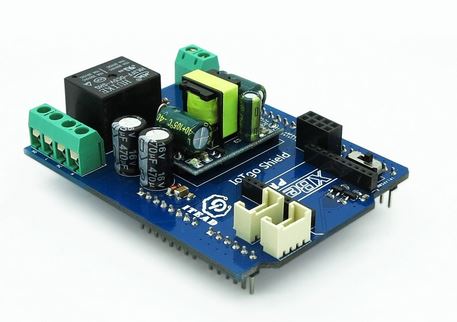

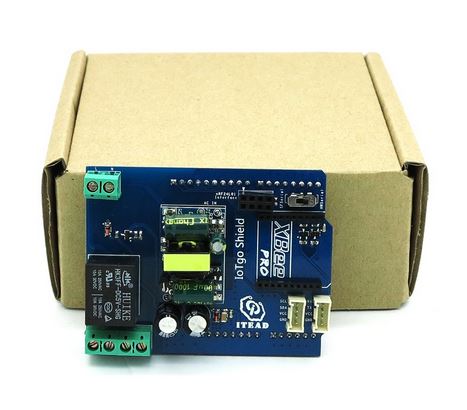

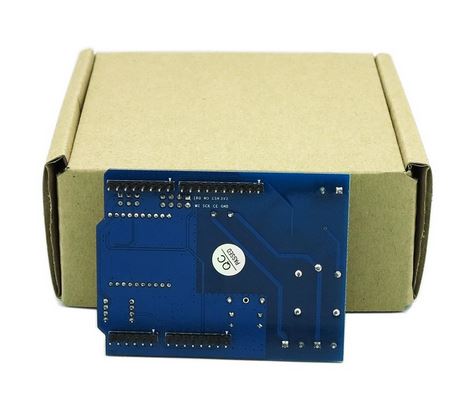

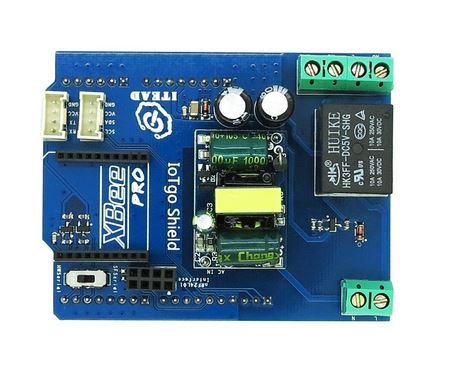

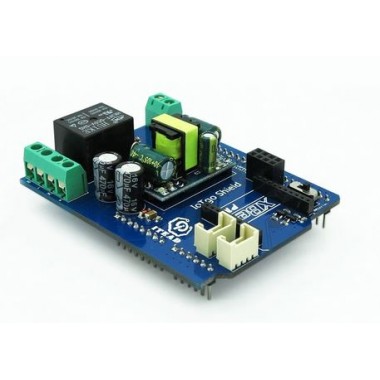

IoTgo Shield
Shield IoTgo para Arduino, incluye fuente de alimentación AC 85~260V a DC 5V, e interfaces para Xbee y Nrf24l01.
COD: IM141125003
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 30299.00
El producto no está disponible para la venta en este momento
Características
Overview
With an on-board AC-DC module, Arduino IoTgo shield can transfer AC 85~260V to DC 5V, so it can be the power supply to arduino. Meanwhile, Arduino mainboards can control some home applications by setting the relays of IoTgo shield. Moreover, This shield has an Xbee interface and a Nrf24l01 interface. By using IoTgo shield, you can make some remote control home application projects with no effort.
Specification
| PCB size | 76.96mm X 59.56mm X 1.6mm |
| Power supply | AC 85~265V 50/60Hz |
| Power output | DC5V |
Electrical Characteristics
| Min | Type | Max | Unit | |
| Power Voltage | 85 | 220 | 265 | AVCC |
| AC-DC 5V Output average current | 0 | - | 700 | mA |
| Max load current(relay) | 3 | A | ||
| Ripple wave voltage(Vpp) | 80 | 150 | 200 | mV |
