Crystal SMD 16MHz
Cristal SMD 16MHz
COD: SFCOM00094
Peso: 0.000 Kg
Disponibilidad: Sin Stock
ARS 2524.00
El producto no está disponible para la venta en este momento
Características

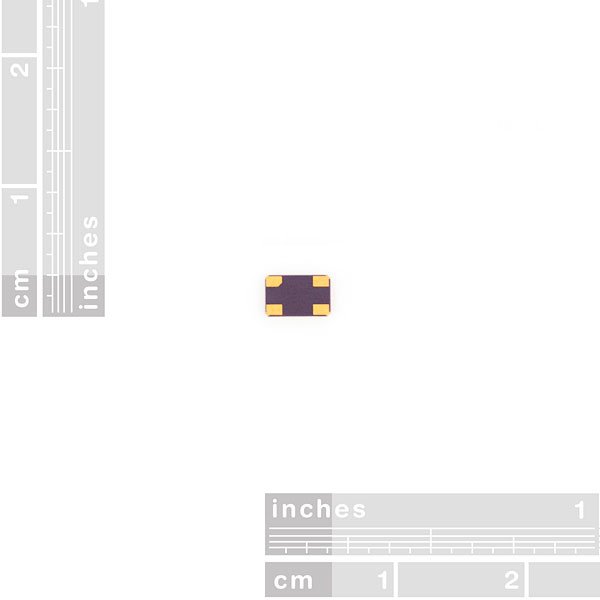

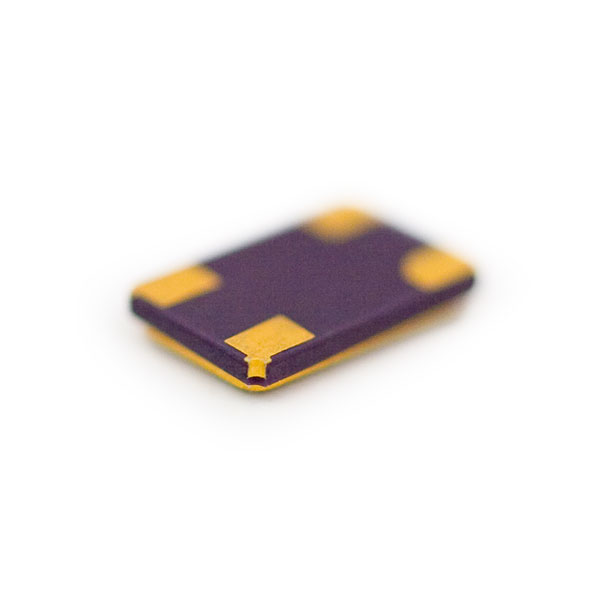

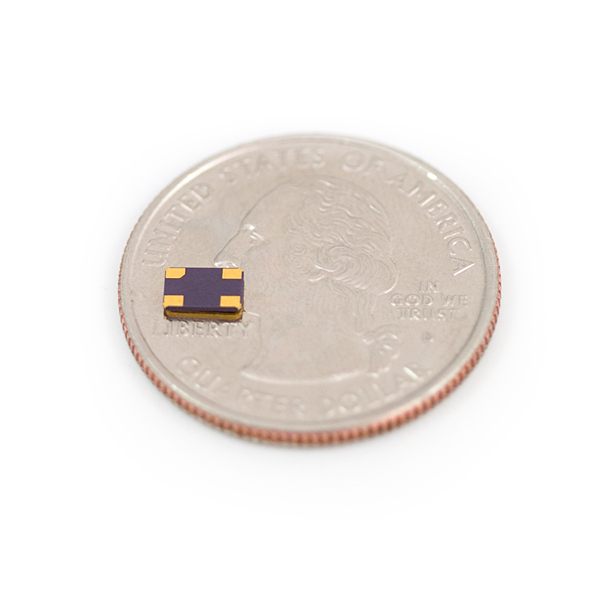

These are very small surface mount quartz crystals used where size is a concern. Ideal for use with the nRF2401 ICs.
Features:
- Small 5x3.2mm footprint
- Operating temperature: -40-85C
- Frequency Tolerance: +/- 20ppm
- 18pF load capacitance
Documents:
- Datasheet
spk-5032-16mhz.pdf (222 Kb)
