Productos
White Enclosure for Arduino - Electronics enclosure - 1.0
Gabinete plastico -blanco- para Arduino
COD: D000271
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 32615.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION
We are very excited to have one of the first (and we think the best) Enclosure for Arduino & project box! Here are all the details:
- Dimensions: 3.6" x 5" x 1.35"
- Injection molded ABS plastic
- Enclosure is easy to machine, drill, cut and shape to what you need
- Brass screw inserts (can be used and reused many times, very durable!)
- Fits standard Arduinos and 16 x 2 LCDs
- Fits Arduino with Adafruit Protoshield on top with .45" clearance
- Pop out plates for GPS, buttons, sensors, switches, knobs, etc!
- Holds up to 4 AAA batteries internally using 2xAAA holders. AA's can squeeze in but the case wont close nicely so we suggest AAA's
- Comes with screws for the LCD, Arduino and case
- Made in Canada!

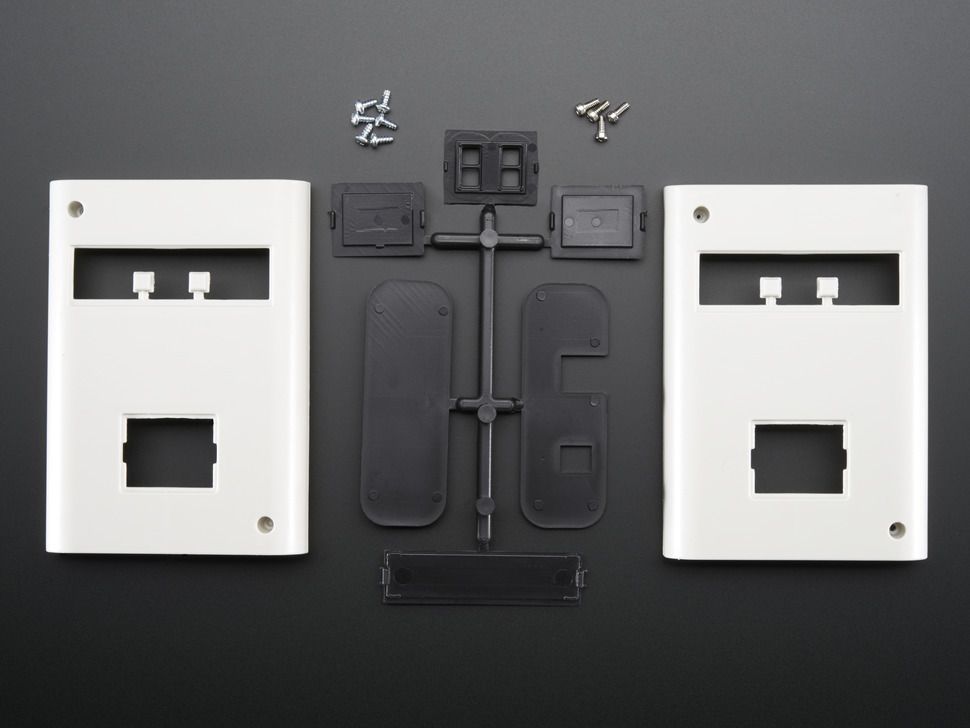

Comes with all parts shown.

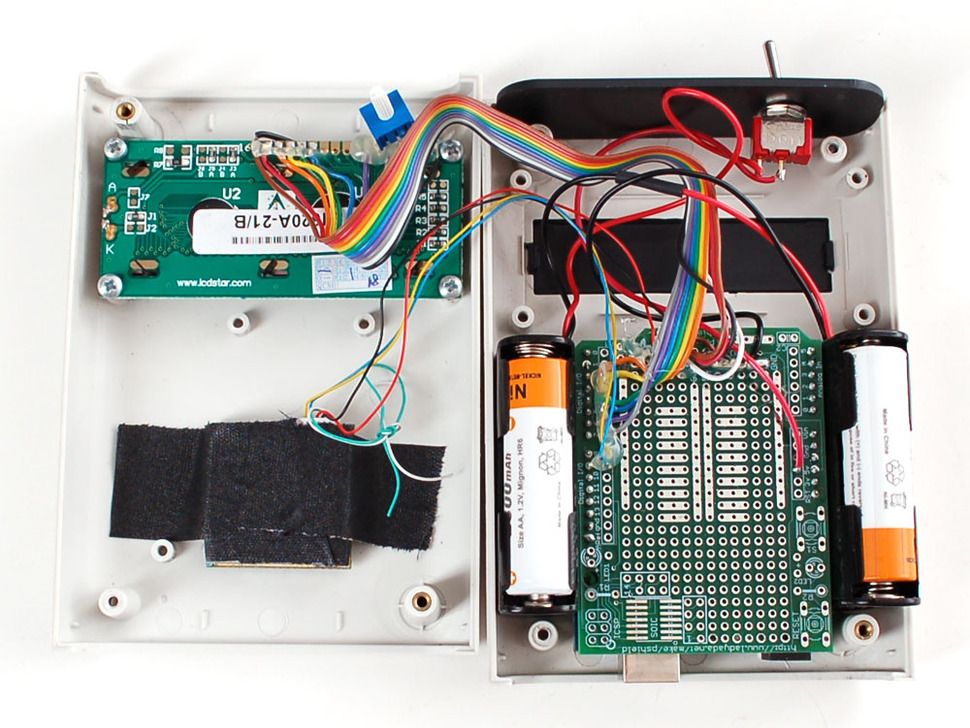

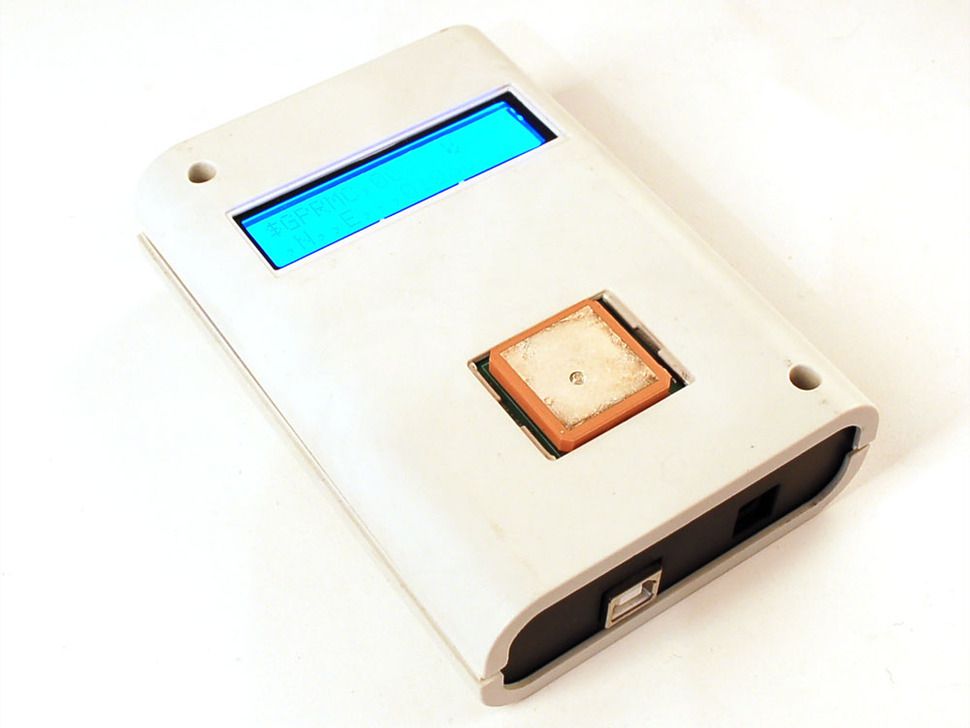

Want some ideas of how to use it? We have a tutorial showing how we made a portable data-logger. Lots of details on how to attach an LCD, drill and add mechanical connections, etc.
-
Dimensions :
- 3.6" x 5" x 1.35"
- 91mm x 126mm x 34mm
- 75g / 2.64oz
