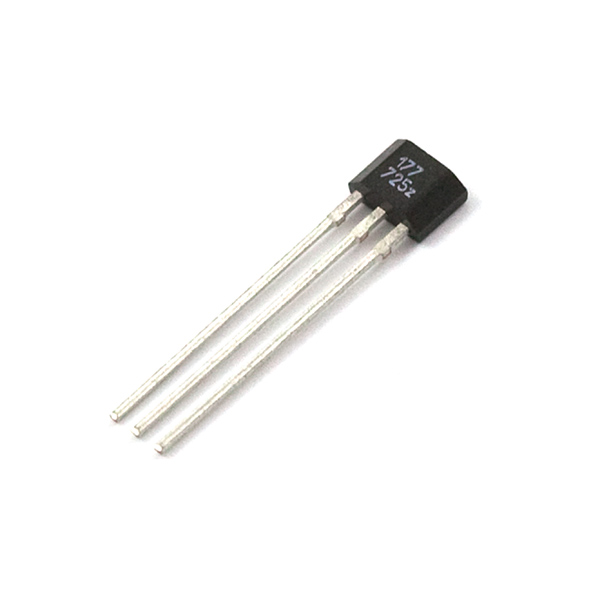

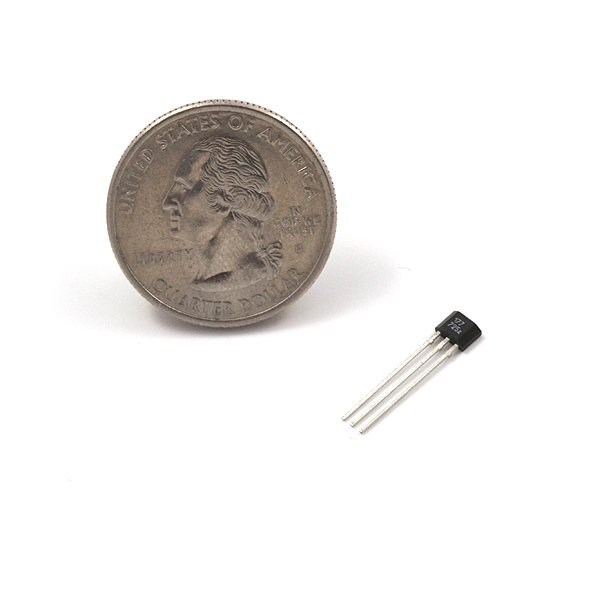

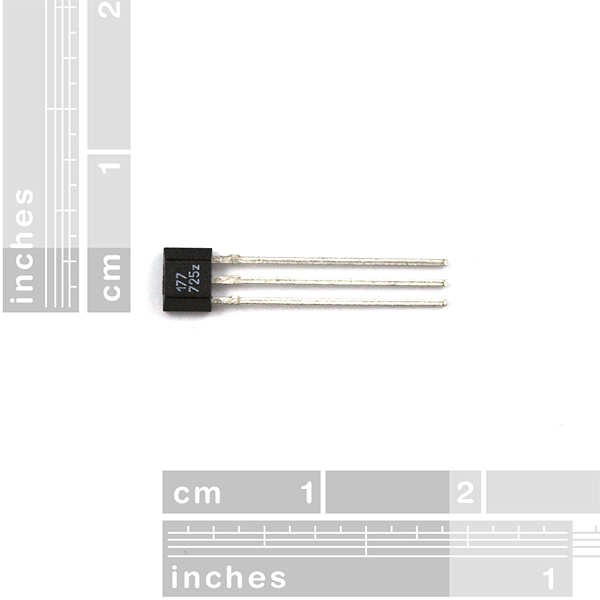

Hall Effect Sensor - US1881
Sensor de Efecto Hall
COD: SFCOM09312
Peso: 0.000 Kg
Disponibilidad: En Stock
ARS 2483.00
El producto no está disponible para la venta en este momento
Características
The US1881 is an integrated Hall effect latched sensor. That’s nice but what does it do? Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence sensor. A reed sensor also works nicely, but can be limited by the glass encapsulation and size. A hall effect sensor is much smaller, but can handle less current than a reed switch.
The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.
If a magnetic flux density larger than threshold Bop, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).
Features:
- 3.5V to 24V DC operation voltage
- Low current consumption
- Temperature compensation
- Wide operating voltage range
- Open-Collector pre-driver
- 50mA maximum sinking output current
- Reverse polarity protection
- Lead Free Package: TO-92
Documents:
- Datasheet
- Bildr Tutorial
Galería de Imágenes
Archivos
hall-us1881eua.pdf (500 Kb)Comentarios
Escribir ComentarioOpenHacks (26/02/2016 - 17:29)
Hola Daniel, este sensor tiene una salida fija en función de la polaridad magnética que detecte. Si acercas un polo norte, su salida será baja, y cuando acerques un sur, alta. Mas específicamente, su salida funciona como colector abierto. Saludos!
daniel (26/02/2016 - 17:01)
con este sensor se puede hacer como un potenciometro acercando y alejando un iman? tenes imanes.
