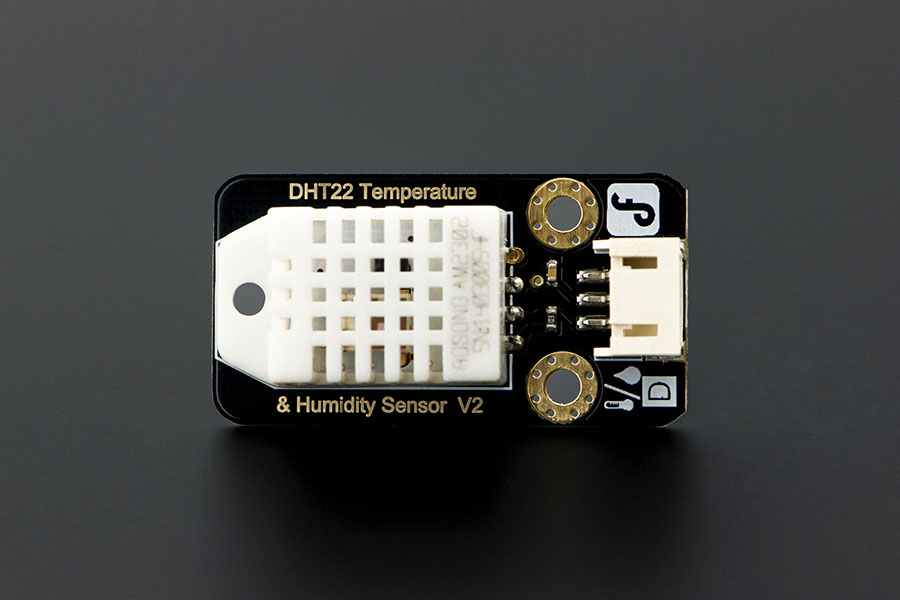

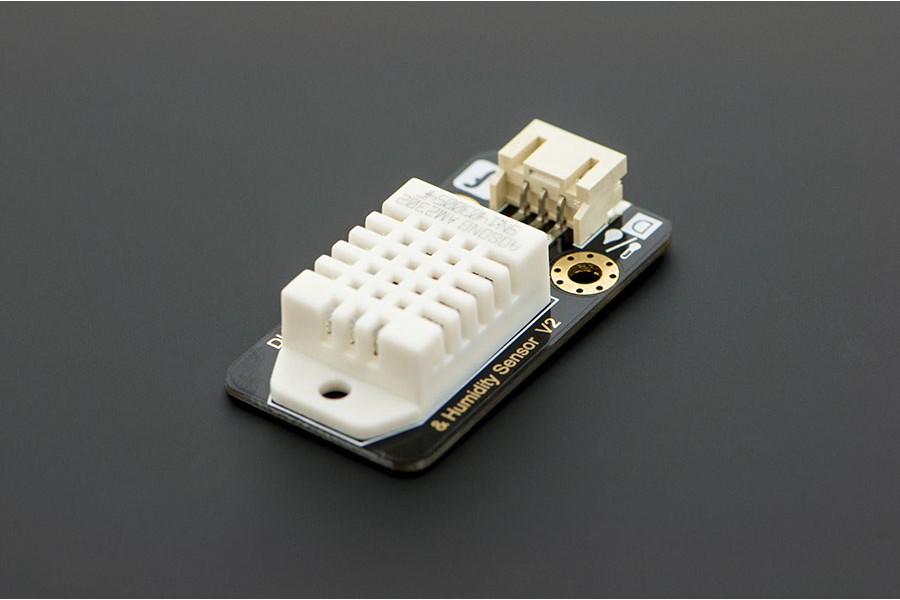

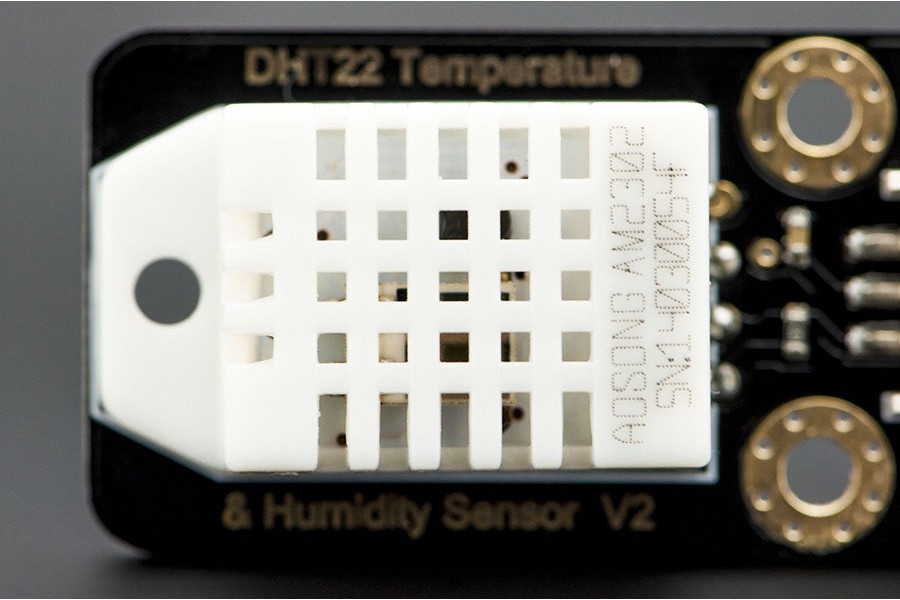

DHT22 Temperature and Humidity Sensor

Sensor de temperatura y humedad DHT22, montado en circuito impreso, con un rango de [ -40 , 80 ] ℃ y [ 0 , 100 ] %RH

COD: DFSEN0137

Peso: 0.010 Kg

Disponibilidad: Sin Stock

ARS 21150.00

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

DHT22 is a compound digital temperature and humidity sensor which outputs calibrated digital signals. Thanks to the dedicated digital module acquisition technology and temperature and humidity sensing technology applied to the module, DHT22 comes with very high reliability and excellent long-term stability.

DHT22 includes a capacitive moisture sensor and a NTC temperature measuring element which is connected to a high-performance 8-bit microcontroller, resulting an excellent quality, super fast response time, strong anti-interference ability and extremely cost-efficient.

Compared with SHT10 temperature and humiditiy sensor, DHT22 enjoys a higher precision and lower price, making it an ideal choice for mid price range, high performance temperature & humidity sensors.

If used together with Arduino expansion boards, you'll easily get interactives of correlation between temperature and humidity perception.

Note: DHT22 digital temperature and humidity sensor is designed for analog sensor interfaces. The analog interface is used as a digital one which will not occupy other digital interfaces on the Arduino. You can also use the analog-to-digital-converting cable to connect DHT22 to digital interfaces.

SPECIFICATION

Supply Voltage: 5V
Temperature Range:-40-80℃ / resolution0.1℃ / error <±0.5℃
Humidity Range: 0-100%RH / resolution0.1%RH / error±2%RH
Temperature Response Time: condition: 1/e(63%) Min 6s Max 20s
Humidity Response Rime: condition: 1/e(63%)25℃, 1m/s in the air <5S
Interface Sequence: VCC,GND,S
Size: 38 x 20mm

DOCUMENTS

Product Wiki

SHIPPING LIST

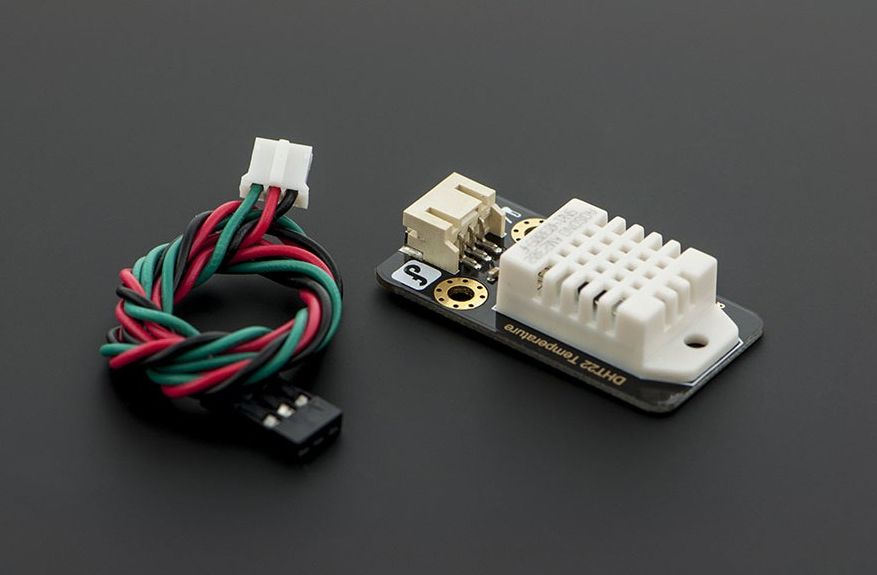

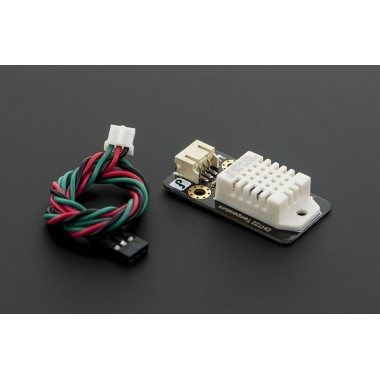

DHT22 sensor x1
Analog sensor cable x1

Galería de Imágenes

Archivos

Comentarios

Escribir Comentario

OpenHacks (17/10/2016 - 16:08)

Hola Marcelo, este sensor viene precalibrado y no es posible modificar su algoritmo de medición. Podes compararlo con un instrumento de mayor precisión y hacer una corrección por software. Saludos!

Marcelo (14/10/2016 - 20:10)

Buenas, tengo un proyecto para un criador de pollos y necesito medir la temperatura de la incubadora, la cual necesita una desviacion de no mas de 0.5 F. Este sensor especifica 0.5 C. Habra algun sensor o alguna calibracion para lograr mayor exactitud ? Gracias! Saludos
