1-Channel Solid State Relay Module
Módulo de relé de estado sólido de 1 canal. Soporta hasta 2A / 240VAC por canal.
COD: EARE00201SL
Peso: 0.015 Kg
Disponibilidad: En Stock
ARS 7145.00
El producto no está disponible para la venta en este momento
Características
Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock, and better moisture proof performance.

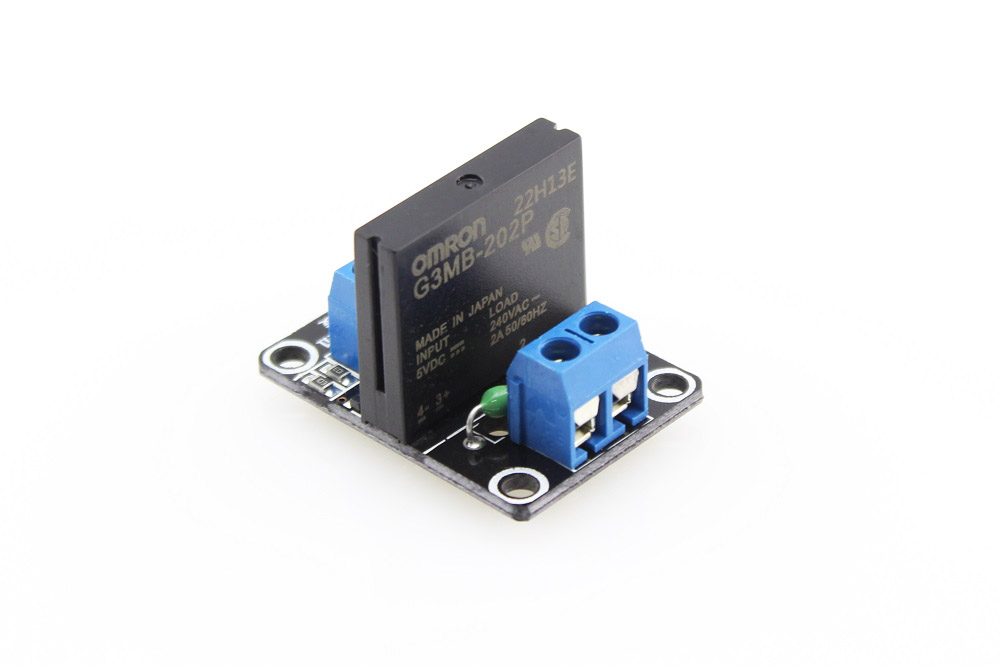

This Solid State Relay Module is based on Omron G3MB, to control current upto 2A@240VAC, can be widely used in various areas such as computer peripheral interfaces, temperature/speed light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.
Features
- Control Voltage:5V
- Working Current:12.5mA

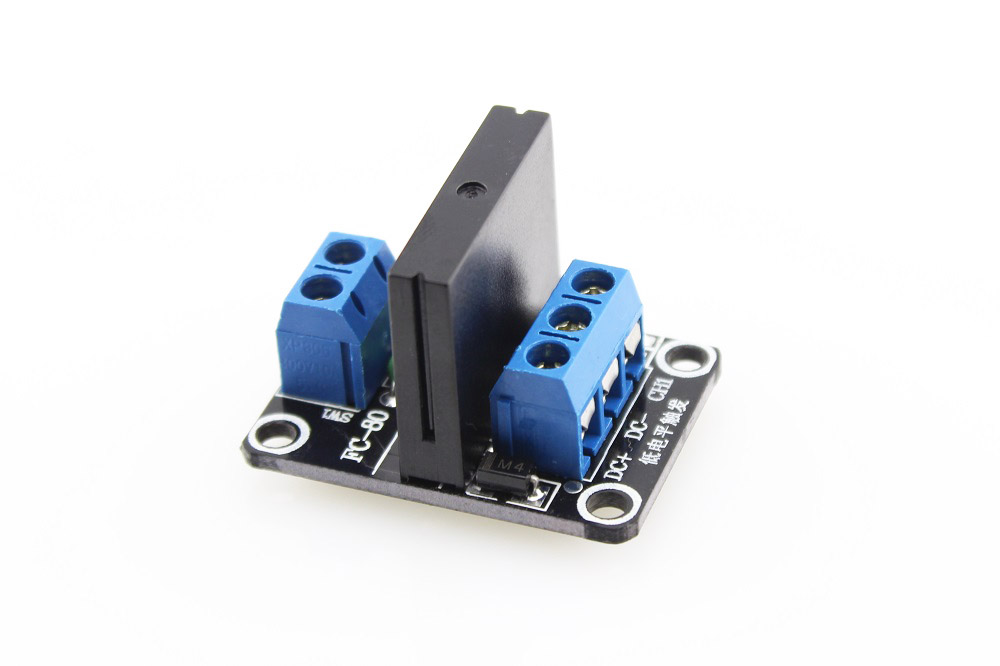

Instructions
- DC+:Connect power positive
- DC-:Connect power negative
- CH:Relay module signal trigger end(Low level trigger is effective)
- Wiring: When the triggered by low voltage, current will get through.
G3MB Datasheet (155 Kb)
