Hapkit Board

Hapkit Board

Combina un microcontrolador Atmega328 , micro ranura para tarjetas SD y driver de Motor L298P.

COD: SEKIT04300M

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 68247.00

Cantidad:

El producto no está disponible para la venta en este momento

Características


We worked with Stanford University to design the Hapkit Board, which supports the Hapkit open-source haptic device.
It merges a microcontroller Atmega328, Micro SD card Slot and Motor driver L298P, which can achieve these functions: control operation, data recording, motor driver. There are Hapkit-specific sensor connections: Mr Sensor connection and FSR Sensor connection. Standard Shield shape and Grove Interfaces, makes it convenient to connect more modules.

Its power can from Micro USB or 7v ~ 15v extern power. Only select extern power when you drive DC motors.



Specification
  • working Voltage: 5V ~ 15V
  • Micorcontroller: Atmega328p
  • Support SD Card Type: Micro SD card, FAT/FAT32 (less than 2G)
  • Max output current per channel: 2A
  • Output Duty Range: 0%~100%



You can develop a Hapkit using the Hapkit Board and following the instructions for building/purchasing the other hardware at http://hapkit.stanford.edu.

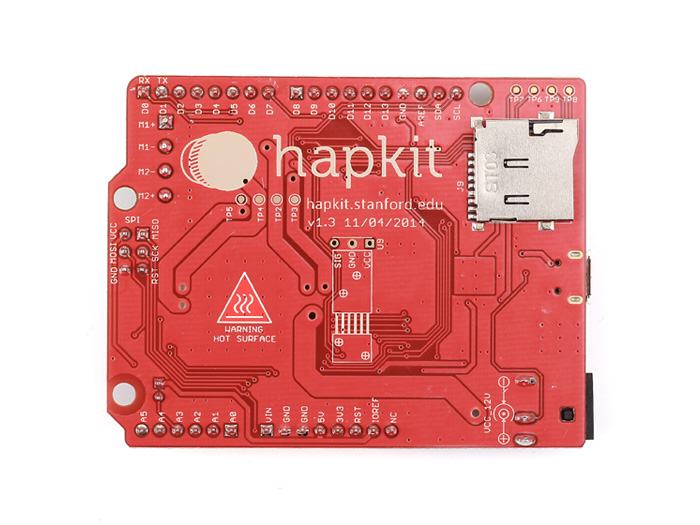

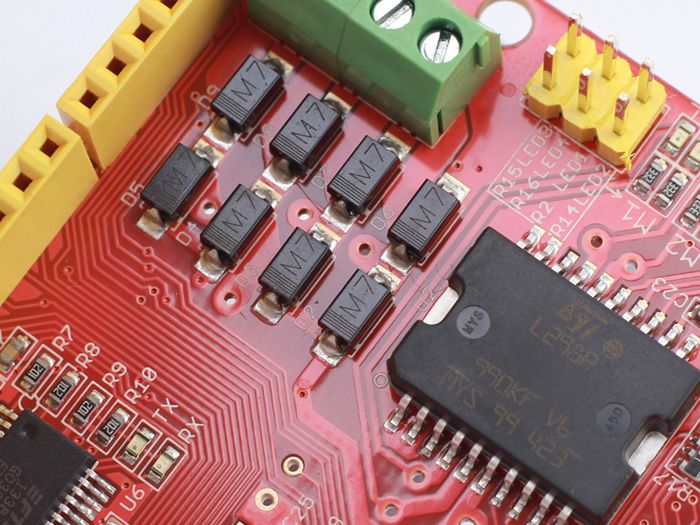

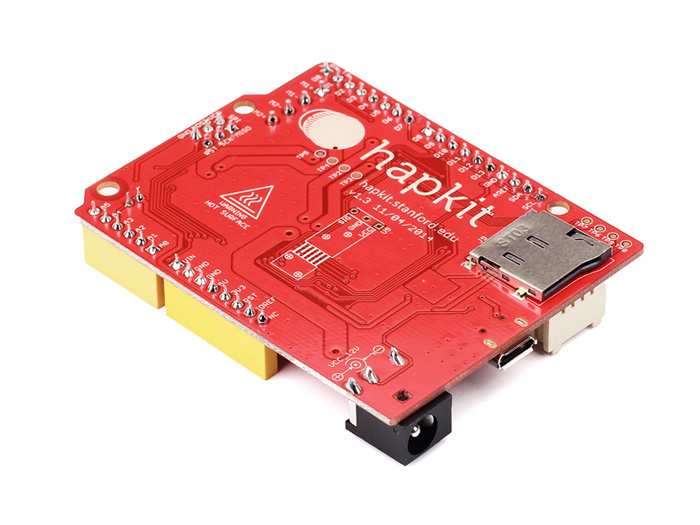

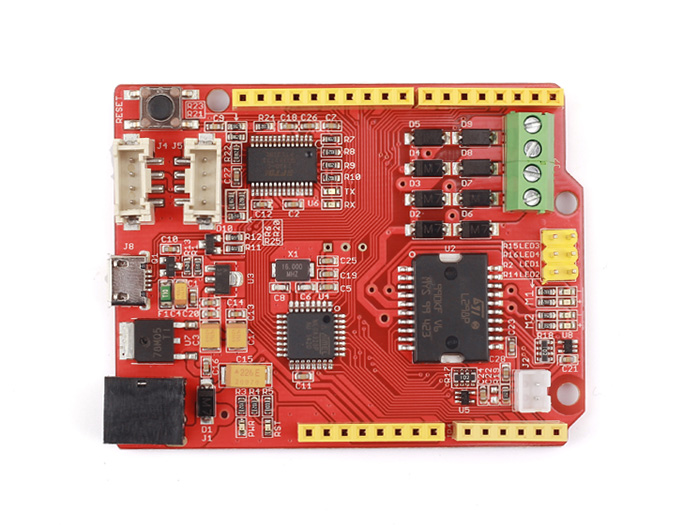

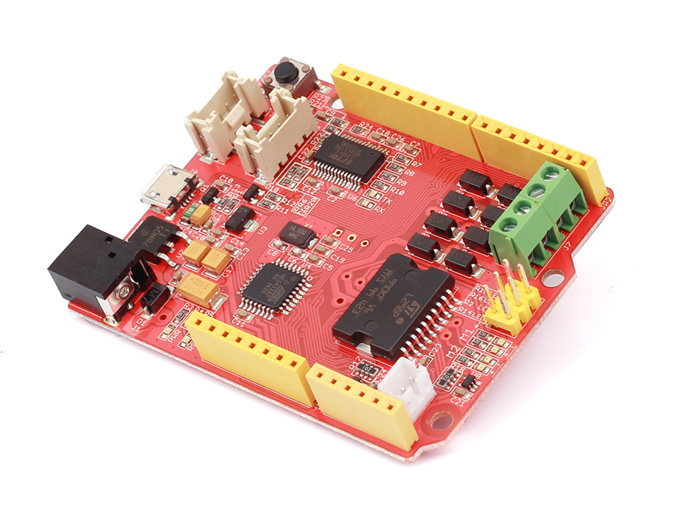

Galería de Imágenes
