SparkFun USB to Serial Breakout - FT232RL
Módulo breakout de FT232RL que permite conectar USB a dispositivos UART.
COD: SFBOB12731
Peso: 0.005 Kg
Disponibilidad: Sin Stock
ARS 25319.00
El producto no está disponible para la venta en este momento
Características

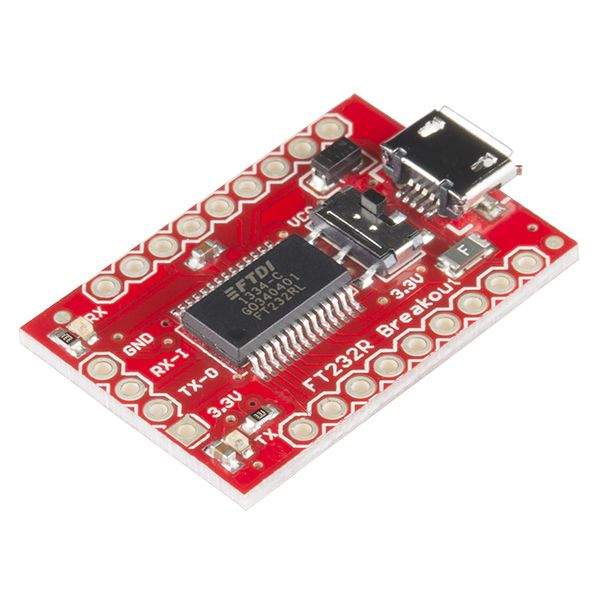

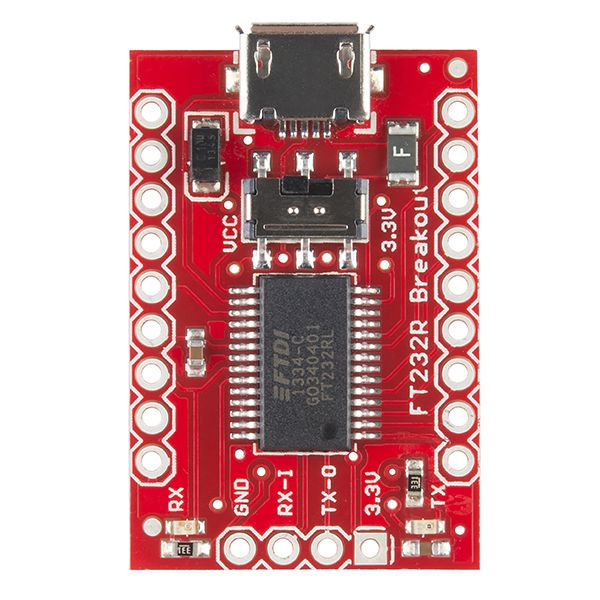

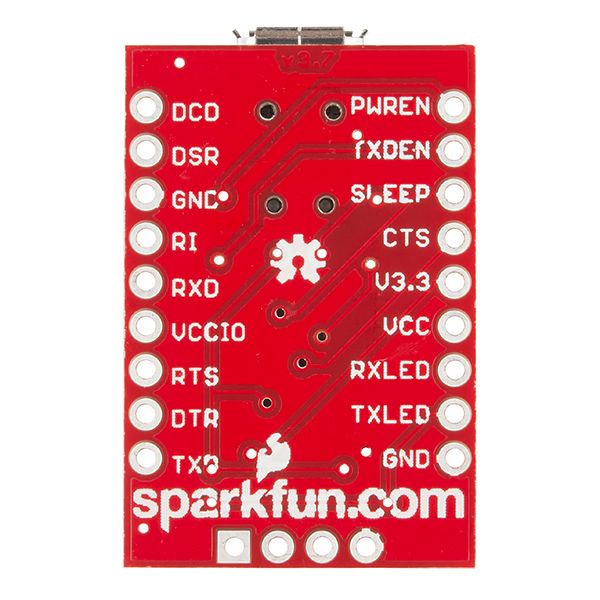

This is the SparkFun USB to Serial Breakout for the FT232RL, a small board with a built in USB to serial UART interface. This little breakout is built around the FT232RL IC from FTDI, with an internal oscillator, EEPROM, and a 28-pin SSOP package this is a serious little chip.
With this version, we’ve corrected a few issues found with the board. These changes include fixes to the VCCIO, a change from the mini USB to micro USB connector, and a few footprint modifications. Other than finding this board much easier to use, it is still the same FT232RL breakout that you know and love!
Features
- Implements full v2.0 USB protocol
- Needs no external crystal
- Internal EEPROM for device ID and Product Description strings
- Royalty-Free Driver support for Windows, Linux, and Mac OSX
More information
Datasheet (FT232RL) (771 Kb)
Eagle Files (77 Kb)
