LilyPad Light Sensor
Sensor de luz con salida analógica.
COD: SFDEV08464
Peso: 0.001 Kg
Disponibilidad: En Stock
ARS 15425.00
El producto no está disponible para la venta en este momento
Características

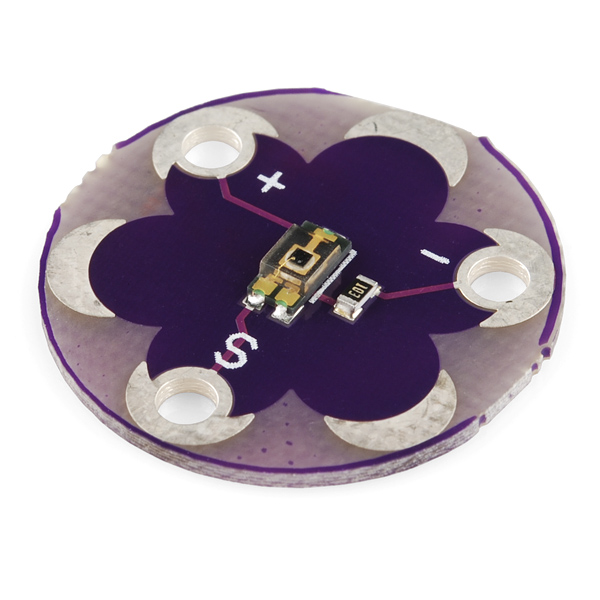

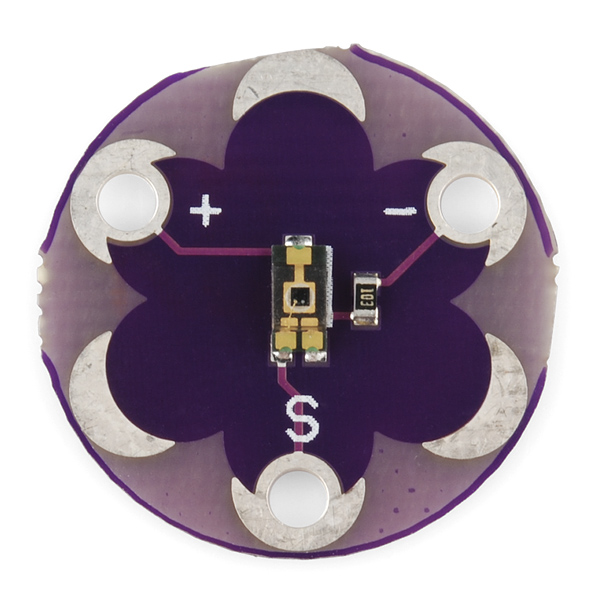

This is a simple to use light sensor that outputs an analog value from 0 to 5V. With exposure to daylight, this sensor will output 5V. Covering the sensor with your hand, the sensor will output 0V. In a normal indoor lighting situation, the sensor will output from 1 to 2V.

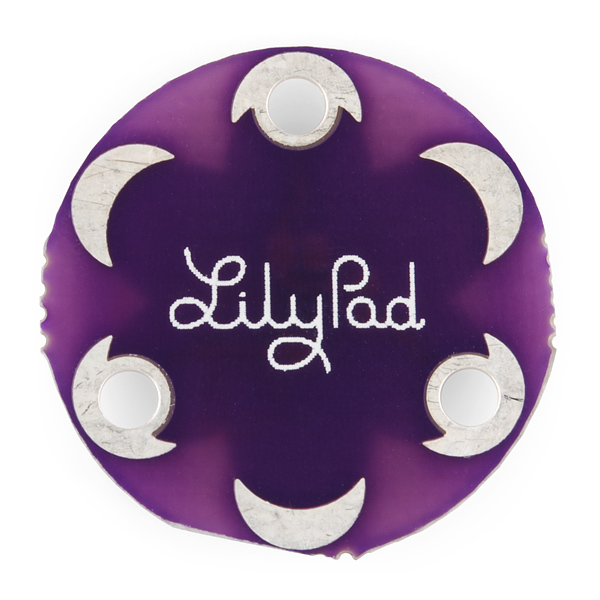

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!
Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles.

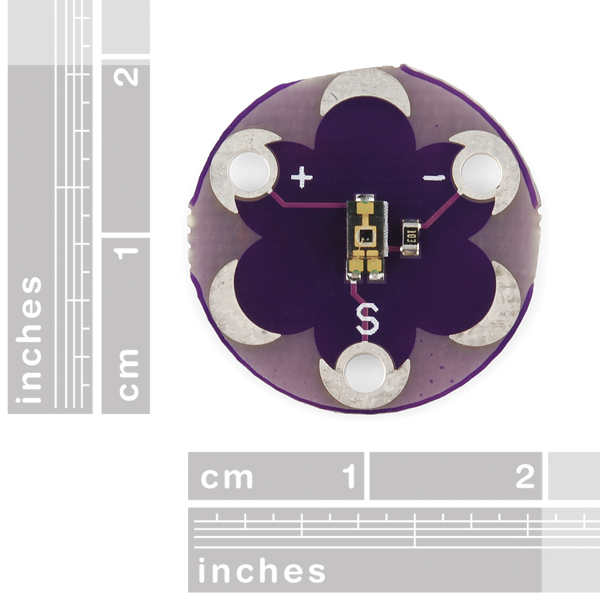

Dimensions:
- 20mm outer diameter
- Thin 0.8mm PCB
Schematic (7 Kb)
Eagle Files (11 Kb)
