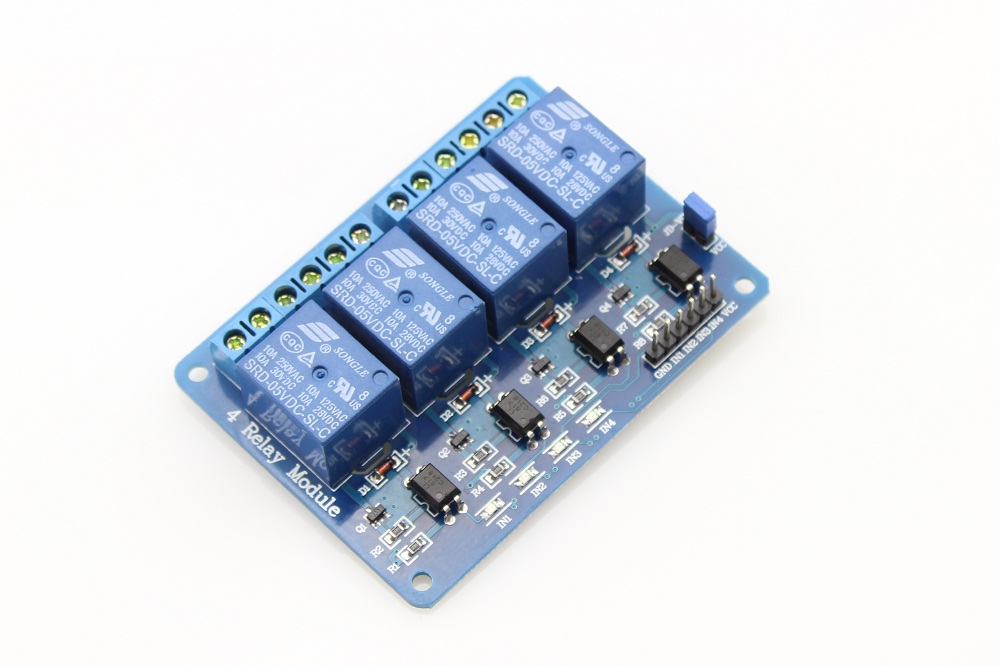

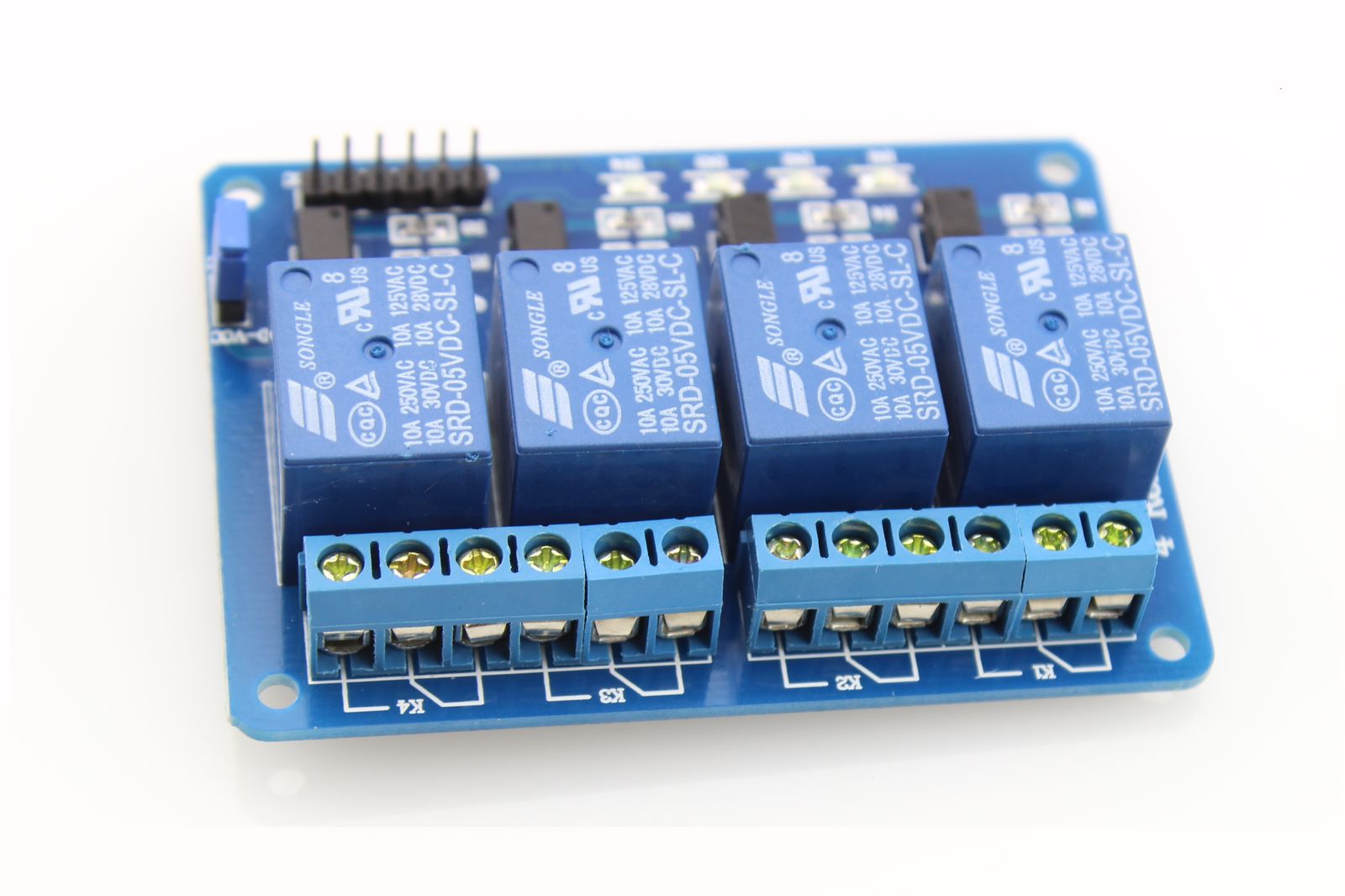

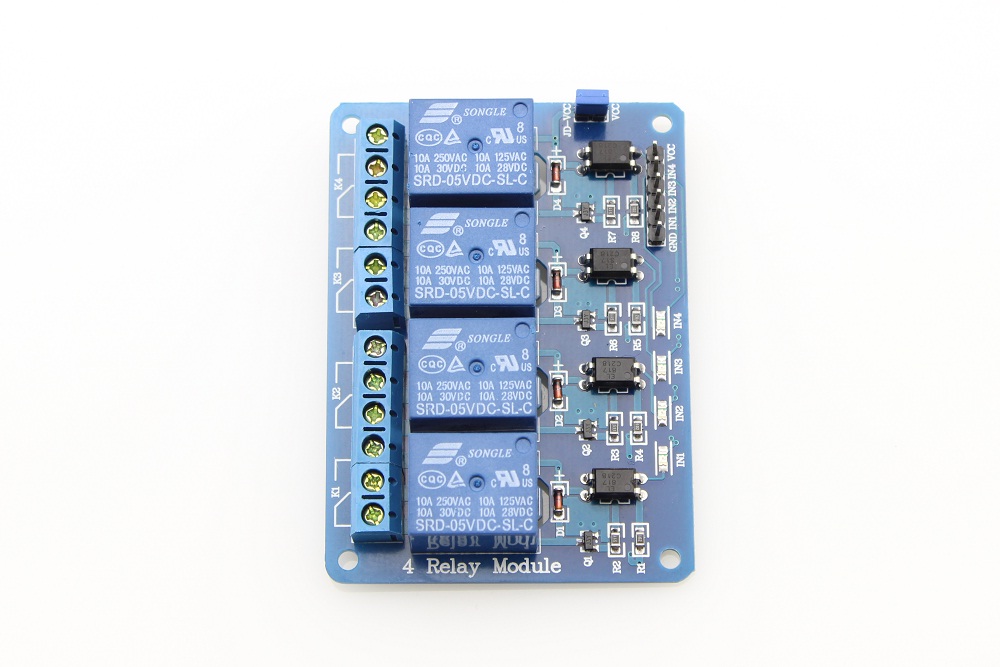

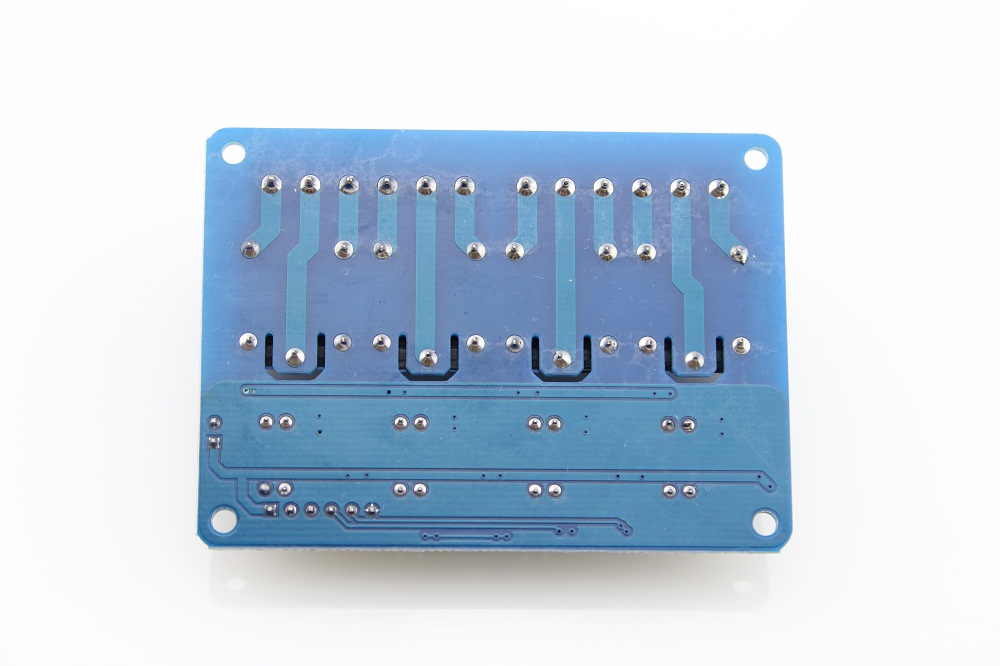

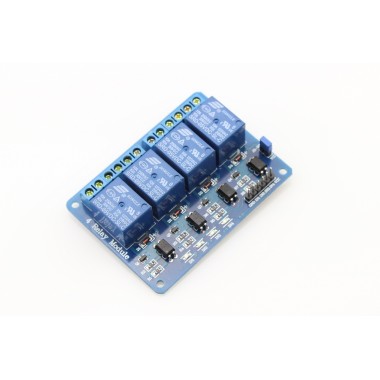

4-Channel Relay Module-10A
Módulos de relés de 4 canales de hasta 10 A.
COD: EARE00104SL
Peso: 0.060 Kg
Disponibilidad: En Stock
ARS 8776.00
El producto no está disponible para la venta en este momento
Características
A Relay is a digital switch to control much higher voltages and currents than your normal Arduino boards does. When inputs a logic voltage, the relay will switch to allow current to flow or cutoff, depending on your wiring. A Relay usually consists of a coil, 1 common terminal, 1 normally closed terminal and one normally open terminal. When the coil is energized, the common terminal and the normally open terminal will have continuity.
Why do we want to use a relay and do we really need to? Anytime you want to switch on/off a device which draws more current or works with a high voltage, you'll need to use a relay, such as controlling of headlights, parking lights, horns, etc.
Please Note that Connect the VCC to JD-VCC with the jumper when using.
Why do we want to use a relay and do we really need to? Anytime you want to switch on/off a device which draws more current or works with a high voltage, you'll need to use a relay, such as controlling of headlights, parking lights, horns, etc.
Specification
- Control Voltage: 5V DC
- Max Control Capacity:10A@250VAC or 10A@30VDC
Archivos
Comentarios
Escribir ComentarioOpenHacks (22/09/2015 - 16:40)
La alimentación debe ser 5V, y la corriente que consume cuando está activo el relay son aprox. 70mA. Saludos!
Pablo (16/09/2015 - 19:12)
Buenas tardes, podrian especificar el rango de tension de alimentacion necesario de la placa y la corriente que consume cada relay? Desde ya muchas gracias.
