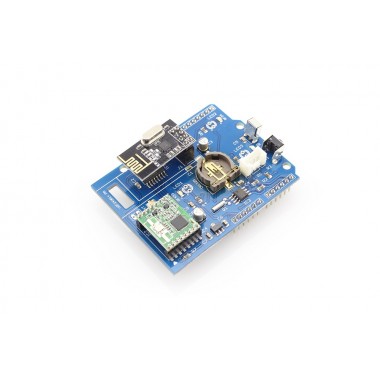

WireLess Gate Shield
Gateway compatible Arduino con módulos RF de 2.4GHz y 433 MHz. Incluye RTC.
COD: ECDD67044WG
Peso: 0.025 Kg
Disponibilidad: En Stock
ARS 62588.00
El producto no está disponible para la venta en este momento
Características

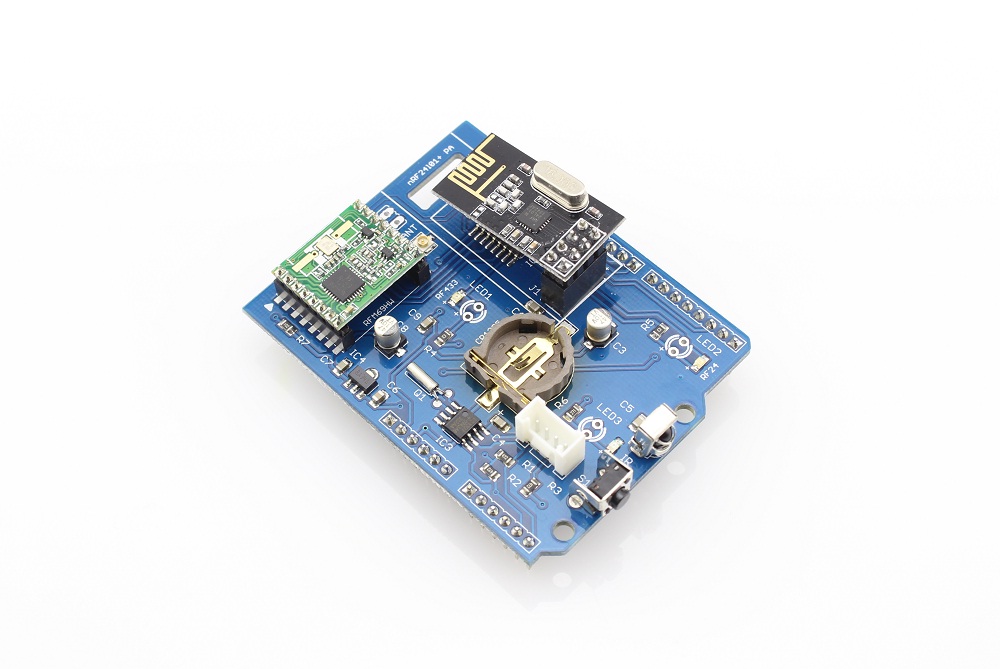

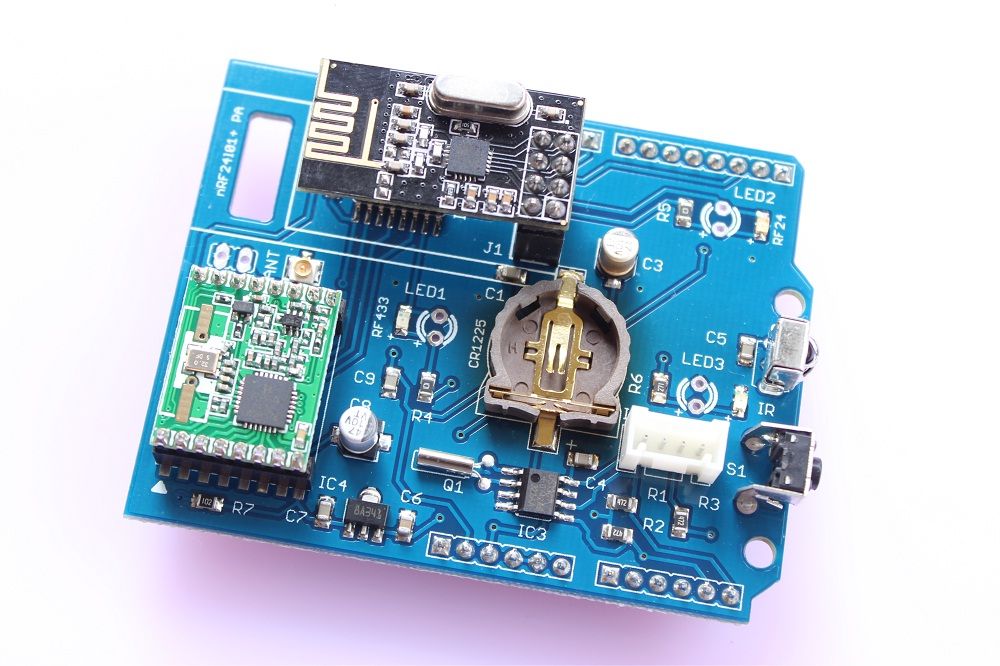

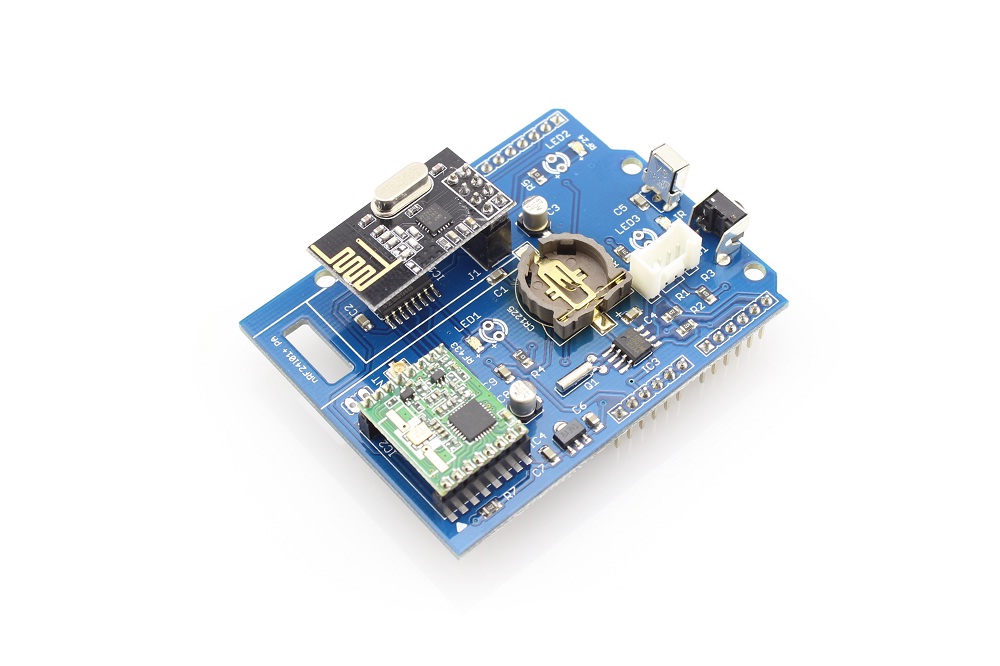

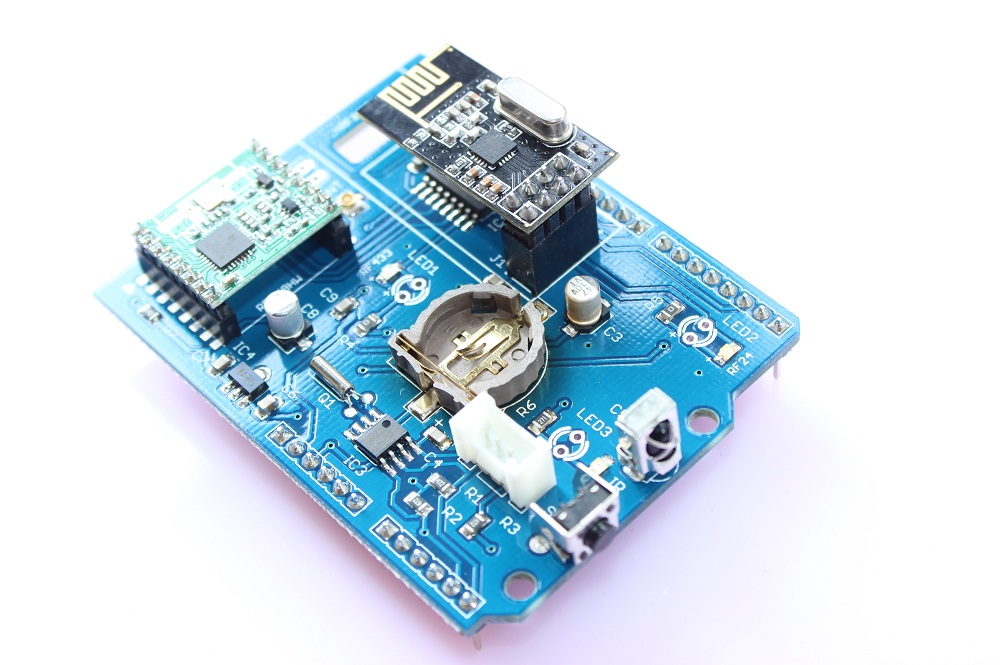

WireLess Gate Shield is an Arduino-compatible expansion card designed to build a system of receiving / transmitting and broadcasting various wireless commands and data. For maximum coverage possible wireless communication interfaces on the board has an IR receiver interface for connecting popular transceiver nRF24L01 + and RFM69HW.
Additionally, the board has a real time clock module DS1307. It can be also used with the NRF24L01+PA+LNA Wireless Module as below:
Additionally, the board has a real time clock module DS1307. It can be also used with the NRF24L01+PA+LNA Wireless Module as below:
Features
- Interface to connect the transceiver to 2.4 GHz nRF24L01+
- Interface to connect the transceiver to 443 MHz RFM69HW (HopeRF)
- U.FL antenna connector for RFM69HW
- LED automatic activity radio modules (with the possibility of removal)
- LED for user
- Real time clock module DS1307
- IR receiver
- One buttons to control (operate one analog pin)
- GROVE-compatible connector: I2C
Features
- WLGate Shield X 1
- Wireless module nRF24L01 + X 1
- Wireless module RFM69HW (443 MHz ) + X 1
Description nRF24l01+ (1091 Kb)

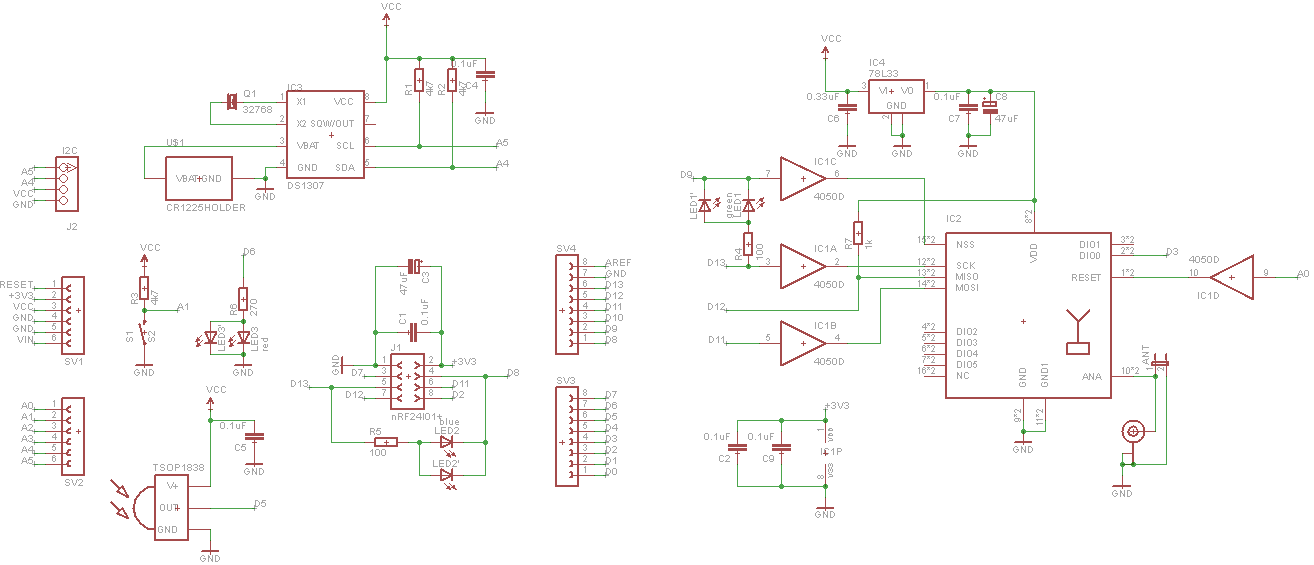

schematic of the device (36 Kb)
