Makeblock Thread Drive Pack V2.0

Makeblock Thread Drive Pack V2.0

Kit de guía lineal con estructura de aluminio de extrusión y rodamientos de acero. Incluye motor.

COD: ER95022MB

Peso: 0.300 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 79569.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

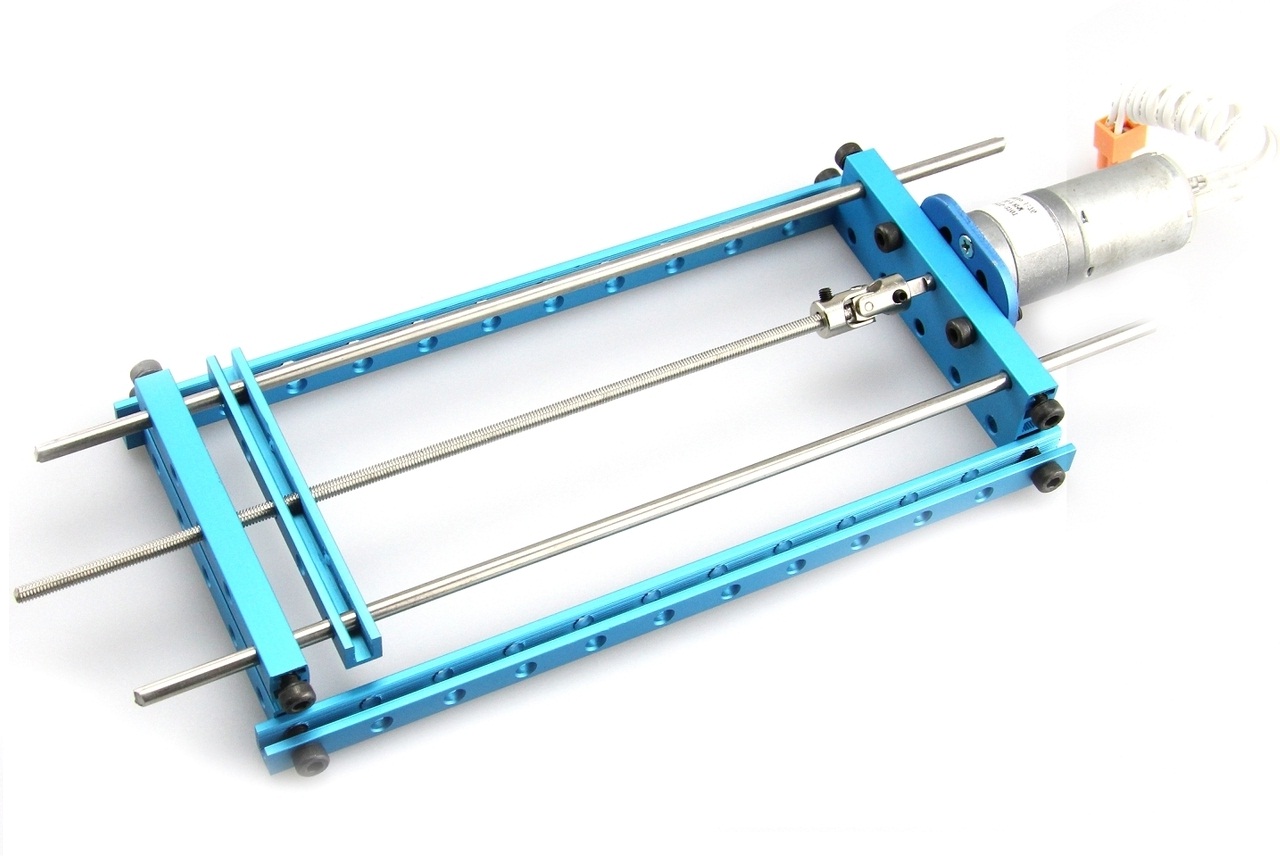

This Thread Drive Pack V2.0 includes all the parts to build a thread drive system, you can create a mini single thread mobile platform as bellows:

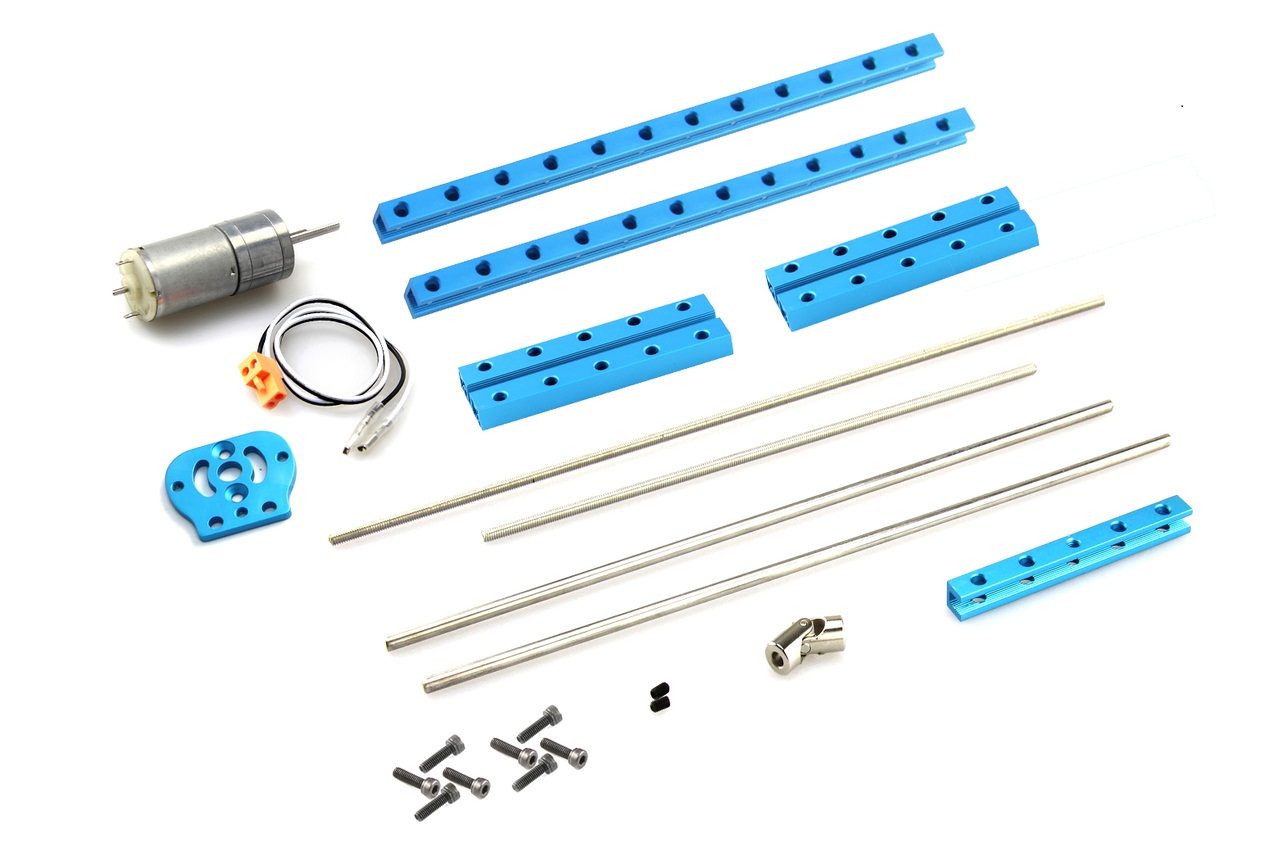

This Kit includes the Following Parts:

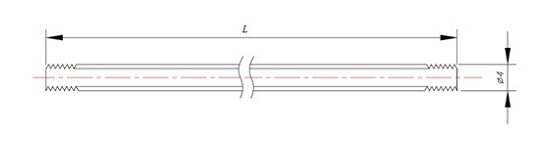

1. Fully Threaded Rod M4x192mm/M4x288mm
Features:
  • Made of steel, zinc plated.
  • Lengh: 192mm/288mm

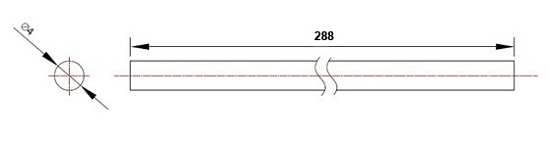

2. Linear Motion Shaft 4x288mm

Features:
  • Made of tainless Steel Can drill into 4mm holes.
  • Compatible with Thread Drive Beam
  • Lengh: 288mm

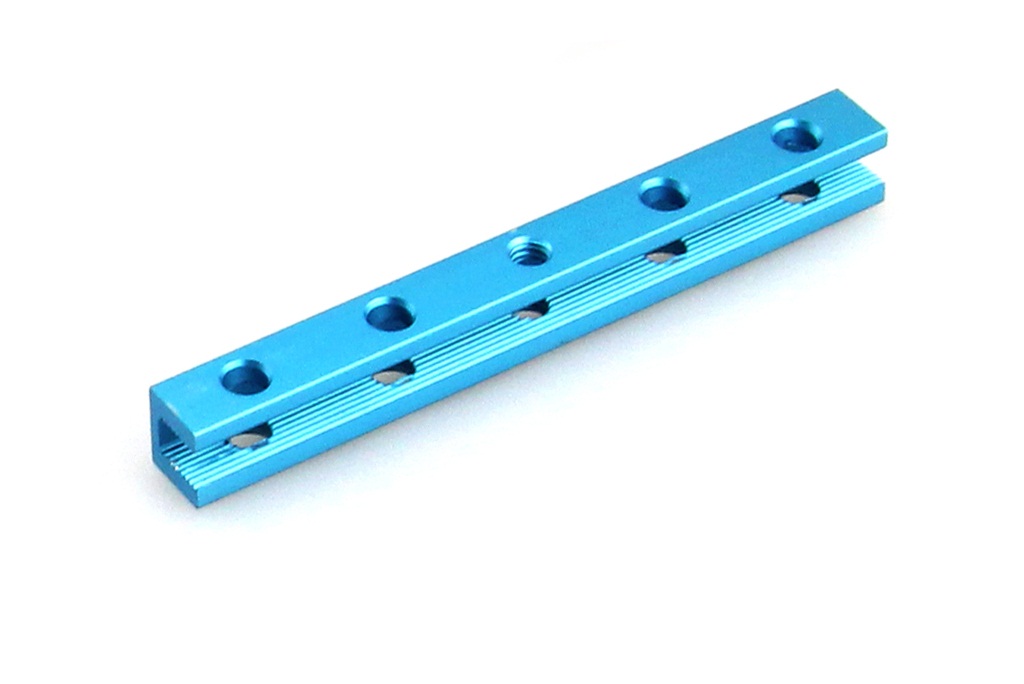

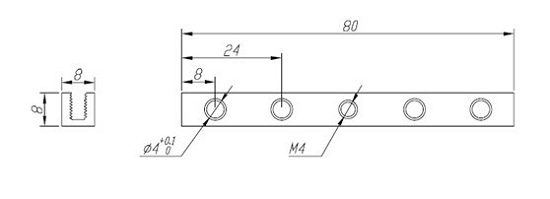

3. Thread Drive Beam

Features:
  • Made from 6061 aluminum extrusion, anodized surface.Excellent strength and twist resistance.
  • With thread hole in the middle that compatible with the Fully Threaded Rod.
  • Other holes without thread can be drilled for 4mm shaft.
  • Threaded slot enables easy and flexible connection
  • Cross-sectional area 8x8mm, length 80mm

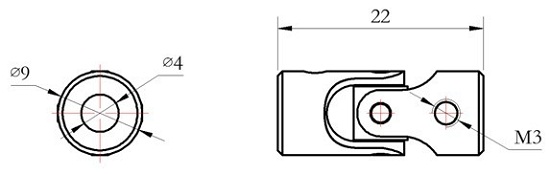

4. Universal Joint

Features:
  • Made from 6061 aluminum extrusion, anodized surface.Excellent strength and twist resistance.
  • Material: stainless steel
  • Max deflection angle: 45°
  • Size: D9*Φ4*Φ4*M3*L22mm
  • 2 Headless Set Screw included.

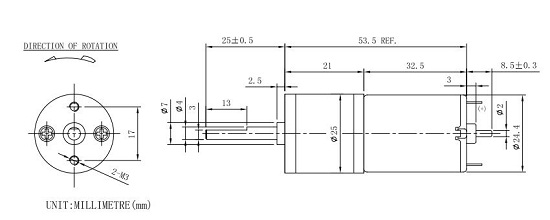

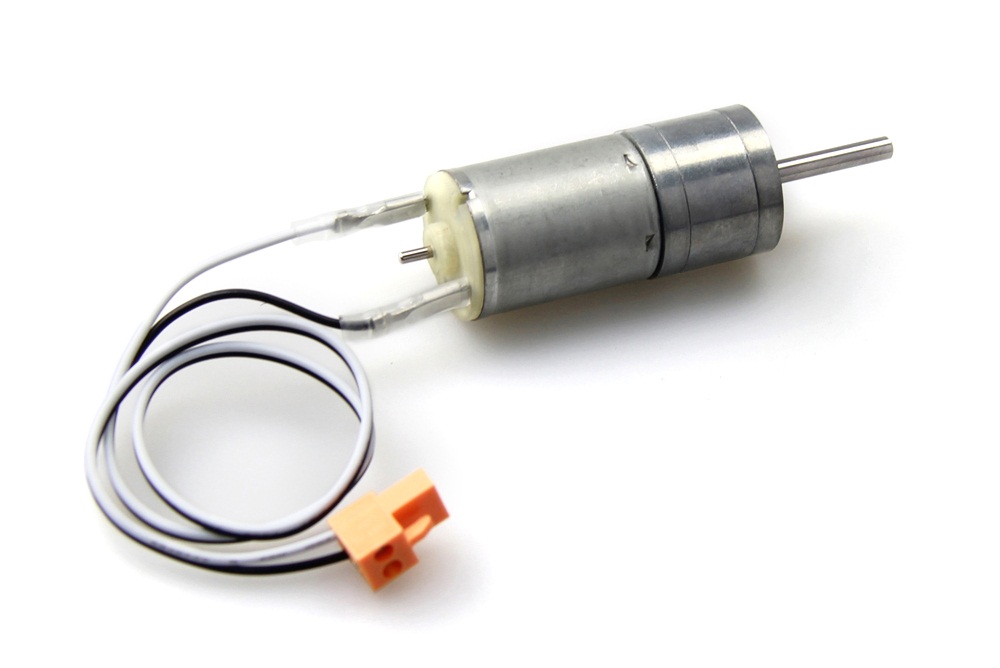

5. DC Motor-25 6V/185RPM
    Dc motors are the most commonly used motors in Makeblock Platform. With Makeblock DC Motor-25 Brackets, they may be easy to connet to Makeblock structural components.


Partlist

  • 2 x Beam 0824-80
  • 2 x Beam 0808-192
  • 1 x DC Motor-25 6V/185RPM
  • 1 x DC Motor-25 Bracket
  • 1 x Universal Joint 4x4mm
  • 1 x Threaded Rod M4x192mm
  • 1 x Threaded Rod M4x288mm
  • 2 x Linear Motion Shaft D4x288mm
  • 1 x Thread Drive Beam M4x80
  • 10 x Socket Cap Screw M4x14
  • 4 x Countersunk Screw M3x8
  • 2 x Headless Set Screw M3x5

Specification:

  • Test condition:
      Rated voltage： 6.0 V(DC)；
      Ambient temperature：+25±3℃;
      Ambient relative：60%±5%；
  • No-load characteristic:
      Reductionratio： 1:34;
      No load current：≦ 200 mA;
      No load speed： 185 ±10%rpm;
  • Load characteristic:
      Rated torque： 1.5±Kg.cm;
      Rated current：≦ 650 mA;
      Rated speed： 135 ±10%rpm;
      Stall torque: 4.5± kg.cm;
      Stall current：≥ 2.0 A;
  • Direction of Ratation：CCW
      Thrust play of shaft：0.05-0.5 mm;
      Radial play of shaft：≦ 0.02 mm;
