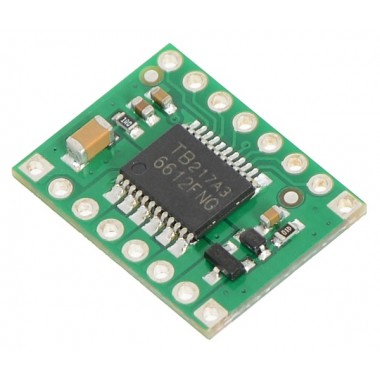

TB6612FNG Dual Motor Driver Carrier

TB6612FNG Dual Motor Driver Carrier

Breakout Motor Driver 1A Dual TB6612FNG para manejar motores DC o stepper, diseñado y fabricado por Pololu.

COD: P000713

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 9432.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

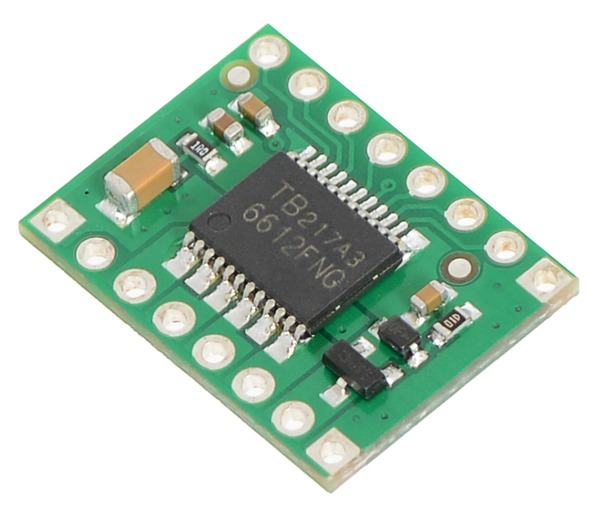

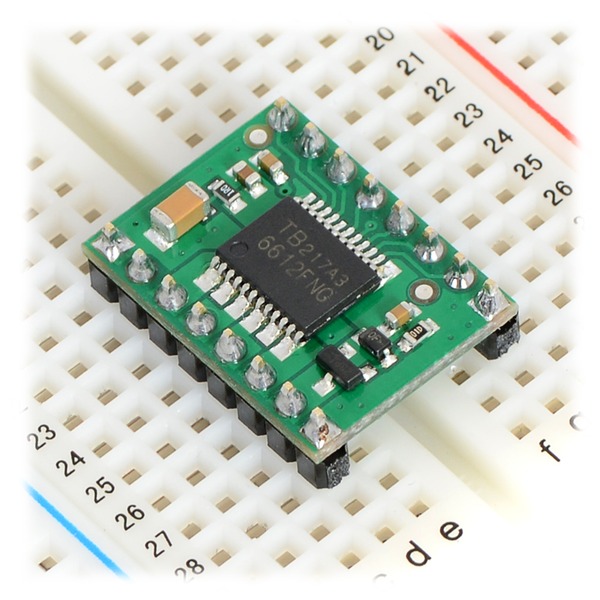

This tiny board is an easy way to use Toshiba’s TB6612FNG dual motor driver, which can independently control two bidirectional DC motors or one bipolar stepper motor. A recommended motor voltage of 4.5 – 13.5 V and peak current output of 3 A per channel (1 A continuous) make this a great motor driver for low-power motors.

Overview

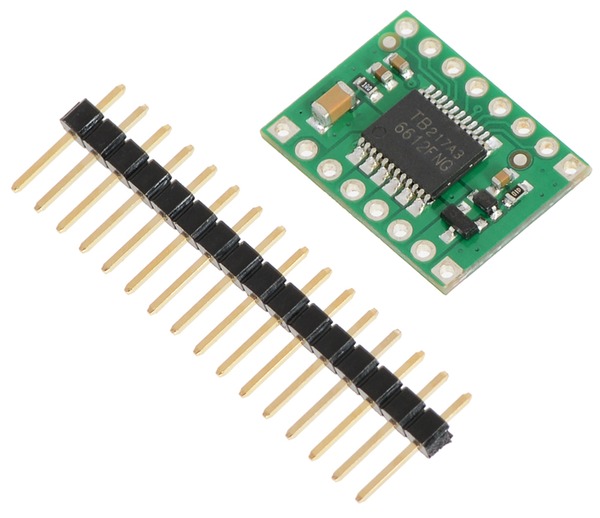

The TB6612FNG is a great dual motor driver that is perfect for interfacing two small DC motors such as our micro metal gearmotors to a microcontroller, and it can also be used to control a single bipolar stepper motor. The MOSFET-based H-bridges are much more efficient than the BJT-based H-bridges used in older drivers such as the L298N and Sanyo’s LB1836M, which allows more current to be delivered to the motors and less to be drawn from the logic supply (the LB1836 still has the TB6612 beat for really low-voltage applications). Our little breakout board gives you direct access to all of the features of the TB6612FNG and adds power supply capacitors and reverse battery protection on the motor supply (note: there is no reverse protection on the Vcc connection).

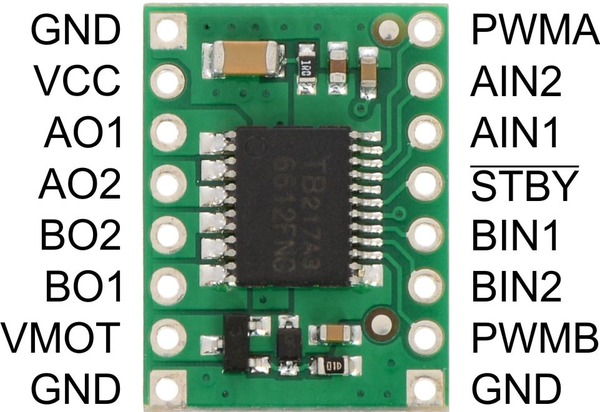

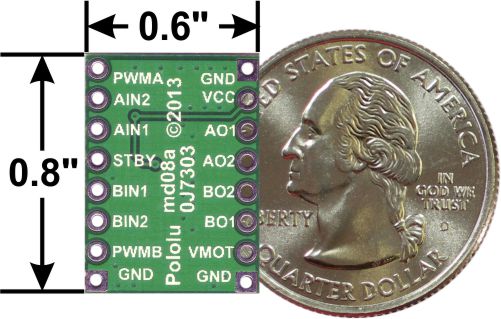

In a typical application, power connections are made on one side of the board and control connections are made on the other. All of the control inputs are internally pulled low. Each of the two motor channels has two direction control pins and a speed control pin that accepts a PWM input with a frequency of up to 100 kHz. TheSTBY pin must be driven high to take the driver out of standby mode.

Features and specifications

  • Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
  • Recommended motor voltage (VMOT): 4.5 V to 13.5 V (can operate down to 2.5 V with derated performance)
  • Logic voltage (VCC): 2.7 V to 5.5 V
  • Output current maximum: 3 A per channel
  • Output current continuous: 1 A per channel (can be paralleled to deliver 2 A continuous)
  • Maximum PWM frequency: 100 kHz
  • Built-in thermal shutdown circuit
  • Filtering capacitors on both supply lines
  • Reverse-power protection on the motor supply
