Step Your Pi! Stepper Board With Stepper Motor for Raspberry Pi

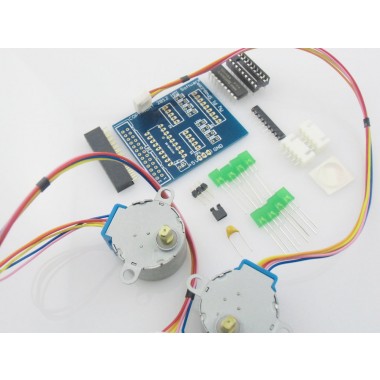

Kit para control de motores paso a paso para Raspberry Pi. Incluye board, conectores y dos motores PAP. Se suministra la placa de circuito impreso y los componentes sueltos, sin soldar.
COD: ERA00107KIT
Peso: 0.060 Kg
Disponibilidad: Sin Stock
ARS 39012.00
El producto no está disponible para la venta en este momento
Características

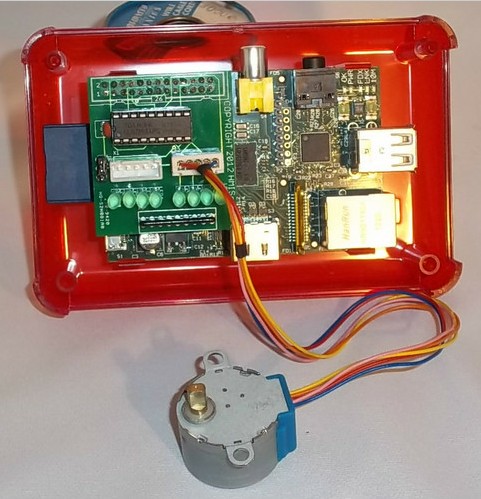

John Jay based in Georgia, USA, is a retired engineer who designed some boards for the Raspberry Pi to help his partner to learn Raspberry Pi. Although at first it was a small act that just for his friends, but with the growing people in the open-source community participating, more and more people find that these packages really works. So, he decided to releases these kits. Cooperated with Elecrow, these packages have been produced quickly. And here with Elecrow, we not only ensured the quality, but also released and collected the usage or Experiences of these kits, to help more people enter the world of Raspberry Pi as quickly as possibleThis Step Your Pi Kit uses 8 I/O pins of Raspberry Pi to drive up to two stepper motors, it is designed to make it super easy to get to grips with using stepper motors and the Raspberry Pi. The kit plugs directly into the GPIO connector on the Raspberry Pi, utilises a ULN2803A IC to drive up to two stepper motors via 8 I/O pins, and has 8 bright indicator LED's.The jumper shipped with the board allows the stepper motor to use the +5V from the Raspberry PI. If you use a different stepper you can remove the jumper and supply up to 12 volts to the center pin and connect ground to the pin that had no connection. Please refer to the Solder Guide.

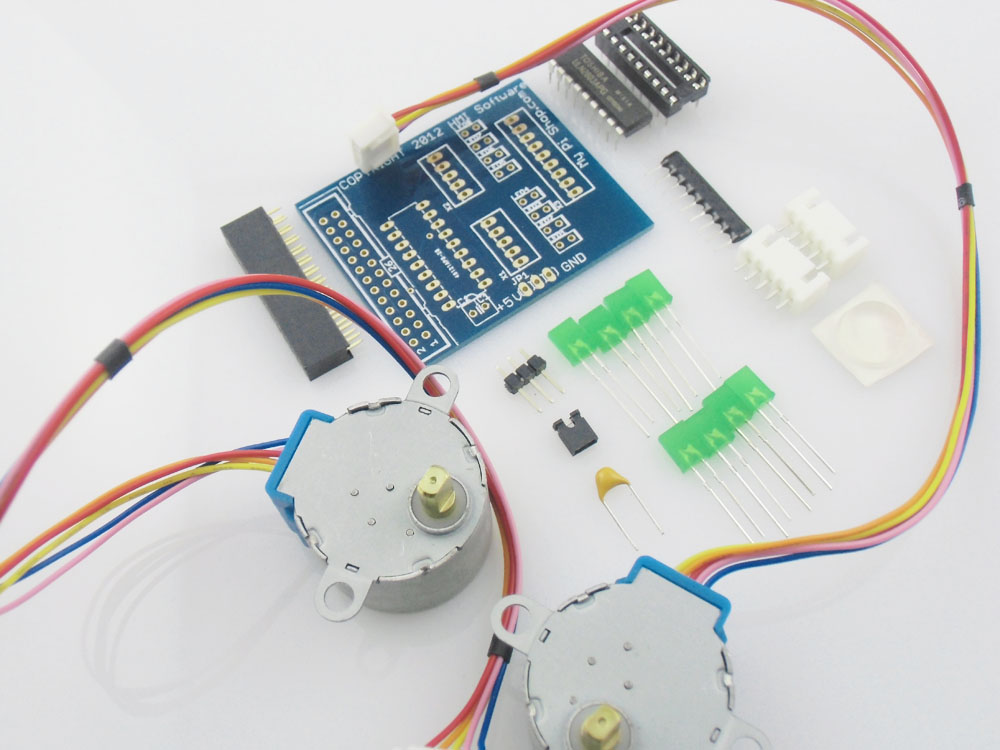

Partlist
- Step Your Pi board x1

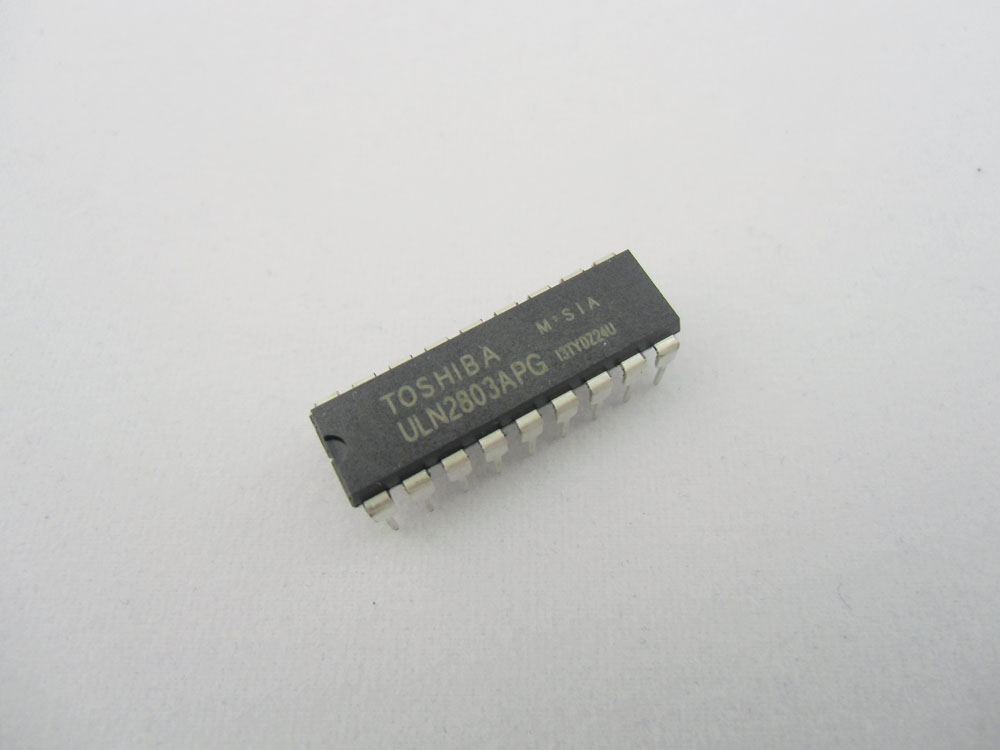

- Driver IC x1
- IC Socket x1
- Green LED x8

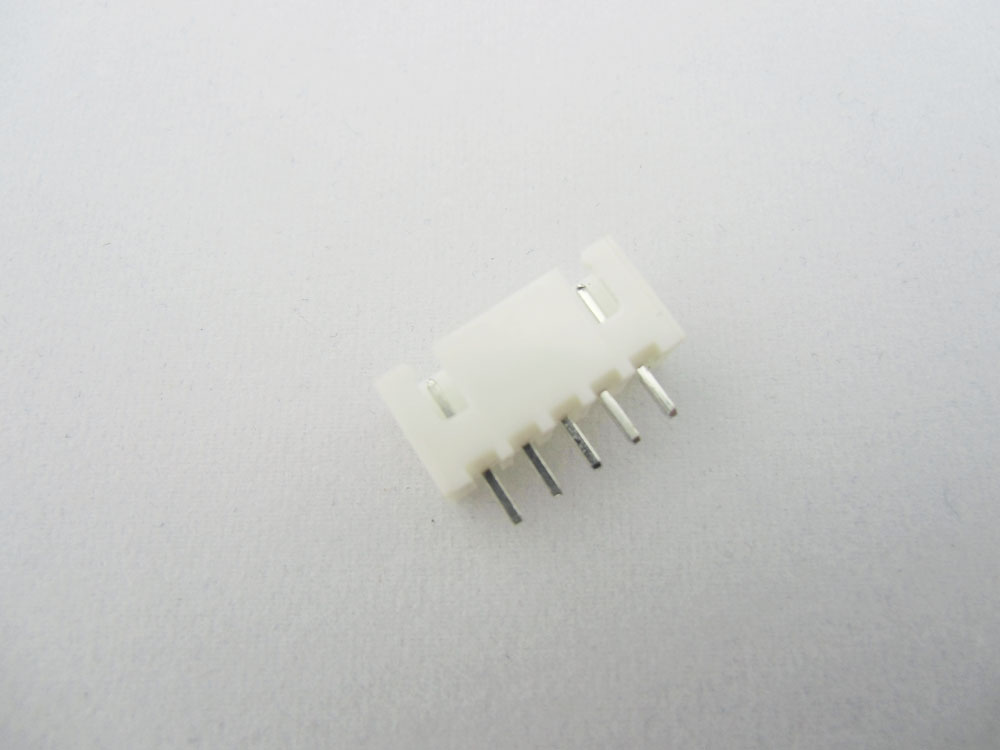

- Stepper Connector x2
- Cap x1
- 26 Pin Connector x1
- 3 Pin Female Connector x3
- Jumper x1
- Gasket x1

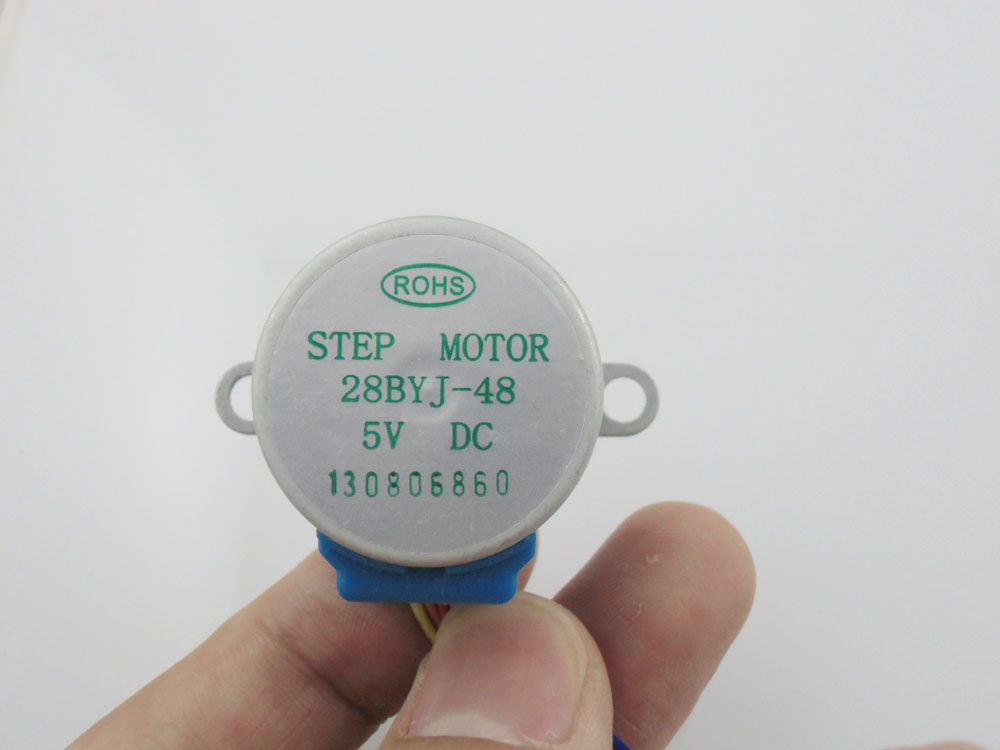

- Stepper Motor x2
ULN2803 Datasheet (375 Kb)
