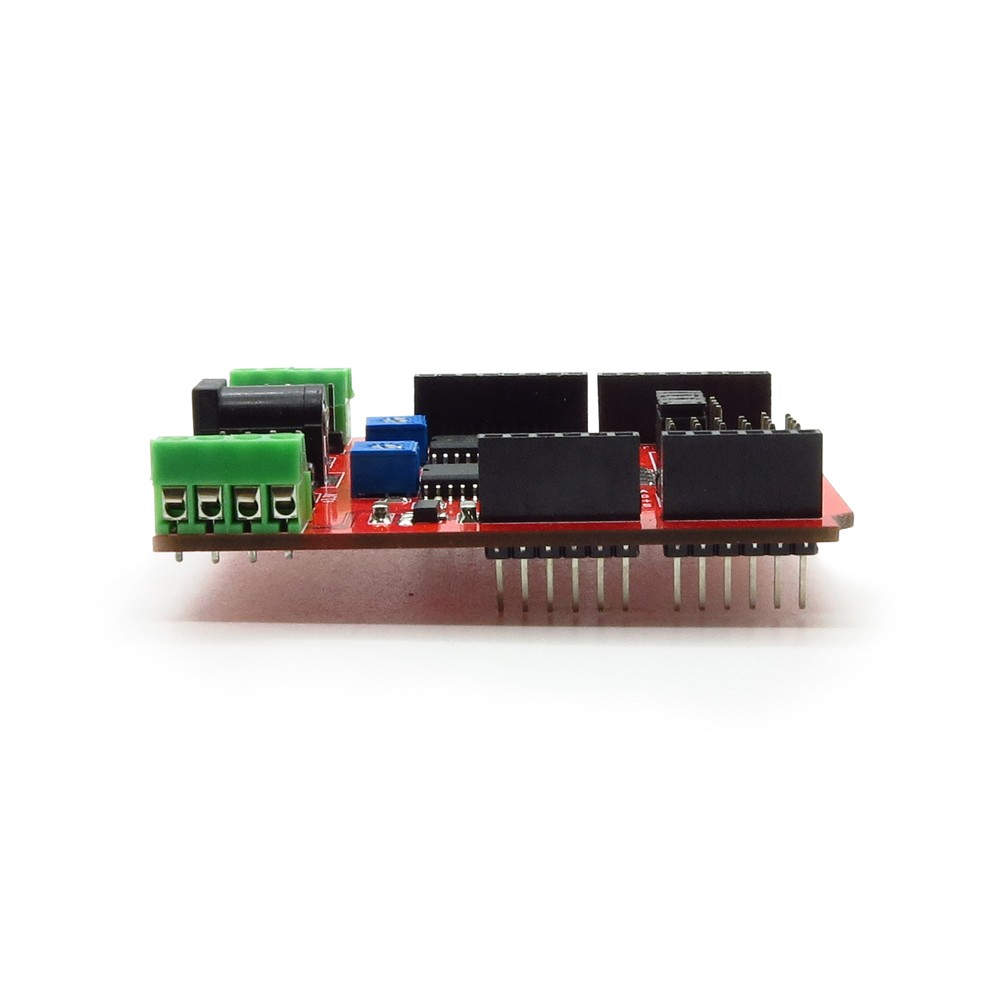

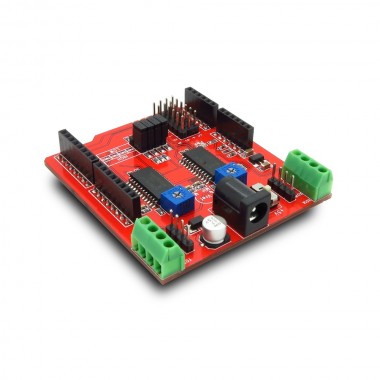

ITEAD Dual Step Motor Driver Shield

ITEAD Dual Step Motor Driver Shield

Driver para control de 2 motores steppers con Arduino. Trabaja con fuentes de 4.75V a 30V. Versátil para uso en CNC.

COD: IM120417015

Peso: 0.040 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 34527.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

Dual stepper motor driver shield can drive 2 stepper motors at the same time by Arduino. It can work with the power supply from 4.75V to 30V. High accuracy controlling can be supported by Arduino for CNC milling machine.

It uses the same stepper motor driver chip as EasyDriver, so you can use it as 2 EasyDriver modules on board. And there are all pins breakout as 3PIN electronic brick/ sensor brick interface.

Pin Assignment

Pin

Description

D0

UART_Rx

D1

UART_Tx

D2

X Step

D3

X Direction

D4

X MS1 setting

D5

X MS2 setting

D6

Y Step

D7

Y Direction

D8

Y MS1 setting

D9

Y MS2 setting

D10

-

D11

-

D12

-

D13

-

A0

ENY

A1

SLEEPY

A2

ENX

A3

SLEEPX

A4

IIC_SCL

A5

IIC_SDA
