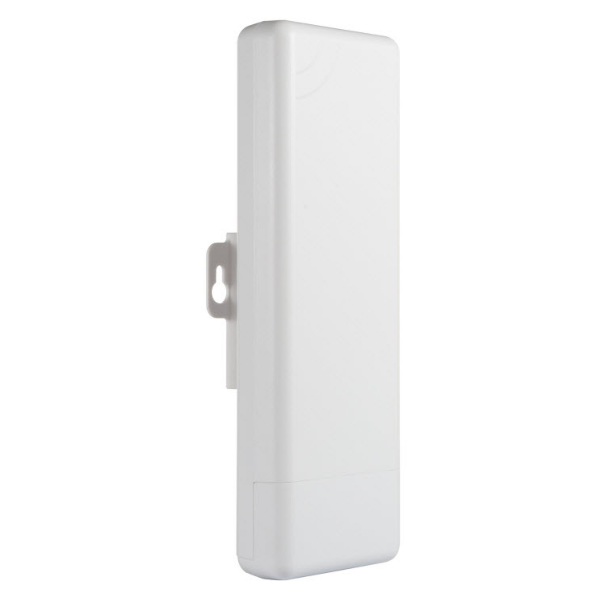

OLG01-N Single Channel LoRa IoT Gateway
Gateway Lora para exterior de un canal con frecuencia central 915 Mhz. Posee WiFi y 2 puertos Ethernet. Requiere fuente de alimentación de 9 a 15 VDC 0.5A (no incluida). No incluye el módulo EC25-AU (4G). A diferencia del OLG01, el OLG01N permite usar Linux para controlar directamente el SX1276/78 facilitando la programación. Soporta MQTT y TCP/IP.
COD: DRAOLG01N
Peso: 0.300 Kg
Disponibilidad: Sin Stock
ARS 204524.00
El producto no está disponible para la venta en este momento
Características
OLG01-N is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.
OLG01-N has rich internet connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.
OLG01-N can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from OLG01, OLG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.
OLG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.
Except LoRaWAN mode, LG01-N can support mutiply working mode such as: MQTT mode, TCP/IP Client mode to fit different requirement for IoT connection.
LG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the LG01-N is only of its 1/4 or less cost. This make the OLG01-N very suitable to set up small scale LoRa network.
Features:
- Open Source OpenWrt system
- Low power consumption
- Firmware upgrade via Web
- Software upgradable via network
- Flexible protocol to connect to IoT servers
- Auto-Provisioning
- Built-in web server
- Managed by Web GUI, SSH via LAN or WiFi
- Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
- Failsafe design provides robustly system
- 1 x SX1276/SX1278 LoRa module
- Limited support in LoRaWAN/ Support Private LoRa protocol
- Support upto 300 nodes
- LoRa band available at 433/868/915/920 Mhz
- Max range in LoRa: 5~10 km. Density Area:>500m
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long range Irrigation Systems
- GPS tracker,etc
- LoRaWAN Reapeter
Linux Side:
- Processor: 400MHz, 24K MIPS
- Flash: 16MB ; RAM: 64MB

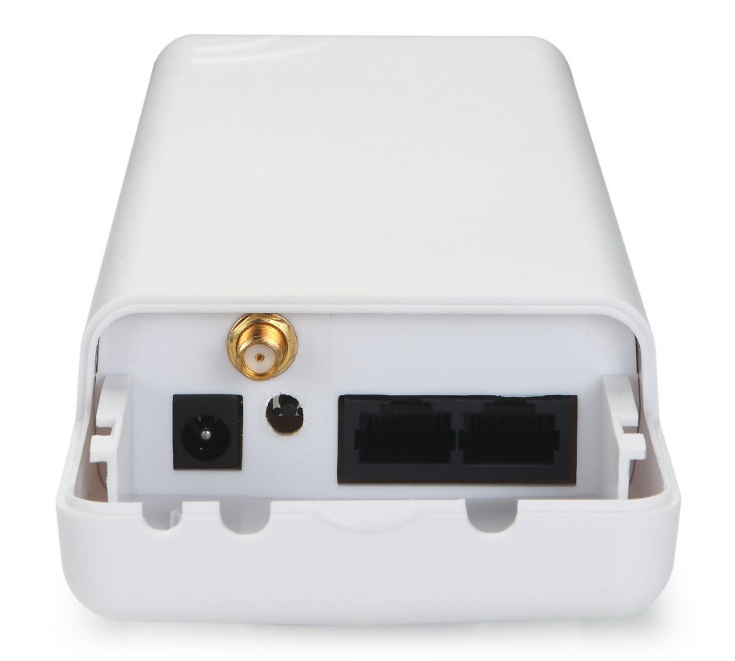

Interfaces:
- 10M/100M RJ45 Ports x 2
- WiFi : 802.11 b/g/n
- LoRa Wireless
- Power Input: 12V DC
- 1 x LoRa Interface
Documents:
- Datasheet
- User Manual
- Source Code: hardware: MotherBoard,LoRa module, software
- Dragino LoRa Gateway Selection Guide
