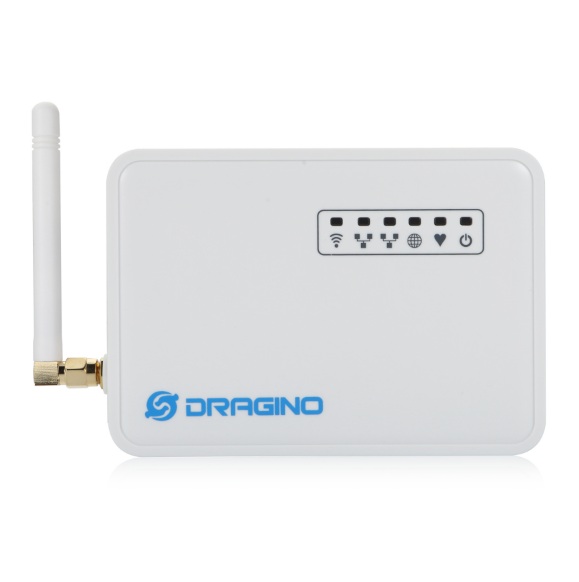

LG01-N Single Channel LoRa IoT Gateway

Gateway Lorawan configurado en 915 Mhz. Posee WiFi y 2 puertos Ethernet. Requiere fuente de alimentación de 9 a 15 VDC 0.5A (no incluida). A diferencia del LG01-P/LG01-S, el LG01-N permite usar Linux para controlar directamente el SX1276/78 facilitando la programación. Soporta MQTT y TCP/IP.

COD: DRALG01N

Peso: 0.230 Kg

Disponibilidad: Sin Stock

ARS 142701.00

El producto no está disponible para la venta en este momento

Características

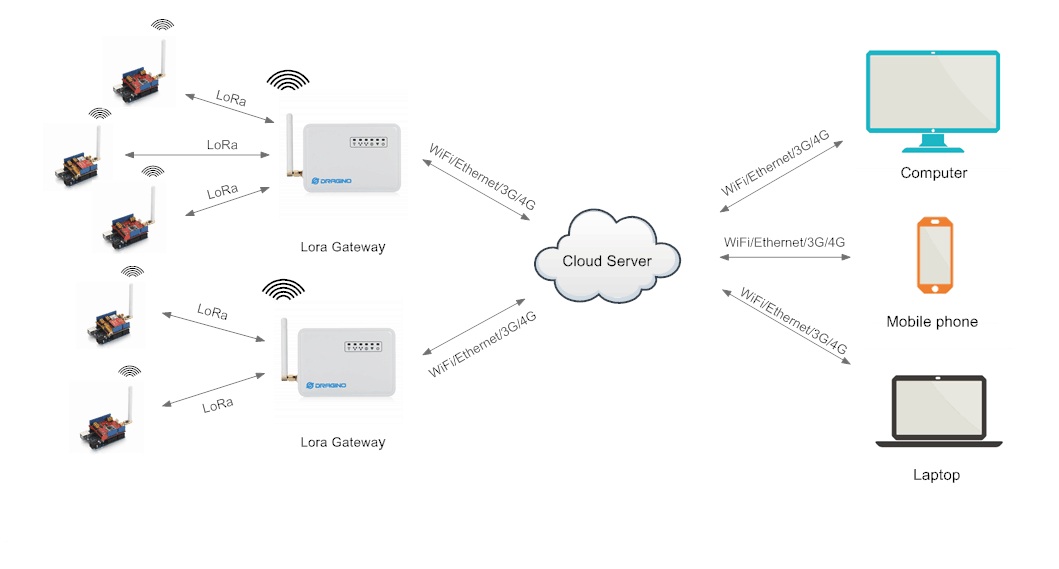

LG01-N is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.

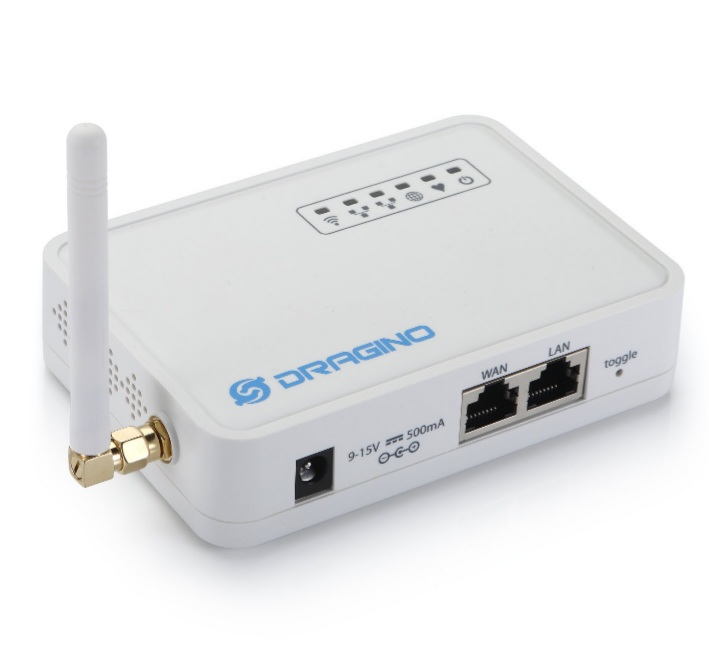

LG01-N has rich internet connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

LG01-N can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from LG01-P/LG01-S, LG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.

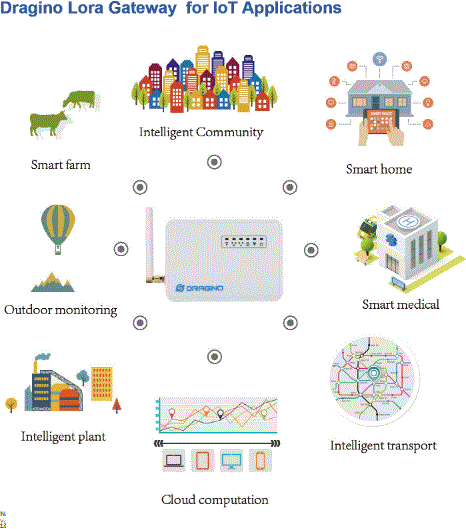

LG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.

Except LoRaWAN mode, LG01-N can support mutiply working mode such as: MQTT mode, TCP/IP Client mode to fit different requirement for IoT connection.

LG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the LG01-N is only of its 1/4 or less cost. This make the LG01-N very suitable to set up small scale LoRa network.

LG01-N
