USB WiFi Module: For Raspberry Pi and BeagleBone

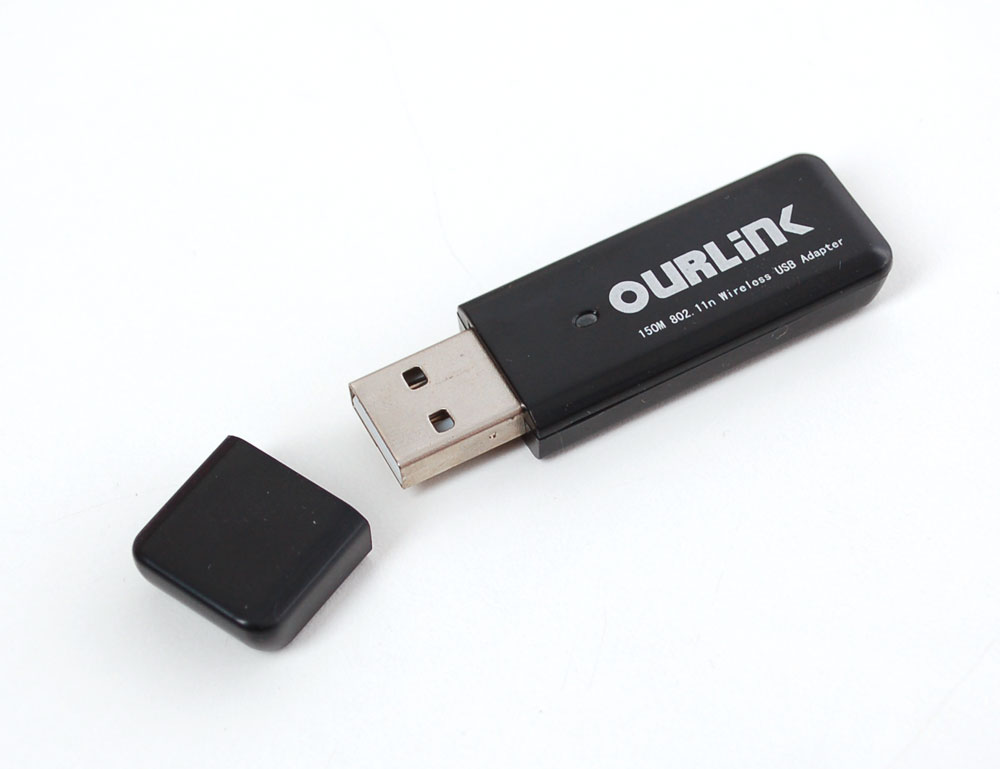

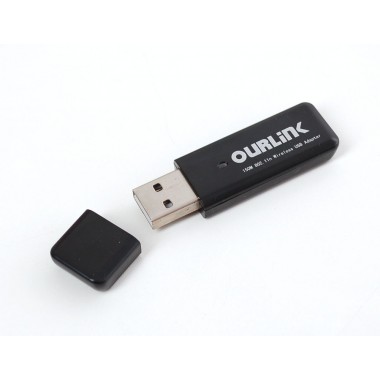

USB WiFi (802.11b/g/n) Module: For Raspberry Pi and BeagleBone

Módulo WiFi de conexión USB para Raspberry Pi, Beaglebone y otros controladores. Basado en chipset Realtek RTL8192CU.

COD: D001012

Peso: 0.032 Kg

Disponibilidad: En Stock

ARS 41343.00

El producto no está disponible para la venta en este momento

Características

Make your Internet of Things device cable-free by adding WiFi. Take advantage of the Raspberry Pi and Beagle Bone's USB port to add a low cost, but high-reliability wireless link. We tried half a dozen modules to find one that works well with the Pi and Bone without the need of recompiling any kernels: its supported by the Bone's Angstrom installation that comes with each Bone as well as the Adafruit Occidentalis distribution. You'll have wireless Internet in 10 minutes! Works great with 802.11b/g/n networks.

When you don't need the small size of our Miniature WiFi adapter, this guy has a bigger antenna for greater range!

If using with a Beagle Bone: Because of the high power required by WiFi, a 5V 2A power adapter is required to power both the Bone and WiFi. Flaky behavior and crashes may result if this is not followed!

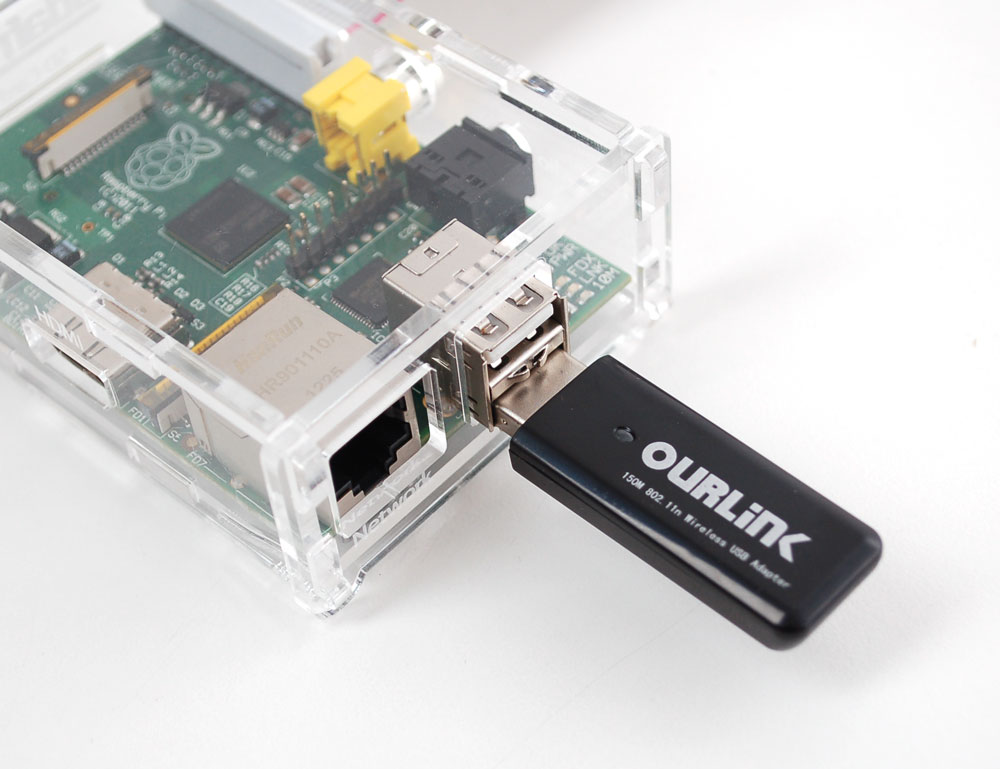

If using with a Raspberry Pi: The latest Wheezy distributions support this module out-of-the-box. Also, the Adafruit Occidentalis distribution has support built in.Check out our detailed tutorial for how to set up WiFi networking on the PiYou may find that you need to have a powered hub to use this adapter, so if you're having power flakiness with your Pi, try a hub!

RTl8192cu Chipset
Dimensions: 59mm x 18mm x 8mm
Sticks out 48mm (1.9") beyond USB port
Weight: 6g
Wireless Standards: IEEE 802.11n (draft), IEEE 802.11g, IEEE 802.11b
Host Interface: High speed USB2.0/1.1 interface
Data Rate: 802.11n: up to 150Mbps (downlink) and up to 150Mbps (uplink) , 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback, 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band: 2.4GHz ISM (Industrial Scientific Medical) Band
Chipset: Realtek
RF Frequency: 2412 ~ 2462 MHz (North America), 2412 ~ 2472 MHz (Europe), 2412 ~ 2484 MHz (Japan)
Radio Channel: 1 ~ 14 channels (Universal Domain Selection)
Range Coverage: Up to 3 times farther range than 802.11g
Antenna Type: Integrated Antenna
Roaming: Full mobility and seamless roaming from cell to cell
RF Output Power: 13 ~17 dBm (Typical)
Modulation: 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM, 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM, 11b: DQPSK, DBPSK, DSSS, CCK
Data Security: 64/128-bit WEP Encryption WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network: Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network, Wireless roaming, Data rate auto fall-back under noisy environment or longer range distance, Site Survey with Profile function
Configuration & Management: Plug-and-Play setup and installation, Management Utility supports 2000 / XP/ Vista
Media Access Control CSMA/CA with ACK
LED Indicator Link/Active ( Green )
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 75°C
Operating Humidity 10% ~ 90% (Non Condensing)
Storage Humidity 5% ~ 95% (Non Condensing)
Regulatory Compliance FCC (USA), CE Mark (Europe), RoHS Compliant, Wi-Fi Compliant
Requirements Available USB 2.0 port
