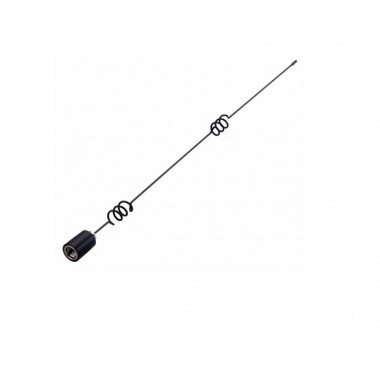

Antena 915MHZ 4.6dBi Exterior
Antena de RF, tipo látigo, omnidireccional, de 4.6dBi y 915MHz (902MHz a 928MHz). Adecuada para aplicaciones en exterior donde se requiere una amplia cobertura, especialmente en el plano azimutal, para aplicaciones de medición y monitorización remota. Posee conector macho tipo N.
COD: TI165F11
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 60528.00
El producto no está disponible para la venta en este momento
Características
Product Description:
TI.16 is a 4.6dBi 915MHz ISM band (902MHz to 928MHz) Dipole Omni-directional antenna. This robust whip is suitable for outdoors applications where wide coverage is required especially in the azimuth plane, including metering, remote monitoring. As standard low frequency monopole antenna, its radiation property improves with mounting on metal plate.
FEATURES:
- Impedance: 50 ohms.
- Polarization: Linear.

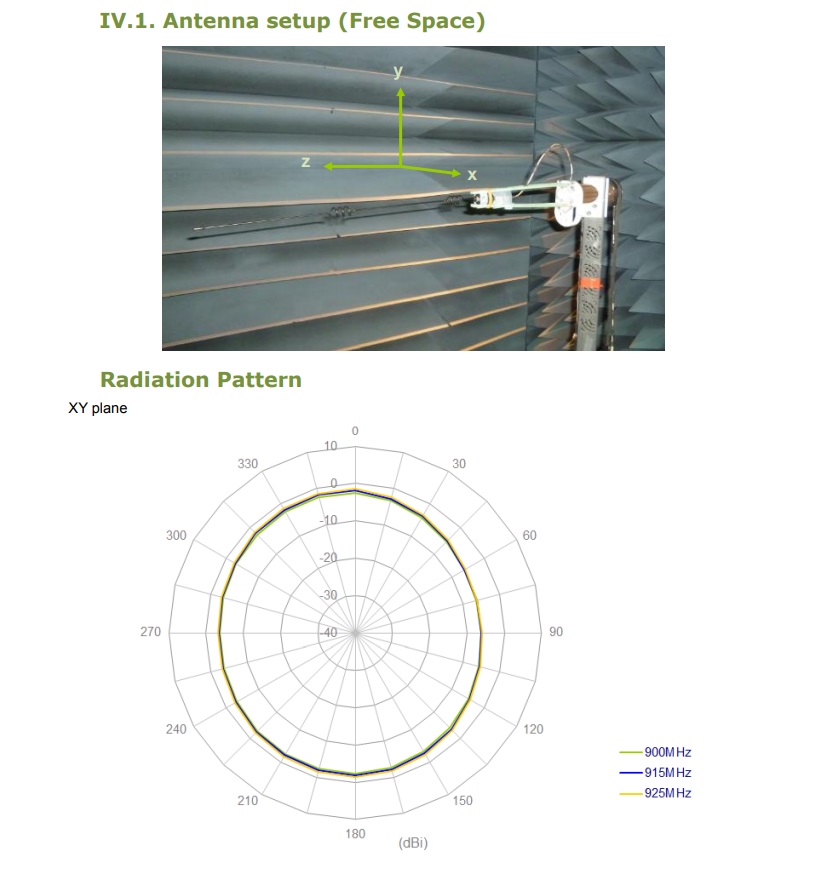

- Radiation Pattern: Omni
- Input Power: 50 W.
- Frequency (MHz): 915.

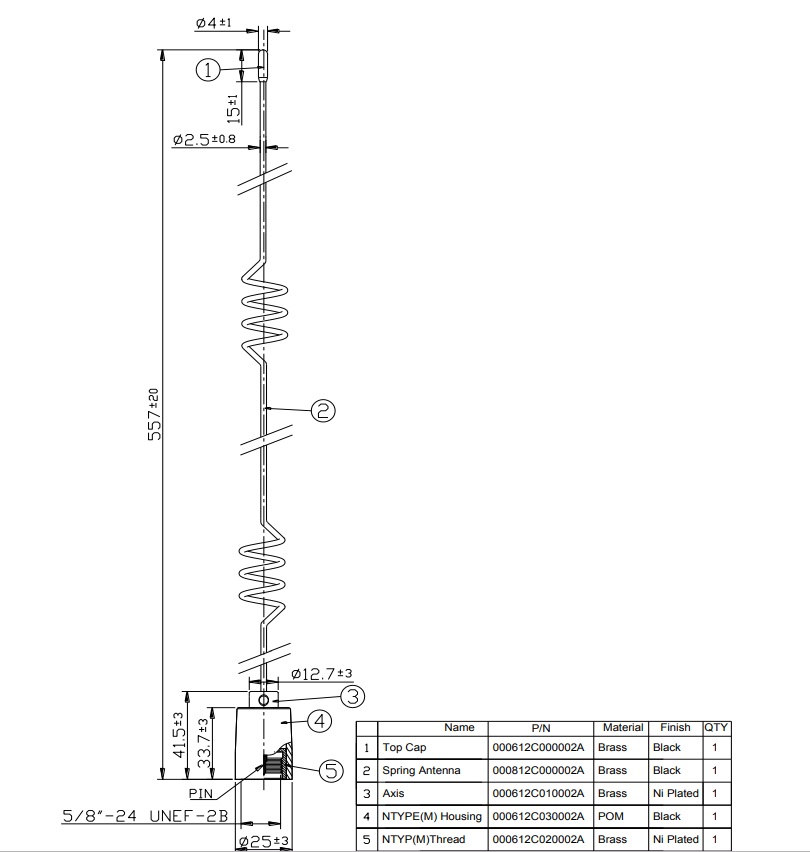

MECHANICAL
- Dimensions: 620mm.
- Base Diameter: 25mm.
- Whip Diameter: 19mm at widest.
- Whip Material: Coated Brass.
- Connector: N Male Straight.
ENVIRONMENTAL:
- Temperature Range: -40°C to 85°C.
- Humidity: Non-condensing 65°C 95% RH.
Hoja de Datos (548 Kb)
