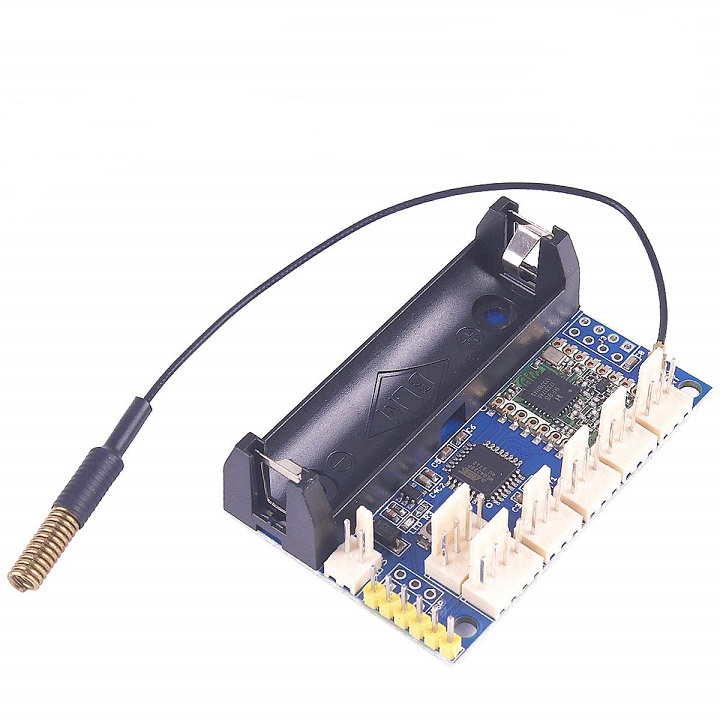

SX1278 LoRa ATmega328P RFM98 915MHz Radio Node Module
Módulo Lora de 915 MHz basado en el Atmega328P (Arduino pro mini 8Mhz 3.3V bootloader) y en el RFM98. Dispone de 2 puertos I2C, 2 I/O Digitales, y dos canales Analógicos. Puede ser alimentado con una batería LIPO de 3.7V, o bien de forma externa con tensiones de 3.7v a 12v). Posee interfaz SPI. Incluye antena. Compatible con Arduino.
COD: EWIR04034N915
Peso: 0.040 Kg
Disponibilidad: Sin Stock
ARS 57579.00
El producto no está disponible para la venta en este momento
Características
Description:
There is on-board 3.7v 14500 battery holder, that makes you use anywhere you like. There are two IIC ports, two analog ports (A0, A1) and two digital ports (D3, D4) on this LoRa radio node.
This LoRa radio node uses the extra space left over to add an RFM9x LoRa 433 MHz or RFM95 LoRa 915 Mhz radio module. They do work quite well for small data packet transmission when you need more range than 2.4 GHz (BT, BLE, WiFi, ZigBee).
Features:
- SX1278 LoRa® based module with SPI interface.
- Packet radio with ready-to-go Arduino libraries.

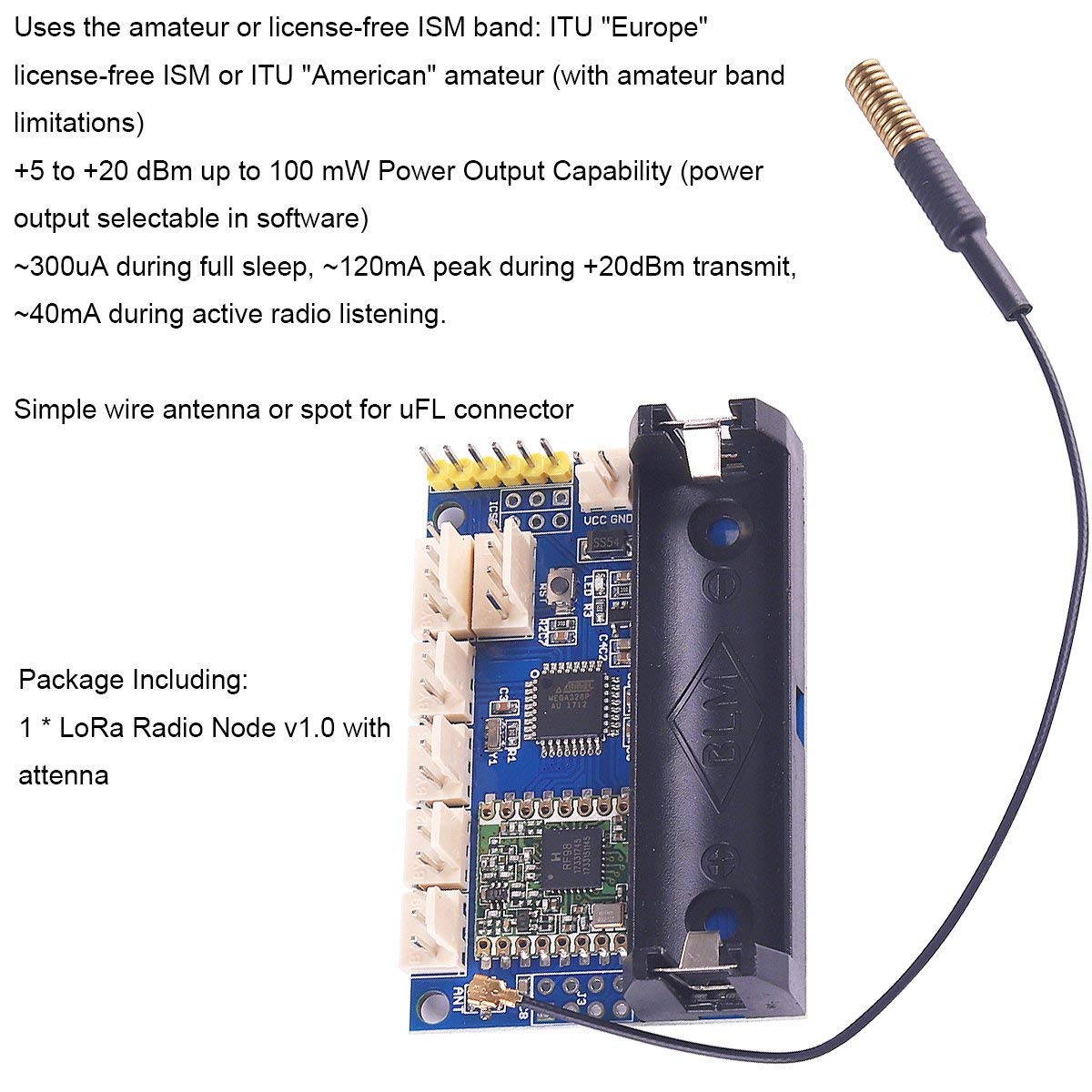

- Uses the amateur or license-free ISM band: ITU "Europe" license-free ISM or ITU "American" amateur (with amateur band limitations).
- +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software).
- ~300uA during full sleep, ~120mA peak during +20dBm transmit, ~40mA during active radio listening.
- Spot for uFL connector.

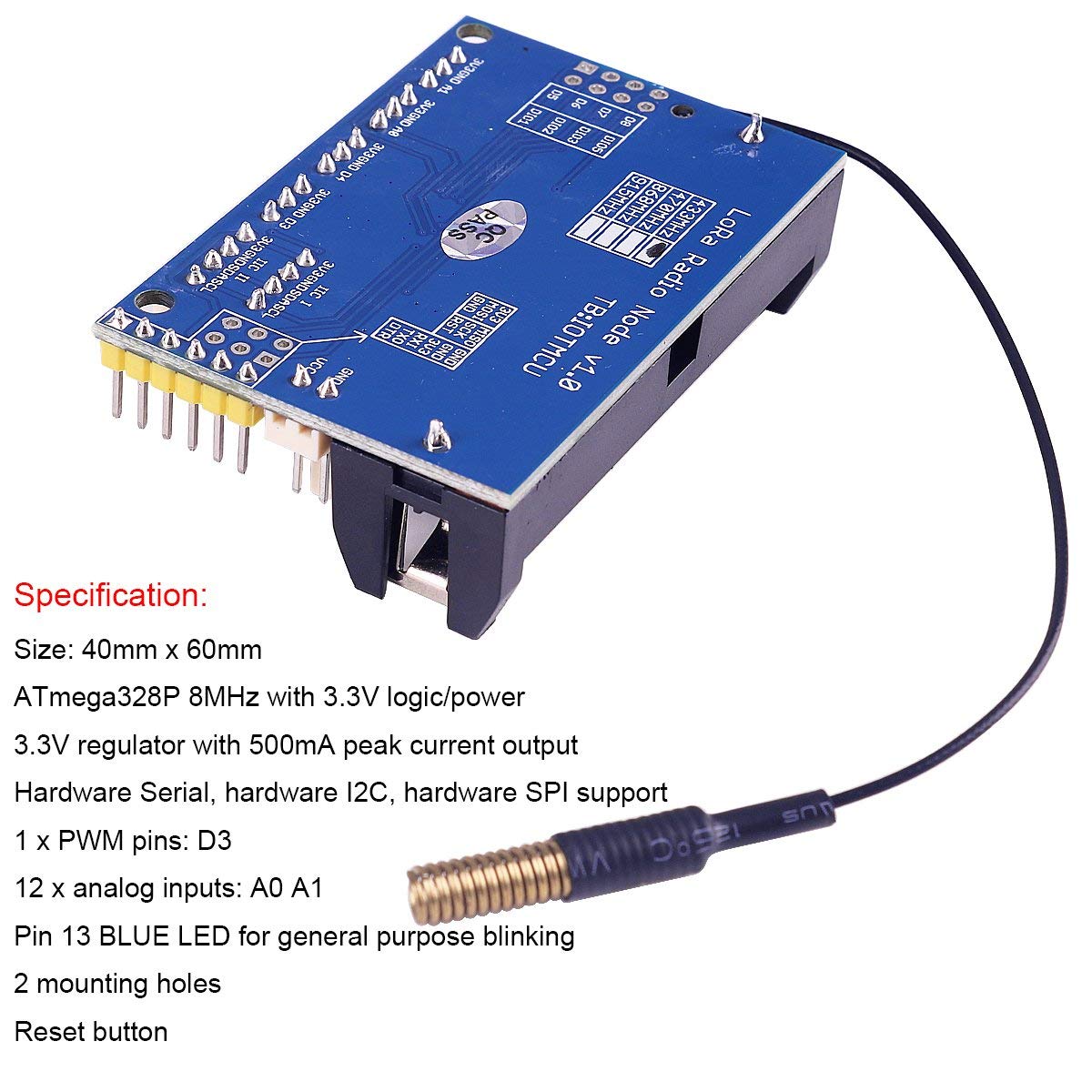

Specifications:

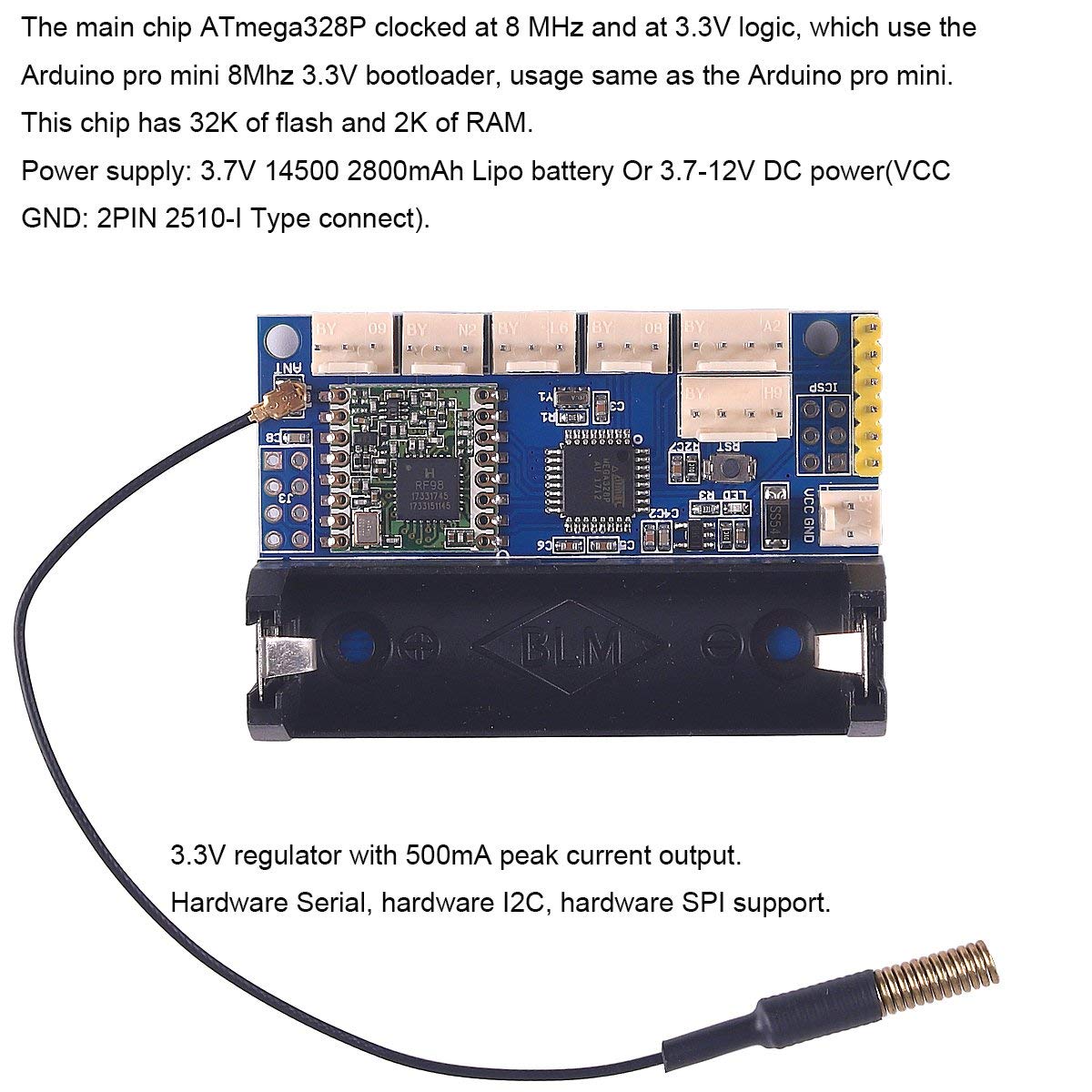

- Power supply: 3.7V 14500 Lipo battery Or 3.7-12V DC power (VCC GND: 2PIN 2510-I Type connect).
- ATmega328P @ 8MHz with 3.3V logic/power.
- 3.3V regulator with 500mA peak current output.
- Hardware Serial, hardware I2C, hardware SPI support.
- Pin #13 BLUE LED for general purpose blinking.
- 2 x analog inputs: A0 A1.
- 2 mounting holes.
- 1 x PWM pins: D3.
- Size: 40mm x 60mm.
- Reset button.
Links:
https://github.com/IOT-MCU/LoRa-Radio-Node-v1.0
Package list:
- SX1278 LoRa ATmega328P RFM98 433/ 915MHz Radio Node Module x 1
