Monster Dual Moto Shield VNH2S

Monster Dual Moto Shield VNH2S

Shield que permite controlar por PWM hasta dos motores DC. Incluye headers macho para soldar. Provee una corriente máxima de 30A y soporta la conexión de motores de hasta 16vV Posee además apagado por sobretemperatura y sobretensión. Módulo basado en el integrado VNH2S.

COD: HTHR0214-77A

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 22351.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

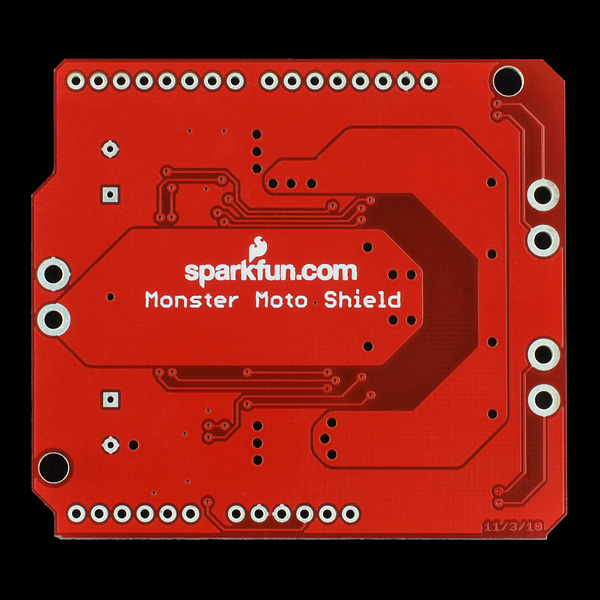

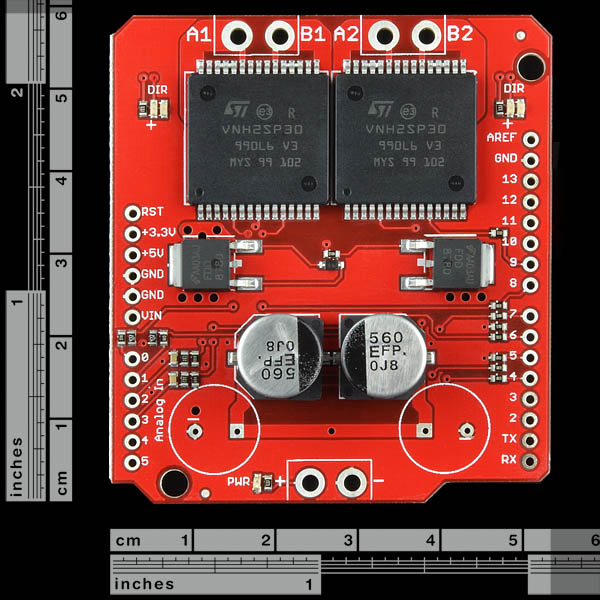

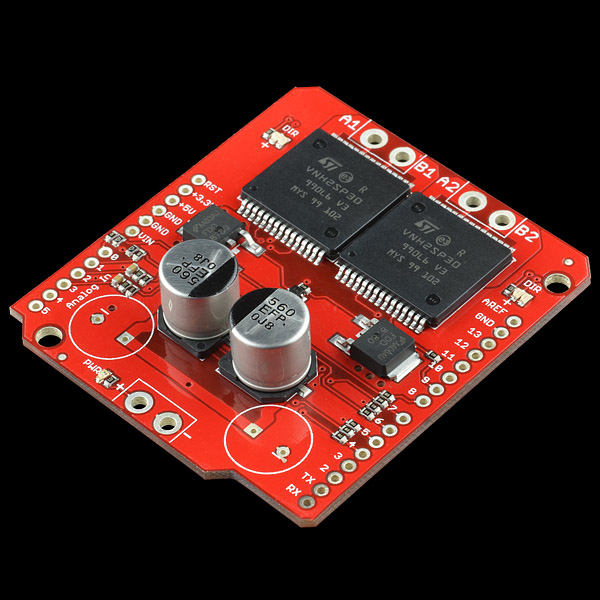

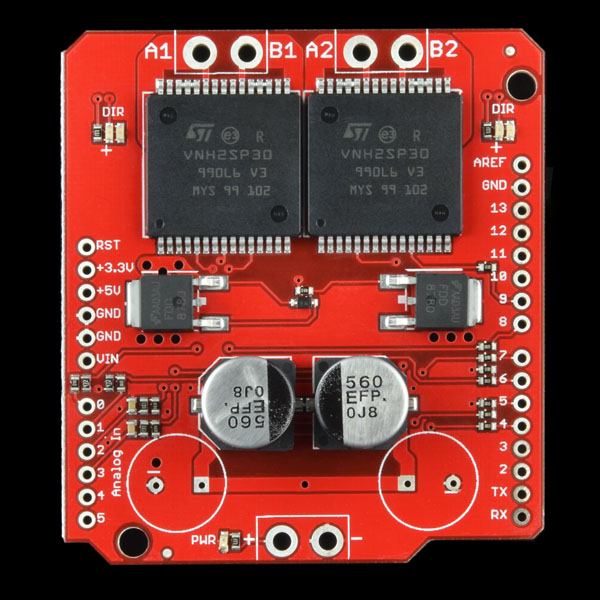

This is essentially a ramped up version of our Ardumoto motor driver shield. For this SparkFun Monster Moto Shield we’ve replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.



Features:

  • Voltage max: 16V.
  • Maximum current rating: 30 A.
  • Practical Continuous Current: 14 A.
  • Current sensing available to Arduino analog pin.
  • MOSFET on-resistance: 19 mΩ (per leg).
  • Maximum PWM frequency: 20 kHz.
  • Thermal Shutdown.
  • Undervoltage and Overvoltage shutdown.



Documents:
