Bluetooth IO Control Board EDR 2.0, BLK_IO

Principal

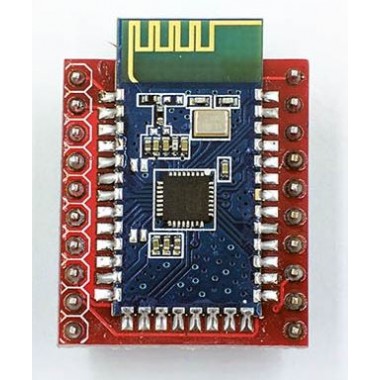

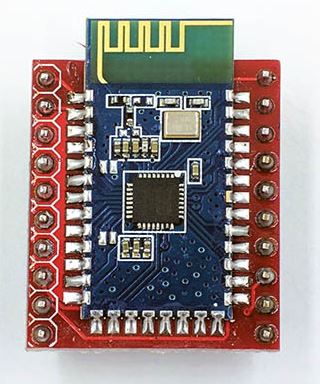

Modulo bluetooth compatible con el BC-04, HC-05 y otros módulos bluetooth 2.0 SPP.

COD: TRONBL1064

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 6517.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

  • On Board classic EDR 2.0 SPP bluetooth module, EDY-30, compatible with BC-04, HC-05 and all other in market bluetooth 2.0 SPP modules.
  • On board cheap control MCU STM8S, you can also program it again by yourself.
  • On board 5V-3.3V power supply

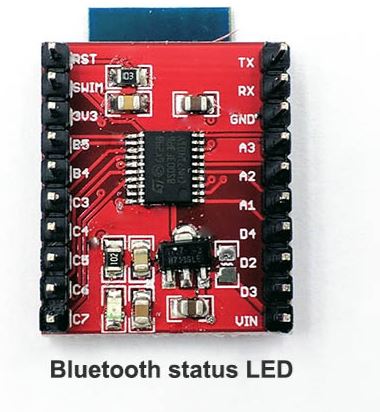

  • On board (backside) status LED, indicating connection status.

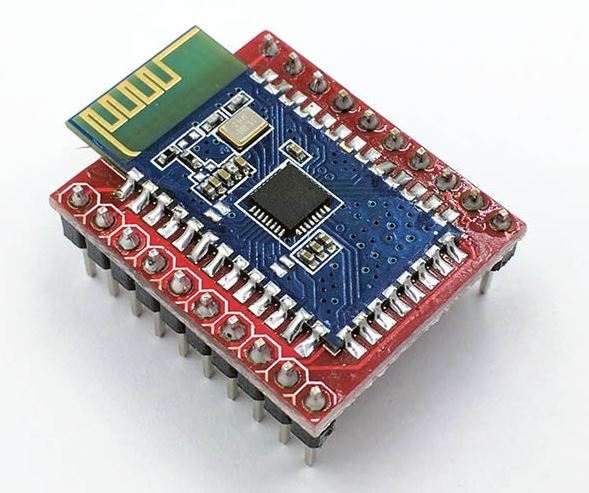

  • Compatible size, easily embedded to your project.

Usage:

  • Commands control to turn on / off GPIOs.
  • N3 turn pin 3 HIGH TTL
  • F3 turn pin 3 LOW TTL
  • Recommanded android SPP APP: Bluetooth SPP Pro

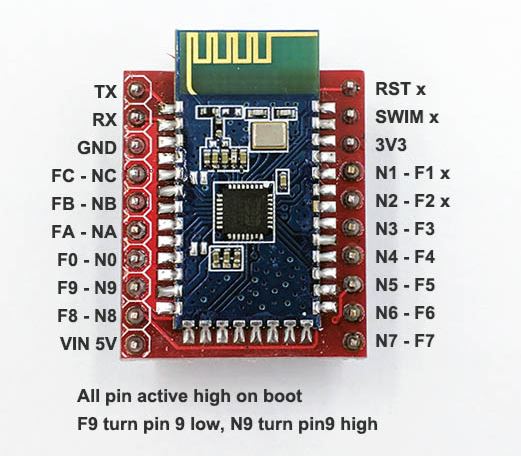

  • Supported pin 3 – pin 9, pin 0, pin A, pin B, pin C, totally 11 pins.

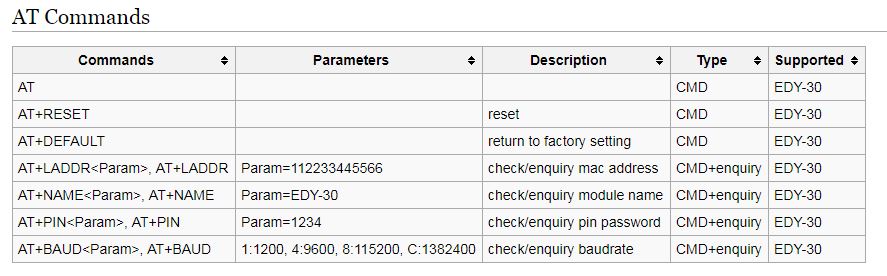

  • AT commands support when module NOT paired, when paired you can control IOs by commands.

Notice:

  • Please notice pin 1, pin 2 is not used, not same usage as other pins, better not use.

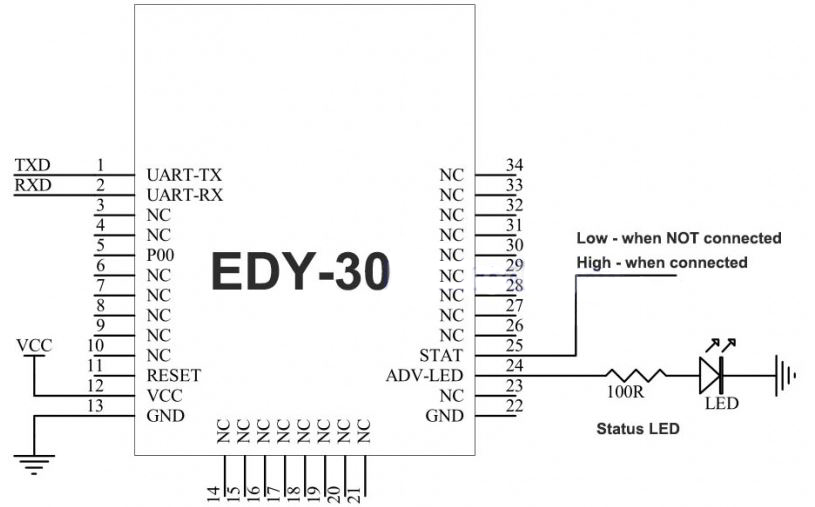

  • For your further programming in case, Bluetooth status pin (low when not paired, high when paired) is connected to pin 8 (PD3)
