LTE-M Antenna Kit
Antena externa LTE-M para ser utilizada junto a la placa de desarrollo FiPy y GPy.
COD: PY00009
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 27472.00
El producto no está disponible para la venta en este momento
Características
Description:

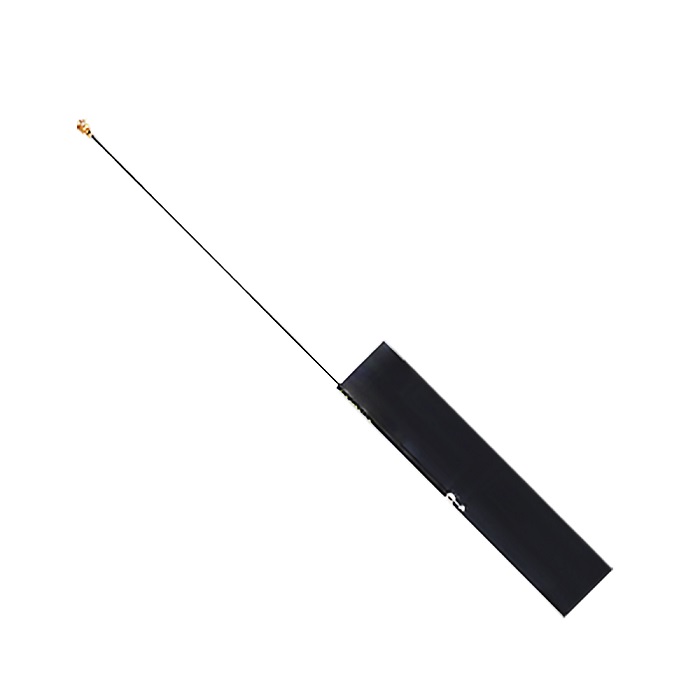

External LTE-M Antenna Kit for use with the FiPy and GPy development boards.
Specification:
- Lte band 28/38*2.
- Frequency: 703~803/2520~2620(MHz).
- Antenna size: 75 x 21 (mm).
- PCB 0.6 mm.
Low bands:
- (5, 8, 12, 13, 18, 19, 20, 28).
- Tx frequencies 699 to 915 MHz.
- Rx frequencies 729 to 960 MHz.
Mid bands:
- (1, 2, 3, 4).
- Tx frequencies 1710 to 1980MHz.
- Rx frequencies 1805 to 2170 MHz.
Additional information:
| Weight | 0.04kg |
|---|---|
| Dimensions | 7.5 x 2.1 cm |
| LoRa Antenna Kit |
External antenna |
