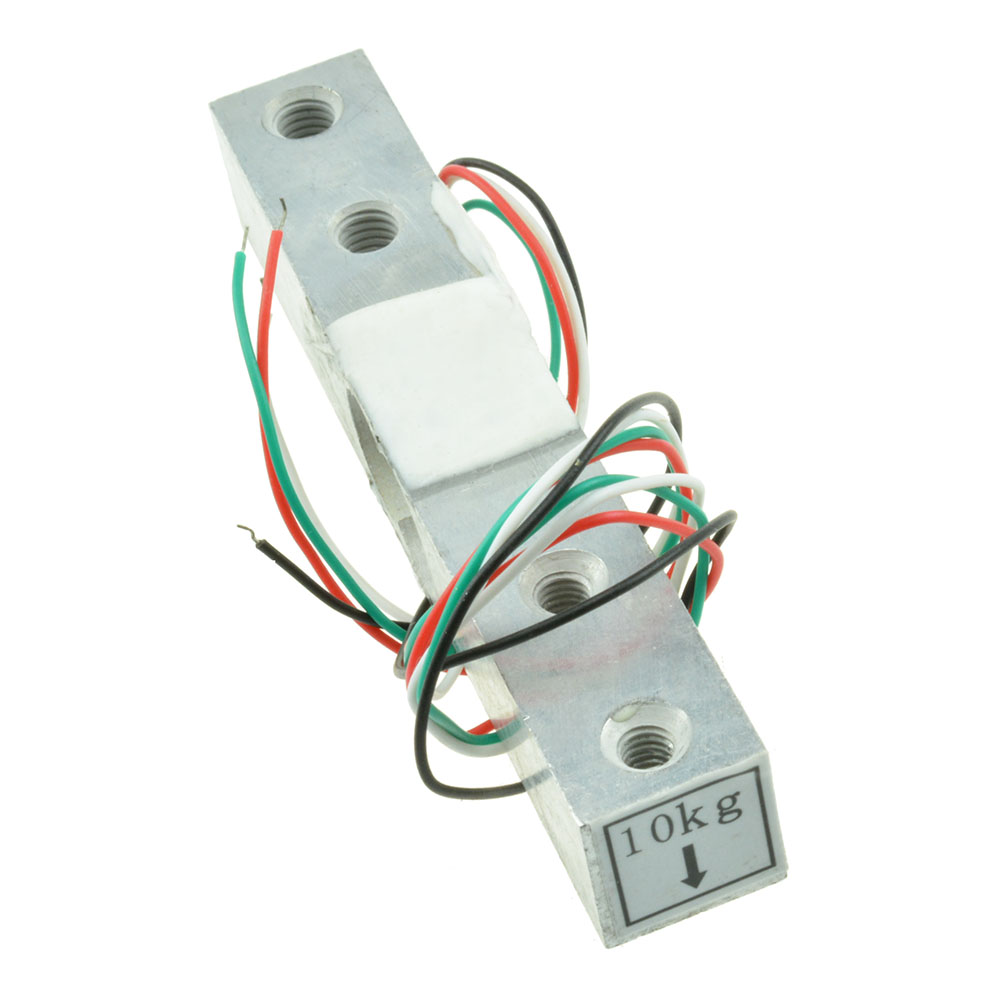

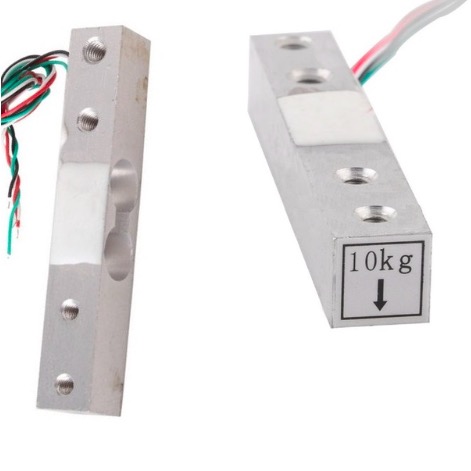

10KG Scale Load Cell
Celda de carga de 10KG.
COD: HTHR0502
Peso: 0.033 Kg
Disponibilidad: En Stock
ARS 7259.00
El producto no está disponible para la venta en este momento
Características
Feature:
- Model: YZC-133
- Rated Load: 10Kg /22lb
- Rated Output: 1±0.15mV/V
- Input Resistance: 1066 ± 20 Ohm
- Output Resistance: 1000 ± 20 Ohm
- Insulation Resistance: 2000 Ohm
- Working Temperature: -20°C~+65°C
- Compensated Temperature Range: -10°C~+50°C
- Safety Overload: 120%F.S
- Recommend Excitation Voltage: DC 5V
- Max Excitation Voltage: DC 10V
- Total Size: 81 x 12.5 x 12.5mm /3.1 x 0.5 x 0.5 inch (L*W*T)
- Thead Diameter: 3.4mm / 0.12 inch
- Hole Center Distance: 40mm / 1.6 inch, 70mm / 2.8 inch
- Cable Length: 240mm/ 9.4 inch
- Material: Aluminium Alloy
- Weight: 32g
Package included:
- 1 x Weighing Sensor
