Pololu Micro Metal Gearmotor Bracket Pair - Black
Este soporte compacto permite el montaje de los populares servomotores de la marca Pololu (10 mm × 12 mm × 26 mm). El soporte de plástico color negro protege los engranajes expuestos del servo e incluye los tornillos y tuercas para sujeción.
COD: P000989
Peso: 0.007 Kg
Disponibilidad: En Stock
ARS 9661.00
El producto no está disponible para la venta en este momento
Características
Description:

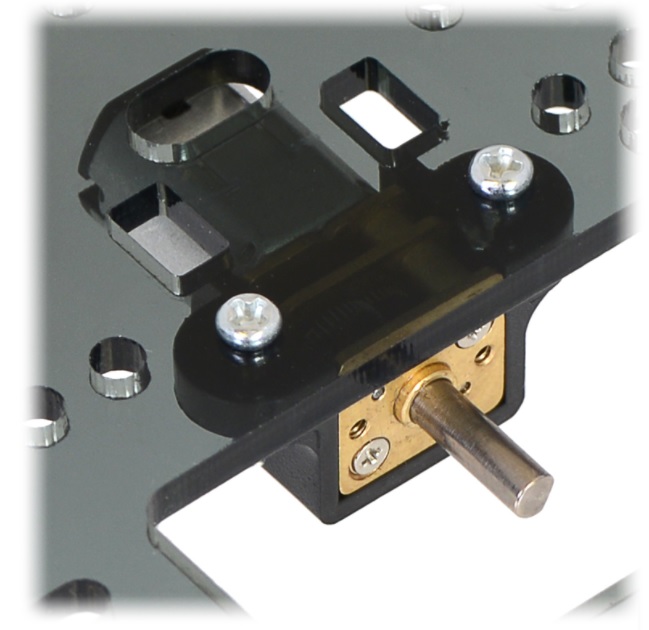

These plastic mounting brackets allow you to easily and securely mount the ubiquitous 10 mm × 12 mm × 26 mm metal gearhead motors first popularized by Sanyo’s 12GN series (e.g. NA1S…NA3S), such as our micro metal gearmotors.

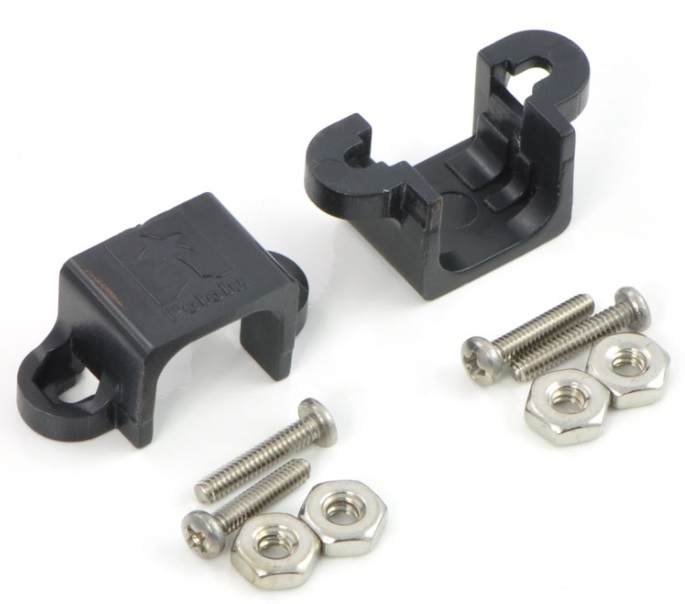

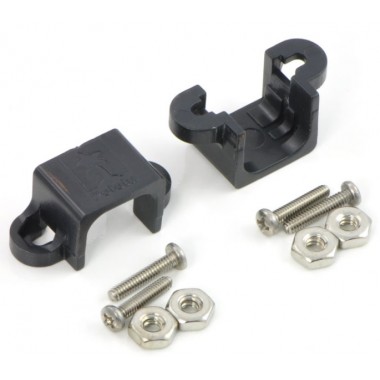

Four #2-56×7/16" screws and four nuts are included.
|
|
These brackets have mounting holes that are very close to the output shaft end of the motor, which could cause mounting difficulties if your wheels have recessed hubs like the Pololu Wheel 42×19 mm. For such applications we recommend the extended version of this bracket.

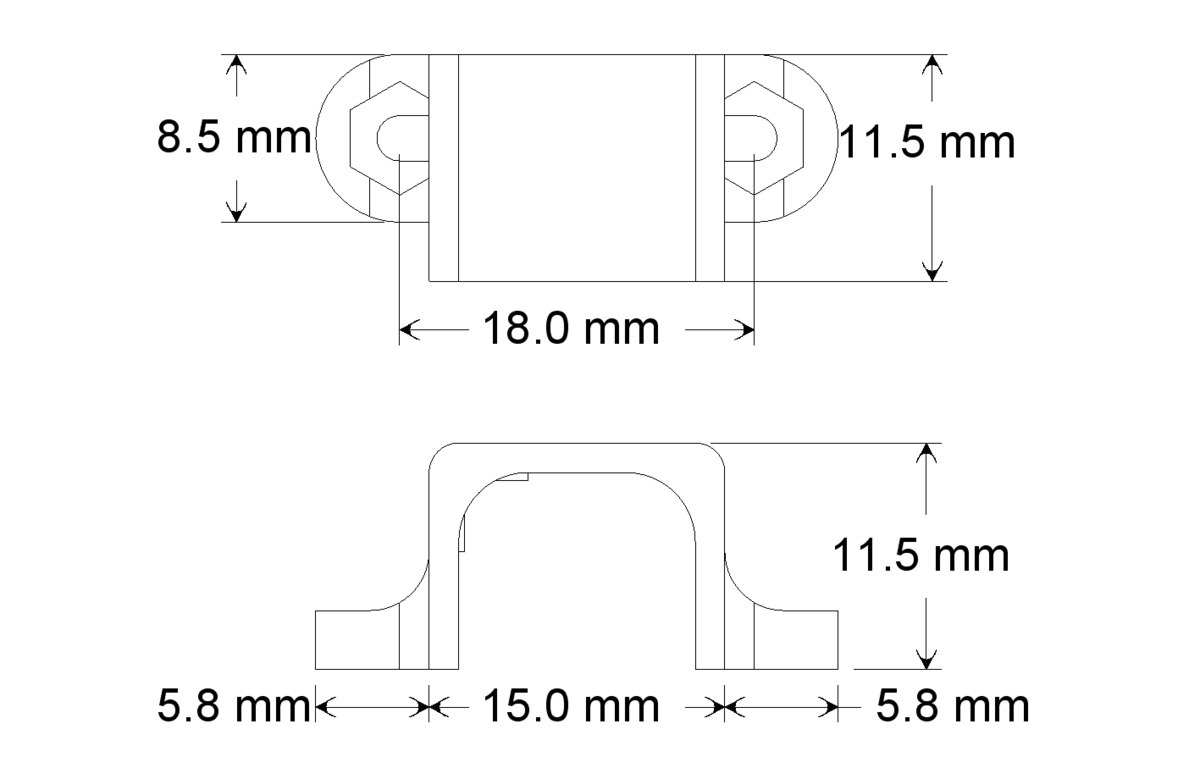

Dimensions:
Weight: | 0.7 g |
---|
General specifications:
Color: | black |
---|
