5.0 Mega Pixel Banana PI Camera Module

5.0 Mega Pixel Banana PI Camera Module

Cámara de 5MP para Banana Pi

COD: FUT9034

Peso: 0.050 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 48190.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

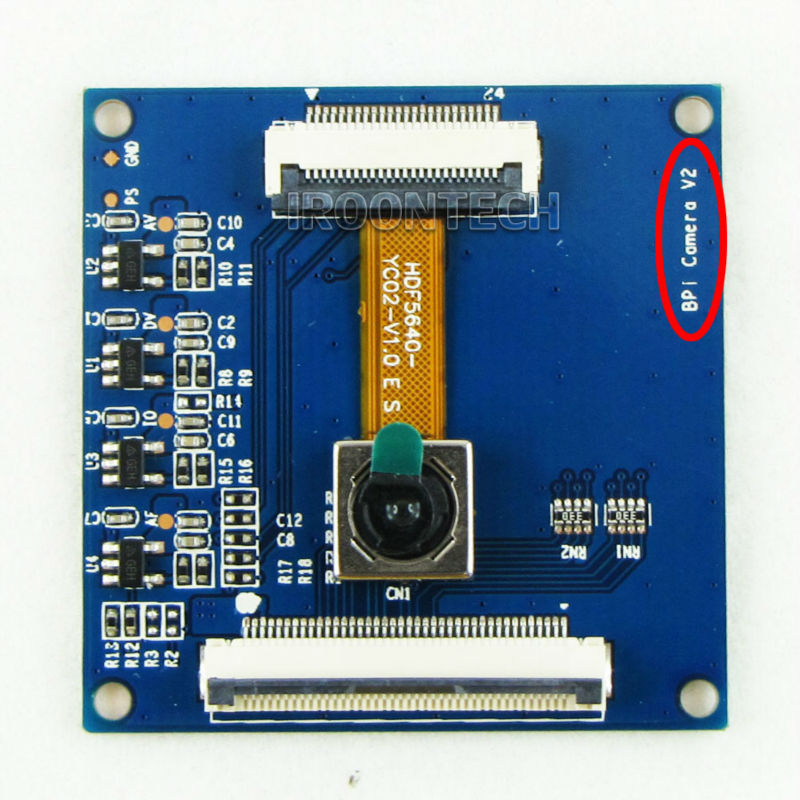

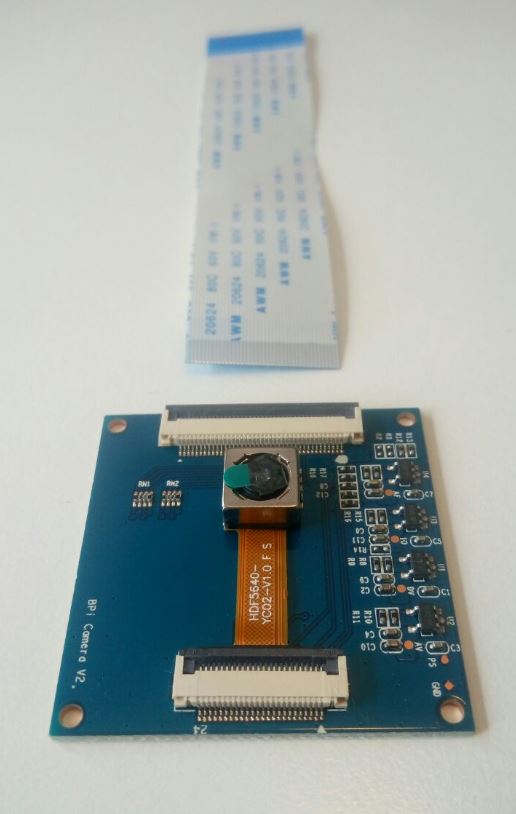

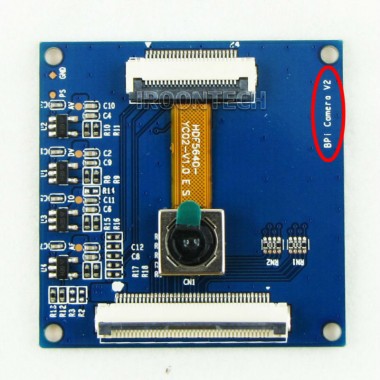

version 2.0 Banana PI Camera Module 5.0 Mega Pixel BPI Camera Module. OV5640 chipset, CSI connector

Applicable to:
-- BPI-M1 ;
-- BPI-M1+ ;
-- BPI-M2 ;

NOTE:
this camera can not be used for BPI-M3

product-description

Product Specifications:

Product Name

Banana PI Camera Module v2.0

Product Description

High definition camera module for BananaPi board via the CSI connector designed specifically for interfacing tocameras.Provide high sensitivity, low crosstalk and low noise image capture in a small and lightweight design.

Image sensor

Omnivision 5640 CMOS image sensor in a auto-fouces modules with integral IR filter (650±10nm)

Still resolution

5 Megapixels

Active array size

2592×1944

Max frame rate

1080P 30fps@24Mhz

Picture formats

JPEG  PNG  YUV420  RGB888

Video formats

Raw h.264

Connection to Banana Pi

40 Pin FPC to the Camera Sensor Interface(CSI-0)

Image control functions



Automatic exposure control (AEC)

Automatic white balance(AWB)

Automatic black level calibration(ABLC)

Automatic band filter

Mirror and flip

Temp range



Operating: -30°C to 70°C

Stable Image: 0°C to 50°C

Lens size

1/4″

Dimension

36×32×10mm

I2C address

0x78

Weight

8g

Banana pi CSI Camera Connector

The CSI Camera Connector is a 40-pin FPC connector which can connect external camera module with proper signal pin mappings.

4

Use Camera on Android4.2

The Android4.2 system for BPI has a Camera app, it can be used easily.

1.       Click the Applications icon.

1

2. Choose the Camera application.

2

3. Photo Mode.

3

4. Setting Icons and Change Mode Icons.

5

5. Video Mode.

6

6. Panorama Mode.

7

More informatin:

If you want to porting the camera ov5640 driver on others system.Here are some information you may need.

CON1 Mapping:

CSI Pin

Pin Name

GPIO

CON1 P01

LINEINL



CON1 P02

LINEINR



CON1 P03

VCC-CSI



CON1 P04

ADC_X1



CON1 P05

GND



CON1 P06

ADC_X2



CON1 P07

FMINL



CON1 P08

ADC_Y1



CON1 P09

FMINR



CON1 P10

ADC_Y2



CON1 P11

GND



CON1 P12

CSI-FLASH

PH17

CON1 P13

LRADC0



CON1 P14

TWI1-SDA

PB19

CON1 P15

LRADC1



CON1 P16

TWI1-SCK

PB18

CON1 P17

CSI-D0

PE4

CON1 P18

CSI0-STBY-EN

PH19

CON1 P19

CSI0-D1

PE5

CON1 P20

CSI-PCLK

PE0

CON1 P21

CSI-D2

PE6

CON1 P22

CSI0-PWR-EN

PH16

CON1 P23

CSI-D3

PE7

CON1 P24

CSI0-MCLK

PE1

CON1 P25

CSI-D4

PE8

CON1 P26

CSI0-RESET#

PH14

CON1 P27

CSI-D5

PE9

CON1 P28

CSI-VSYNC

PE3

CON1 P29

CSI-D6

PE10

CON1 P30

CSI-HSYNC

PE2

CON1 P31

CSI-D7

PE11

CON1 P32

CSI1-STBY-EN

PH18

CON1 P33

RESET#



CON1 P34

CSI1-RESET#

PH13

CON1 P35

CSI-IO0

PH11

CON1 P36

HPR



CON1 P37

HPL



CON1 P38

IPSOUT



CON1 P39

GND



CON1 P40

IPSOUT



Schematic diagram:
8
